Lotus Tangra L1F-RDT 1" Fixed Round Deep-Regressed LED Downlight | Thin Trim
Lotus Tangra L1F-RDT 1" Fixed Round Deep-Regressed LED Downlight | Thin Trim
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:L1F-RDT-WH-RC25-5C95
Quick choice: The Lotus Tangra L1F-RDT is a Canadian-made, 1-inch fixed round, deep-regressed, thin-trim architectural LED downlight designed for accent or general illumination with a small, low-glare aperture. Choose the exact finish, optic and CRI grade above; the selected variant determines the manufacturer SKU, barcode and price.
Verified at a glance: 5W fixture; up to 470 lumens at 4000K, CRI95; 24V DC constant-voltage input; five selectable CCTs (2700/3000/3500/4000/5000K); CRI95 or CRI98 by SKU; 25° or 40° optics; five trim finishes; 1-3/8-inch ceiling cutout; 3-inch space above ceiling. Compatible Lotus driver sold separately.
Choose the exact L1F-RDT configuration
Lotus lists 30 orderable manufacturer combinations, all represented by individual Shopify variants. Do not purchase by the L1F-RDT family name alone; finish, reflector, beam and CRI determine the specific SKU.

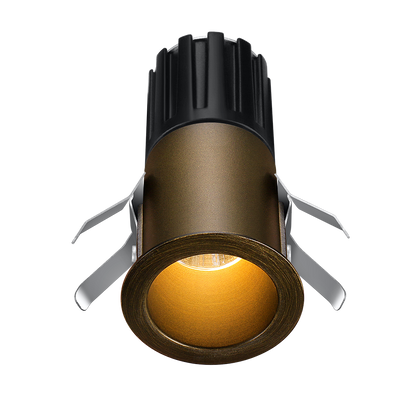

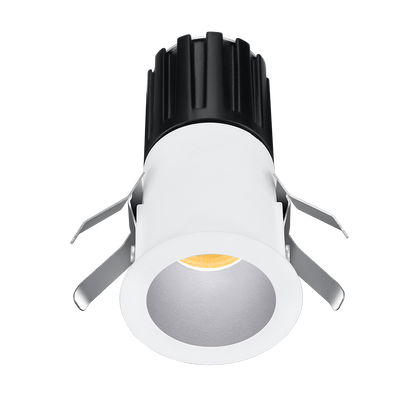

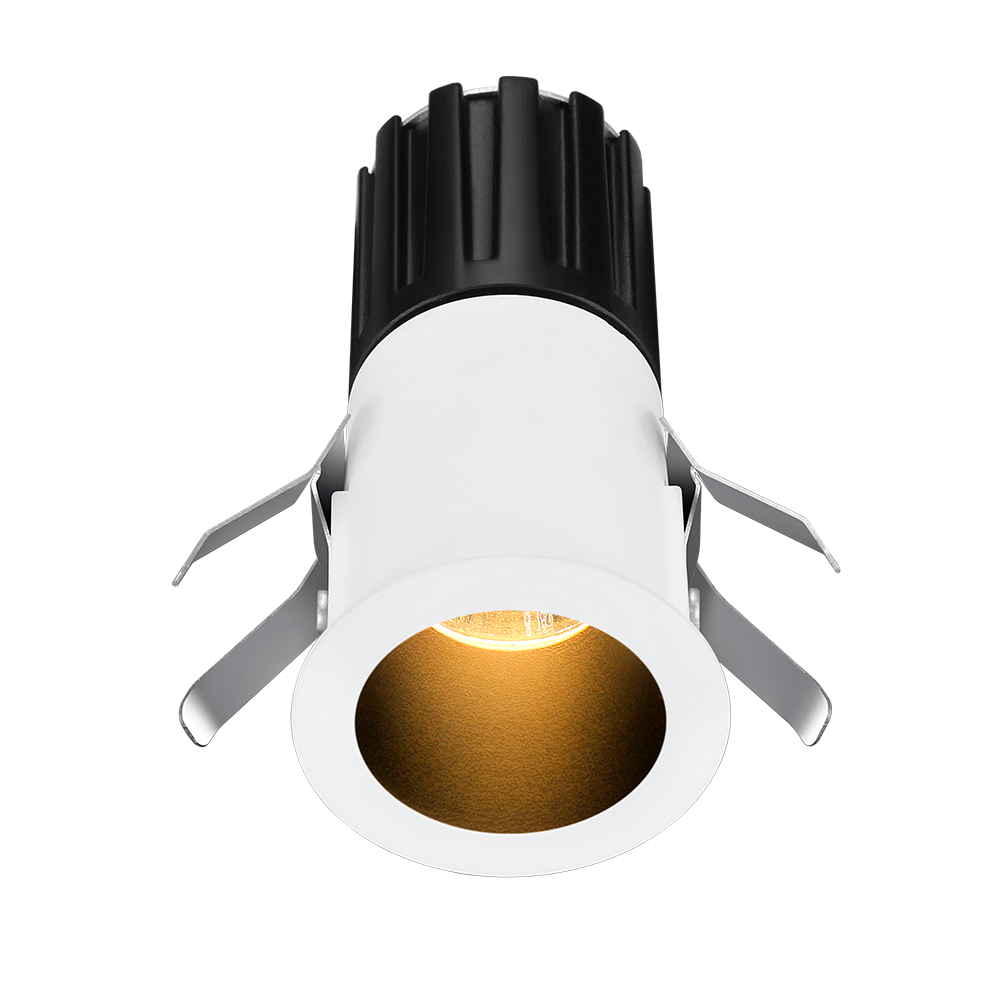

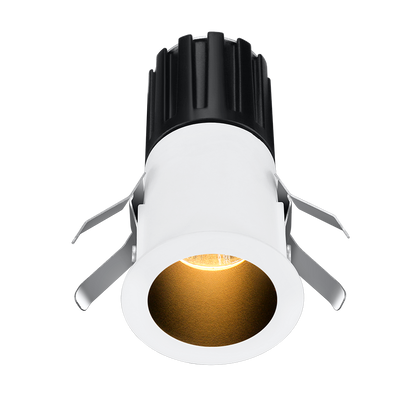

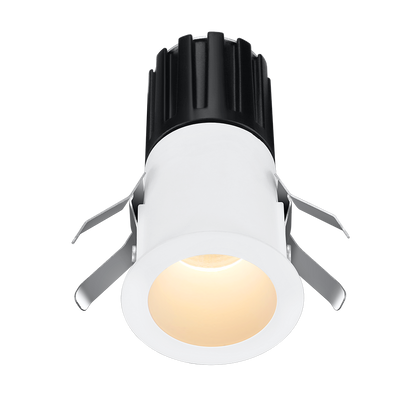

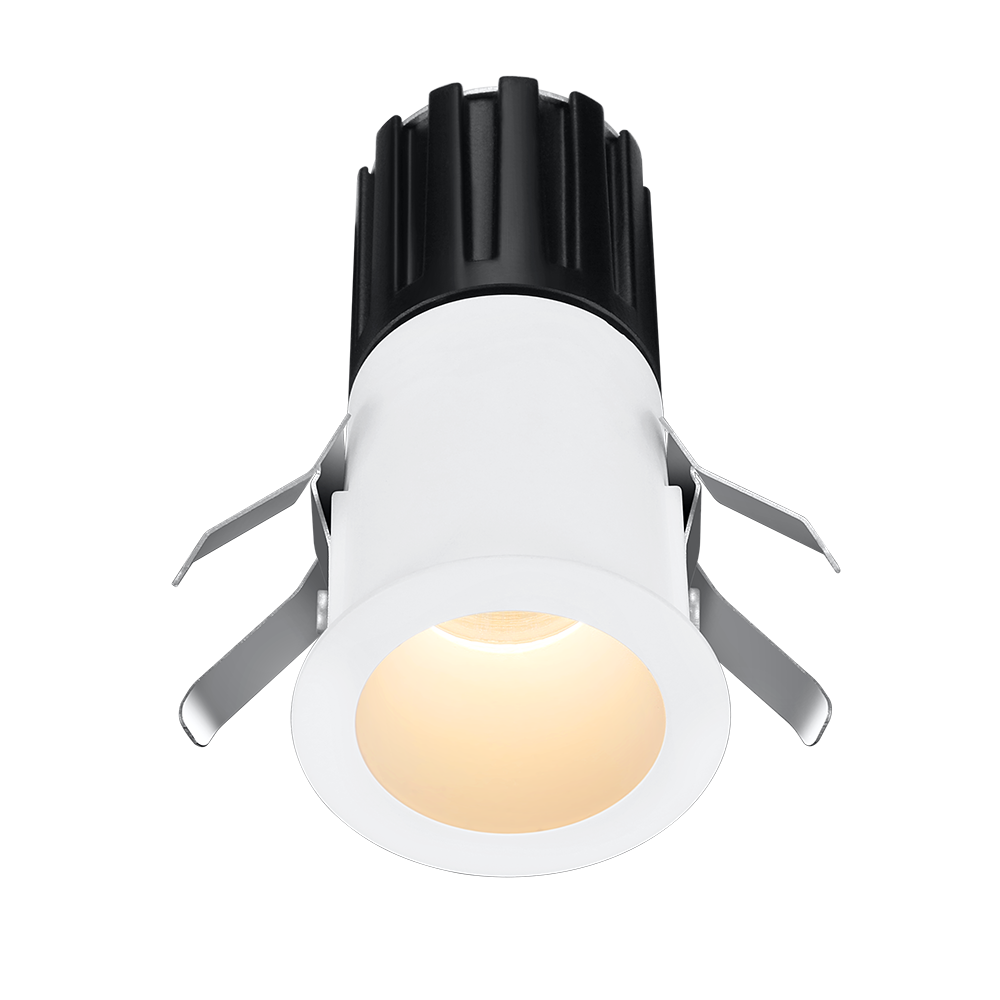

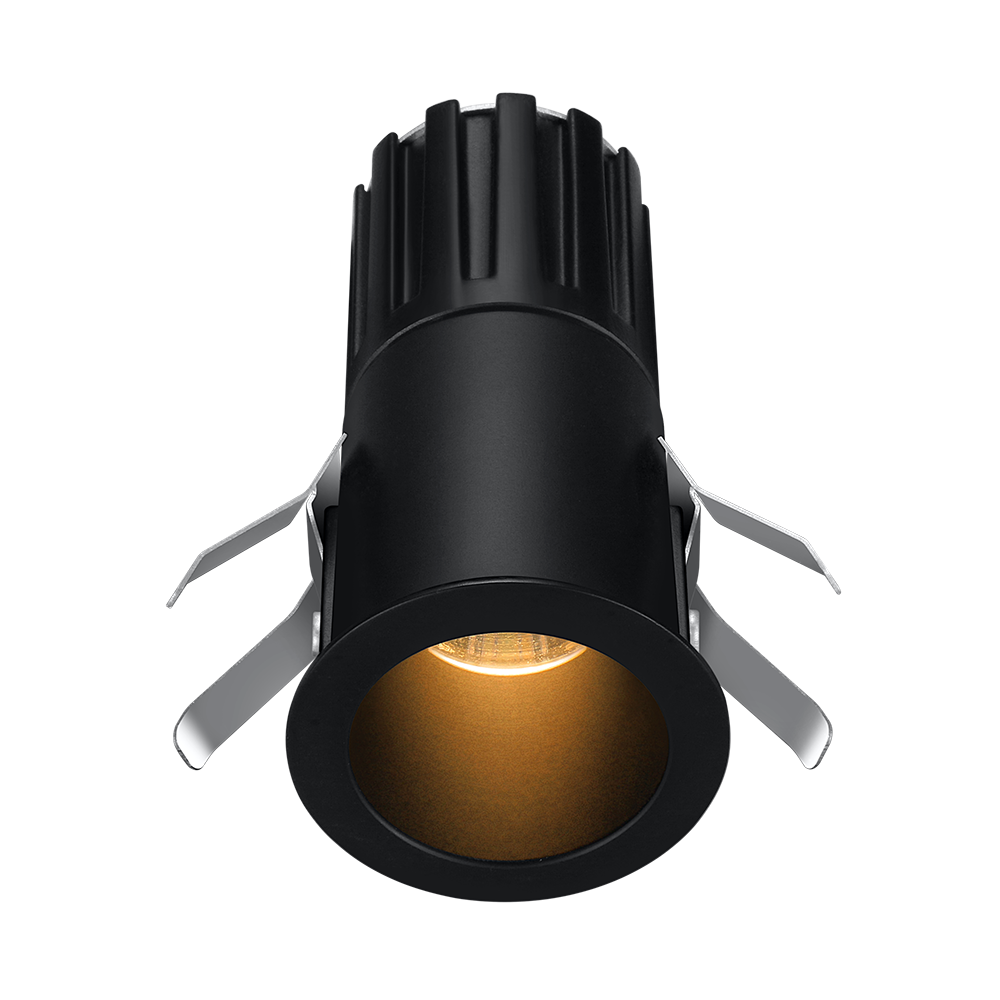

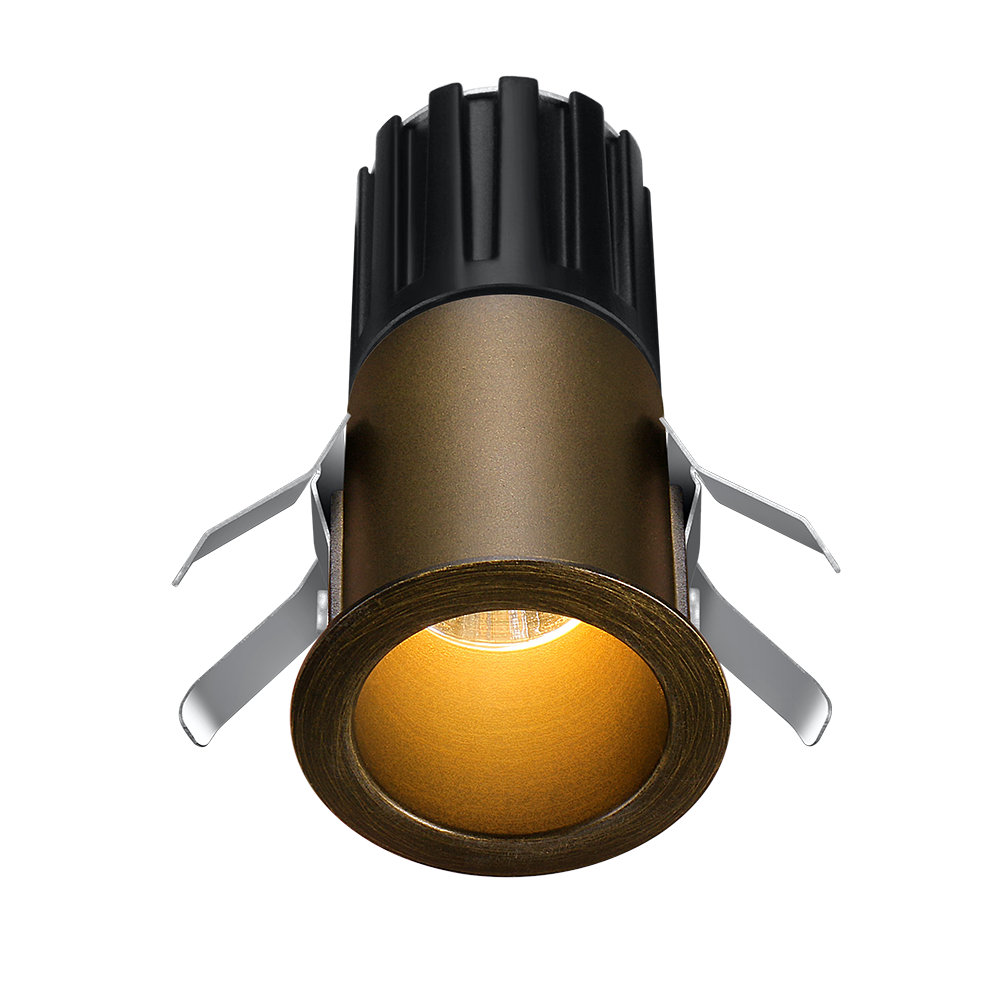

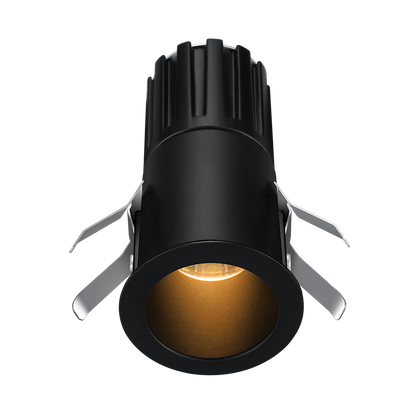

- Trim finish: White (WH), Black (BK), Oil Rubbed Bronze (BR), Alzak (AZ), or White/Black Duo (WB). The finish shown in the selected image is a visual reference; the SKU is the source of truth for ordering.
- Optic and nominal beam: RC25 = clear-glass reflector, 25°; RC40 = clear-glass reflector, 40°; RF40 = frosted-glass reflector, 40°. A frosted 25° option is not listed for this family.
- LED choice: 5C95 = five selectable CCTs, CRI95; 5C98 = five selectable CCTs, CRI98. CRI grade is tied to the variant, not one universal product-level value.
Selection guidance: Start with the architect's finish schedule, then choose 25° when a narrower beam is specified or 40° when a wider listed beam is required. Select clear or frosted reflector by the required appearance. Choose CRI95 or CRI98 as specified by the project. The model is fixed; choose a Tangra gimbal family if field aiming is required.
Verified manufacturer specifications
| Fixture model | Lotus L1F-RDT — Tangra 1-inch Fixed Round Deep Regressed Thin Trim |
|---|---|
| Fixture power | 5W |
| Fixture electrical input | 24V DC constant voltage; parallel daisy-chain installation |
| Maximum stated output | Up to 470 lumens at 4000K, CRI95; not a guaranteed value for every CCT, CRI or optical combination |
| Selectable CCTs | 2700K, 3000K, 3500K, 4000K and 5000K |
| Colour rendering | CRI95 or CRI98 depending on selected manufacturer variant |
| Nominal beam choices | 25° clear reflector; 40° clear or frosted reflector |
| Dimming | 100% down to 0.1% with Lotus-supplied compatible 5-in-1 dimmable drivers |
| Installation cutout | 1-3/8-inch round opening |
| Space above ceiling | 3 inches required per Lotus sheet |
| Fixture illustration | Approx. 1-1/2-inch trim outer diameter and 2-3/4-inch fixture height shown on manufacturer dimensional drawing; confirm job-site fit from the original drawing |
| Ambient operating range | -40°C to +45°C (-40°F to +113°F) |
| Rated life | L70: 50,000 hours (projected 70% light output) |
| Construction / origin | Solid cast aluminum body; made in Canada |
| Manufacturer-listed approvals | cETLus, FCC, Type IC, air tight, wet location. Confirm application-specific approvals with the current manufacturer sheet and local code |
| Warranty statement | Lotus states coverage for as long as it manufactures this line, plus five years; refer to the manufacturer's full terms and conditions |
Driver and dimming compatibility — sold separately
This is a 24V DC fixture, not a direct line-voltage downlight. Compatible Lotus Mini Tangra drivers accept 120-277V input and provide 5-in-1 dimming down to 0.1%, as listed in the L1F-RDT sheet. The separate driver is not included with a fixture SKU.
| Lotus driver SKU | Driver rating | Manufacturer maximum |
|---|---|---|
| KVE-24030-TMWJ1-VA | 30W | Up to 6 L1F-RDT fixtures |
| KVE-24060-TMWJ1-VA | 60W | Up to 12 L1F-RDT fixtures |
| KVE-24096-TMWJ1-VA | 96W | Up to 19 L1F-RDT fixtures |
These are Lotus's stated fixture-count limits for this exact model, not a substitute for the electrical design. Confirm allowable cable lengths, dimmer and control compatibility, wiring rules, installation topology and circuit requirements before ordering for a project.
Shop the matching Lotus Mini Tangra 24V driver family.
Cutout, rough-in plate and installation planning
The L1F-RDT specification explicitly calls for a 1-3/8-inch round fixture cutout and 3 inches of space above the ceiling. Verify those dimensions against the ceiling assembly and current installation instructions before cutting.
For preconstruction, Lotus lists the PR-138 accessory — a 26-inch flat rough-in plate. It is a separate product and the distributor's published order minimum is five pieces. See Lotus Mini Tangra rough-in plates; select PR-138.
The sheet lists Type IC, air-tight and wet-location suitability; it does not establish an open-plenum rating, an IP numeric grade, a fire-resistance duration or an installation-specific dimmer approval. Do not infer those from other Tangra products.
Which Lotus downlight should you choose instead?
- L1F-SDT: 1-inch fixed square deep-regressed thin-trim model.
- L1F-RDI: 1-inch fixed round invisible-trim alternative.
- L2F-RDT: 2-inch fixed round deep-regressed thin-trim model where a larger aperture is preferred.
- L2G-RRT or L2G-SRT: 2-inch gimbal families when directional aiming is required.
Frequently asked ordering questions
Is the driver included in the price?
No. Each L1F-RDT orderable SKU is a fixture configuration; a properly sized Lotus 24V 5-in-1 driver and any PR-138 rough-in plates are separate line items.
Is 470 lumens guaranteed for CRI98 or for every CCT?
No. The manufacturer's published up-to-470-lumen figure applies at 4000K and CRI95. Photometric output for CRI98 and other configurations must be confirmed separately if a lighting calculation depends on the precise number.
How do I verify the correct SKU for a project?
Choose trim finish, optic/beam and CRI in the variant picker, and use the resulting complete manufacturer SKU and UPC on drawings, quotations and purchase orders. The product photo alone does not identify the optical combination.
Is the fixture in stock and ready to ship?
Lotus's October 2026 new-products announcement indicated November 2026 as its planned stocking period. That announcement does not confirm Simply Controlled on-hand stock, current supplier availability or an exact shipping date.
Where can I check installation details and warranty?
Review the official L1F-RDT specification sheet and Lotus warranty information. Confirm the document revision and local electrical-code requirements for the final installation.
