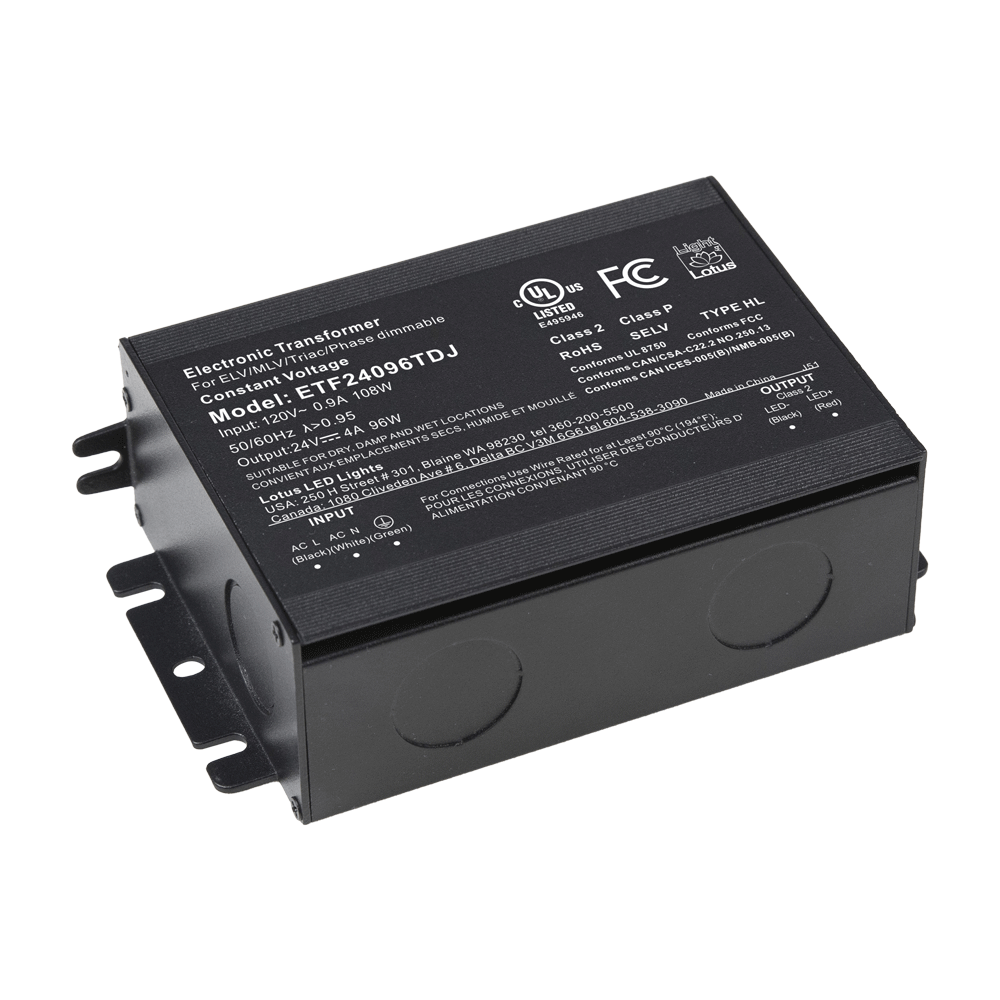

Lotus 24V DC 96W Electronic Transformer in J-box Triac Dim 120VAC | ETF24096TDJ

Power your 24V lighting the right way. The Lotus ETF24096TDJ is a 24V DC, 96W (4A) Class 2 constant-voltage electronic transformer housed in a junction boxideal for 24V LED tape and 24V ceiling/low-voltage fixtures where you want clean wiring and reliable dimming.

Why this transformer is a pro favourite

• Broad dimming support: TRIAC / ELV / MLV dimmable
• Install-friendly J-Box: separate compartments for line voltage and low voltage wiring
• Protection built in: short-circuit & overload protection with auto-recovery (hiccup mode)
• Code-friendly: cULus Listed (Class 2, Class P, Type HL)
• Location-rated: approved for dry, damp & wet locations

Key specs

• Input: 120V AC (47–63 Hz)
• Output: 24V DC ±1.5V, 4A
• Power: 96W
• Efficiency / PF: 88% @ 120V, PF 0.94
• Operating: -40°C to +60°C
• Dimensions: 5" × 3-1/4" × 1-5/8"

Important sizing note (prevents failures)

This transformer is designed for a 20%–80% load window. For reliability, size your lighting so the transformer runs at or below 80% max load (do not exceed 80%).

Best for: under-cabinet LED tape, millwork lighting, toe-kick runs, and 24V low-voltage fixtures where you want a clean junction-box install.
