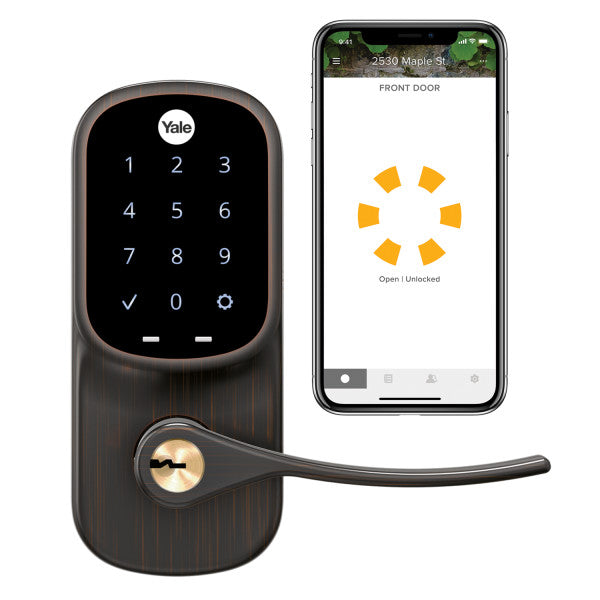

Yale Assure Lever Lock - Touchscreen - Keyed - Wi-Fi | YRL226-CBA

Yale Assure Lever Touchscreen with Wi-Fi is a fully connected, key-free smart lever lock designed for doors with a single bore—no deadbolt required. Perfect for side entry doors, garage entries, basements, offices, and interior access points, it replaces your existing lever or knob in minutes using just a screwdriver.

With built-in Wi-Fi and Bluetooth, the Assure Lever lets you lock and unlock your door, share access, and see who comes and goes—all from anywhere using the Yale Access app. No additional hub is required. For added convenience, the lock can automatically unlock as you arrive and relock after the door closes.

Key features

• Key-free touchscreen entry: Unlock using the backlit keypad or your smartphone—no keys needed for everyday use.
• Built-in Wi-Fi: Lock, unlock, manage users, and view activity remotely with the Yale Access app—no hub required.
• Auto-Unlock & Auto-Relock: Automatically unlock as you approach and relock after the door closes for hands-free convenience.
• Voice assistant compatible: Lock, unlock, or check status using Amazon Alexa, Google Assistant, or Siri.
• Flexible access sharing: Create permanent, scheduled, or temporary access for family, friends, or service providers.
• Perfect for single-bore doors: Designed for doors without a deadbolt.
• Never get locked out: Includes physical keys and a 9V emergency battery terminal for backup power.

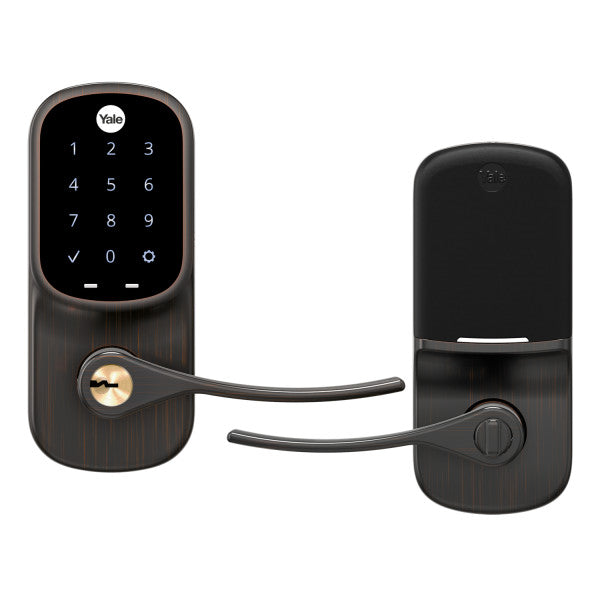

• Reversible handing: Fits both left- and right-handed doors.
• Backlit touchscreen: Easy to read at night with numbers that won’t wear off.
• Trusted Yale security: ANSI/BHMA Grade 2 certified and backed by Yale’s long-standing reputation.

What’s included

• Yale Assure Lever Touchscreen
• Yale Wi-Fi Smart Module
• Yale Connect Wi-Fi Bridge
• DoorSense sensor
• Latch and strike plate
• Mounting hardware
• Installation manual
• 4 × AA batteries
• 2 physical keys

Compatibility & installation

• Door prep: Single bore (no deadbolt)
• Door thickness: 1 3/8" to 1 3/4"
• Backset: 2 3/8" or 2 3/4"
• Handing: Reversible for left- or right-handed doors
• Requirements: Wi-Fi network, nearby power outlet for Wi-Fi bridge, Yale Access app

Specifications

• Finish: Oil Rubbed Bronze
• Connectivity: Wi-Fi and Bluetooth
• Security grade: ANSI/BHMA Grade 2
• Keyway: KW-1, 5-pin cylinder

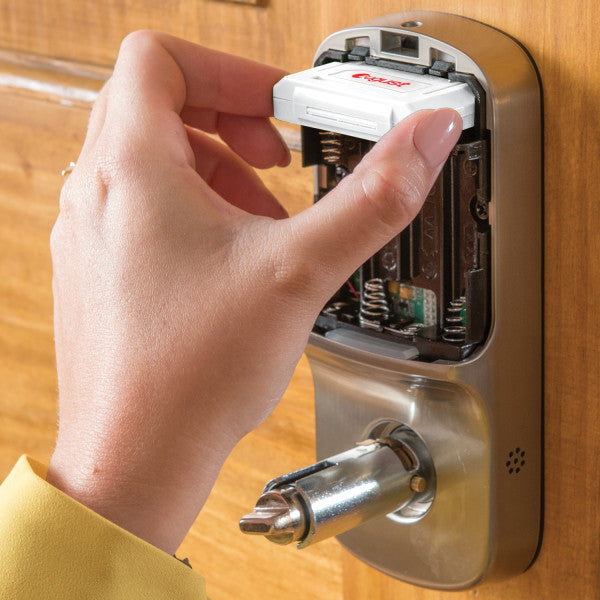

• Power: 4 × AA batteries with 9V emergency backup
• Warranty: Lifetime limited warranty on finish and mechanical; 1 year on electronics
