WhisperLine™ 340 CFM | FV30NLF1
WhisperLine™ 340 CFM | FV30NLF1
Vendor: Panasonic
SKU: FV30NLF1
Regular price
$257.99
Sale price
$257.99
Regular price
Unit price
/per
Shipping calculated at checkout.
In stock

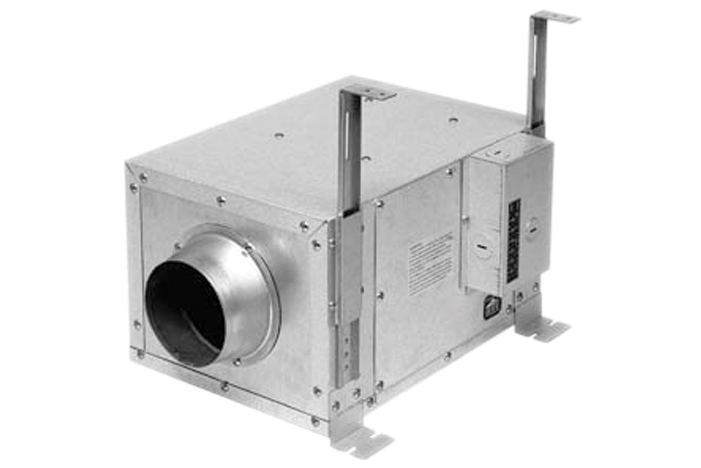

The WhisperLine® remote-mount, in-line fan is for single or multiple inlets. Its insulated housing prevents condensation and noise; the tapered 8” duct adapter provides an easy connection. It features five positions for installation. Joist or truss attachment brackets and suspension brackets are included. It can be used to comply with the latest codes and standards.
- Remote-mount, in-line fan for single or multiple inlets
- Insulated housing to prevent condensation and noise
- Tapered duct adapter for easy connection
- Five positions for installation
- Joist or truss attachment brackets included
| Model | FV-30NLF1 |
|---|---|
| Advanced Features | Single Speed |
| Air Volume Exhaust (CFM) | 330 @ 0.2" SP, 322 @ 0.3" SP, 302 @ 0.4" SP |
| Master Carton Dimensions (HxWxD) | 14-11/16 x 20-3/8 x 11-3/8 |
| CFM | Greater than 150 |
| Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
| Construction Type | Single Family/Manufactured Housing. Renovation/Remodeling. |
| Current (Amps) | 0.86A |
| Ventilation Design Approach | Spot Ventilation. Continuous Ventilation. |
| Duct Diameter |
6" |
| Energy Efficiency (CFM/Watt) | 3.2 CFM/W |
| ENERGY STAR® Certified | No |
| Fan Type | Fan Only |
| Industry | Residential. Light Commercial. |
| Motor Type (AC/DC) | AC |
| Mounting Options | Ceiling Mount |
| Power Consumption (Watts) | 340 @ 0.2" SP = 95.2W, 322 @ 0.3" SP= 93.5W, 302 @ 0.4" SP= 91.5W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperLine |
| Radiation Damper Available | No |
| Warranty | 3 Year on Parts |
| Master Carton Gross Weight (lbs.) | 19.1 |
