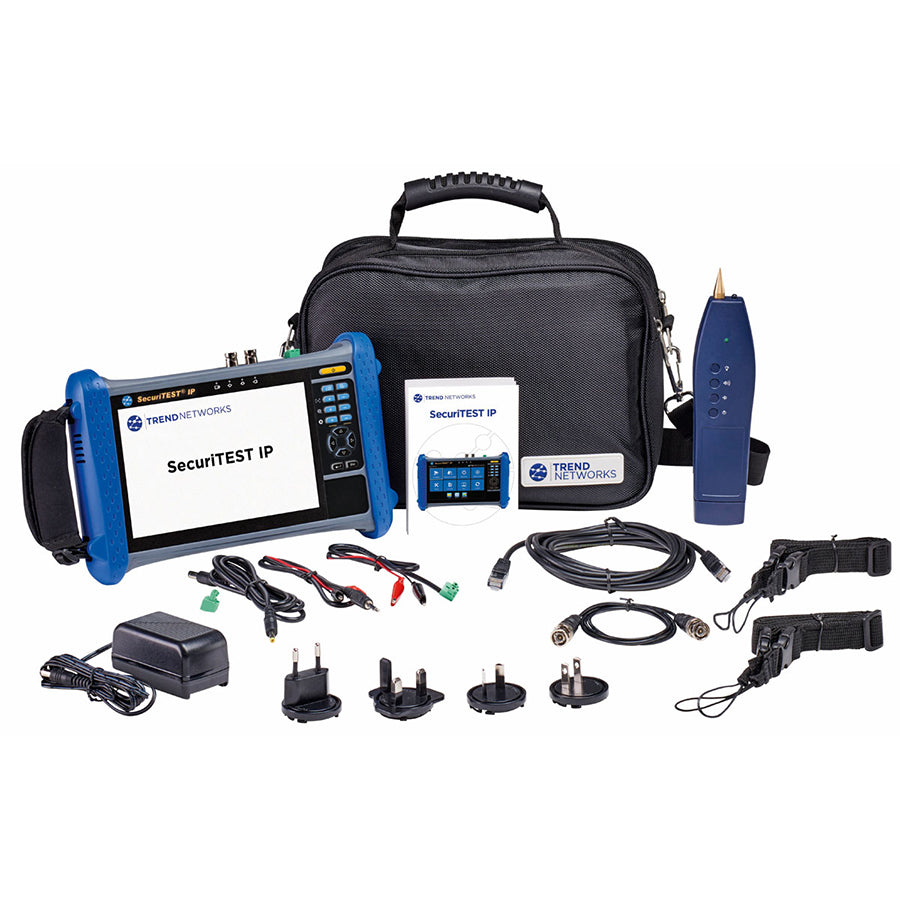

SimplyTEST SecuriTEST IP CCTV Tester — Digital/IP, Analog, HD-over-Coax | ST-171000

SimplyTEST SecuriTEST IP CCTV Tester — Digital / Analog / HD-over-Coax — ST-171000

The ST-171000 SecuriTEST IP is a professional all-format CCTV installation and troubleshooting tester for Canadian security integrators, low-voltage contractors, and IT teams managing physical security infrastructure. It tests IP cameras, traditional analog cameras, and HD-over-coax systems (AHD, TVI, CVI, CVBS) — covering the full range of camera types found on Canadian commercial, retail, institutional, and industrial sites.

Why Canadian Security Installers Carry This Tester

Camera system installations involve multiple failure points: cable continuity, PoE delivery, IP address conflicts, camera configuration, and video signal quality. The SecuriTEST IP consolidates these diagnostics into a single handheld unit — reducing call-back visits and speeding up commissioning on multi-camera commercial projects.

PTZ control allows the technician to verify pan, tilt, and zoom function during commissioning without returning to the NVR/DVR rack — a significant time saver on large-site deployments. The built-in IP discovery function finds and displays cameras on the network even without knowing their IP addresses in advance.

Key Features

• IP Camera Support — ONVIF protocol, IP discovery, live video display from IP cameras
• Analog & HD-over-Coax — AHD, TVI, CVI, CVBS (composite) signal testing and live display
• PoE Testing — PoE voltage and current measurement for IP camera circuits
• PTZ Control — Control pan, tilt, zoom and presets during commissioning
• Cable Testing — TDR-based cable fault location for coax and UTP
• Video Display — Built-in screen for live camera image verification
• Network Tools — Ping, IP configuration, DHCP test

Technical Specifications

Part Number	ST-171000
Brand	SimplyTEST (SimplyBRANDS)
Camera Systems Supported	IP (ONVIF), Analog, AHD, TVI, CVI, CVBS
IP Protocol	ONVIF, RTSP, HTTP
PoE Testing	Yes — voltage and current measurement
PTZ Control	Yes — ONVIF and coax PTZ
Cable Fault Location	TDR (UTP and coax)
Country of Origin	China
UPC	810093721191
Weight	5.2 lbs / 2.36 kg
Warranty	1 Year
HTS Code (Canada)	9030.31.0090

Frequently Asked Questions

Can the SecuriTEST IP work with modern 4K IP cameras?
Yes. The ST-171000 supports ONVIF protocol, which is the standard communication protocol for modern IP surveillance cameras including 4K/8MP models from major manufacturers.

Is the SecuriTEST IP useful for retrofitting analog systems to IP?
Yes — it's purpose-built for exactly this scenario. You can verify the existing coax infrastructure and then test the new IP cameras being added to the same installation.

Does this unit support RTSP stream viewing?
Yes. RTSP protocol is supported for live video display from IP cameras.
