SimplyTEST PoE PRO AnyWARE VDV II Verifier — PoE++ Load Testing up to 90W | ST-158006
SimplyTEST PoE PRO AnyWARE VDV II Verifier — PoE++ Load Testing up to 90W | ST-158006
Available to order — ships from incoming stock
Typically ships in 3–6 Business Days (Western Canada) · 4–8 Business Days (Eastern Canada)
SKU:ST-158006
SimplyTEST PoE PRO AnyWARE VDV II Verifier — PoE++ Load Testing to 90W — ST-158006
The ST-158006 PoE PRO is SimplyTEST's professional-grade voice, data, and video verifier with full Power over Ethernet (PoE++) load testing up to 90 watts. For Canadian commercial installers deploying 802.3bt PoE++ switches, high-power IP cameras, pan-tilt-zoom cameras, digital signage, and WiFi 6E access points — this is the tester that confirms the infrastructure can actually deliver the power the device needs.
Why PoE Load Testing Is Now a Job-Site Requirement
Modern 802.3bt (PoE++) devices — high-performance APs, PTZ cameras, video intercoms, and thin clients — draw up to 90W. A cable that passes wire map may still fail at load due to cable resistance, connector quality, or excessive run length. The ST-158006 applies a real load to the circuit and measures actual delivered wattage — identifying marginal drops before the device is installed and the customer calls with a complaint.
The 2.9-inch backlit display is readable in dark ceiling spaces and unfinished mechanical rooms — where most PoE troubleshooting happens on Canadian commercial job sites.

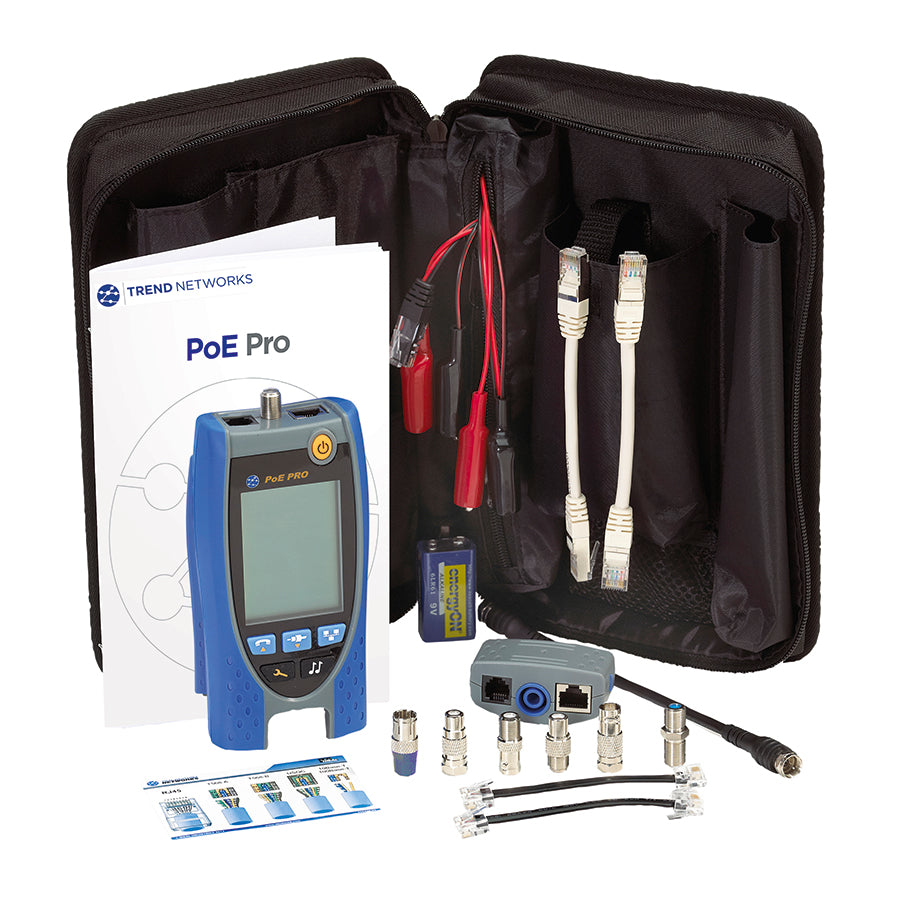

Kit Contents
- 1 × PoE PRO main unit (2.9" backlit display)
- 1 × Dual-port remote unit
- 1 × Coax remote unit
- 1 × Alkaline battery
- Carrying pouch
Technical Specifications
| Part Number | ST-158006 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Cable Types Tested | Cat5e, Cat6, Cat6A, Cat7, Coax |
| Test Functions | Wire map, continuity, short, open, miswire, crossed pair, split pair, PoE load |
| PoE Standard | IEEE 802.3af (15.4W), 802.3at (30W), 802.3bt (60W / 90W PoE++) |
| Max PoE Load Tested | 90W (PoE++) |
| Display | 2.9" large backlit LCD |
| Cloud Reporting | AnyWARE Cloud (PDF, included) |
| Remote Units Included | 1 × dual-port + 1 × coax |
| Country of Origin | Malaysia |
| UPC | 810093722631 |
| Weight | 2.2 lbs / 1.0 kg |
| Warranty | 2 Year |
| HTS Code (Canada) | 9030.89.3000 |
Frequently Asked Questions
What devices require PoE++ (802.3bt) testing?
High-power WiFi 6E access points (typically 25–30W), PTZ IP cameras (20–40W), video door stations, outdoor IP cameras with heaters, and some thin clients. Any device drawing over 30W requires an 802.3bt-capable switch and cable infrastructure that can deliver the power.
Does the ST-158006 certify the cable to TIA-568 standards?
No — the PoE PRO is a verifier that confirms wire map and PoE delivery, not a certifier. For full TIA-568 bandwidth certification (required on government and major institutional projects), see the SignalTEK CT (ST-156006) or SignalTEK NT (ST-156005).
Is this useful for a Canadian security integrator?
Yes. The coax remote and PoE++ load test make the ST-158006 the go-to tool for installers who work on both IP and analog/HD-over-coax camera systems in the same building.
