SimplyTEST VDV II Pro Data Cable Verifier with AnyWARE Cloud — ST-158005
The ST-158005 VDV II Pro is a professional-grade voice, data, and video cable verifier for Canadian network installers and IT contractors. It delivers wire-map verification for Cat5e, Cat6, Cat6A, and Cat7 structured cabling plus coaxial cables — and uploads results directly to AnyWARE Cloud for documentation, client reporting, and project record-keeping.

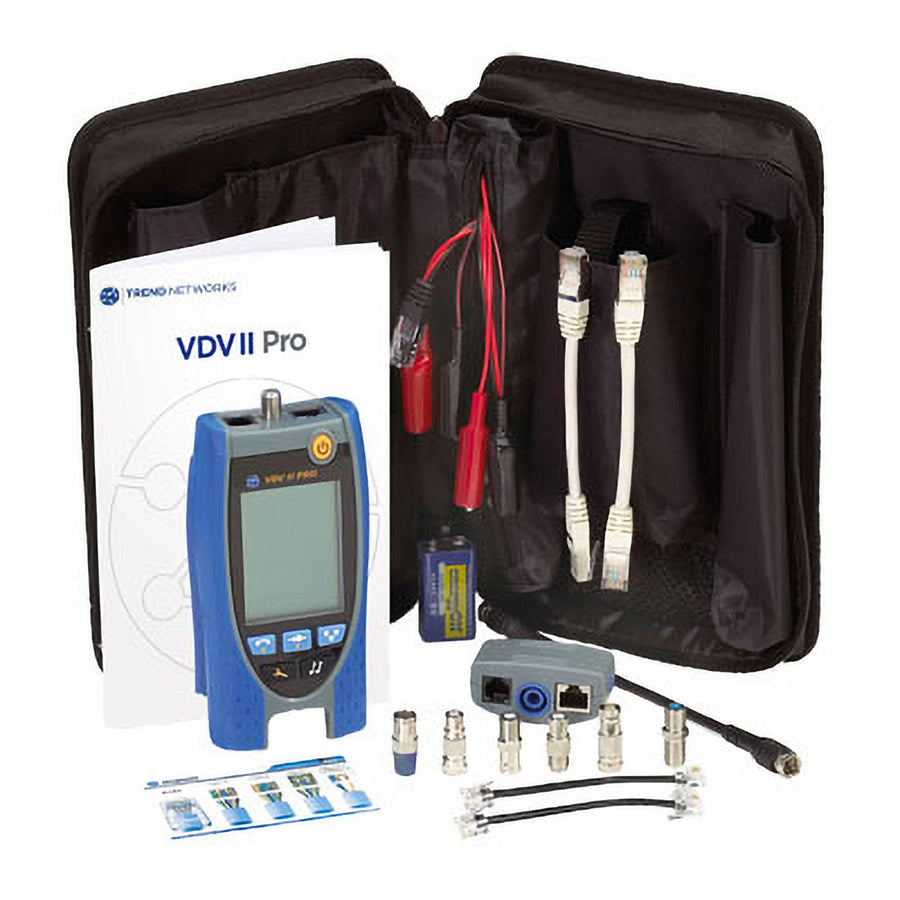

Kit Contents
- 1 × VDV II Pro main unit
- 1 × Dual-port remote unit
- 1 × Coax remote unit
- 1 × Alkaline battery set
- Carrying pouch
Key Features for Commercial Installers
AnyWARE Cloud Reporting — Generate professional PDF test reports and share results with project managers, building owners, or inspectors directly from the field. No desk required.
Wire Map Verification — Identifies opens, shorts, crossed pairs, split pairs, and miswires on RJ45-terminated structured cabling. Covers Cat5e through Cat7.
Coax Testing — Verifies coaxial cable continuity and shorts with the included coax remote — ideal for mixed-media commercial installations.
Dual-Port Remote — Test from both ends simultaneously. The remote clips to the far end while the tech works the main unit — no second person required on runs up to 100m.
Technical Specifications
| Part Number | ST-158005 |
| Brand | SimplyTEST (SimplyBRANDS) |
| Cable Types Tested | Cat5e, Cat6, Cat6A, Cat7, Coax |
| Test Functions | Wire map, continuity, short, open, miswire, crossed pair, split pair |
| Cloud Reporting | AnyWARE Cloud (PDF report export) |
| Remote Units Included | 1 × dual-port + 1 × coax |
| Country of Origin | Malaysia |
| UPC | 810093723769 |
| Weight | 1.72 lbs / 0.78 kg |
| Warranty | 1 Year |
| HTS Code (Canada) | 9030.89.3000 |
Frequently Asked Questions
Does the ST-158005 certify cabling to TIA-568 standards?
The VDV II Pro is a verifier, not a certifier. It confirms proper termination and wire mapping. For full TIA-568 certification (pass/fail bandwidth testing), see the SimplyTEST SignalTEK series (ST-156005, ST-156006).
Is AnyWARE Cloud included or a subscription?
AnyWARE Cloud reporting is included with the unit at no additional cost.
Can this test existing coax drops in a commercial building?
Yes. The included coax remote unit allows continuity and short verification on coaxial cable (RG-6, RG-59).
