SimplyFIBER SC/PC Multimode Mechanical Fiber Connector OM3/OM4 — 10 Pack | SF-SCPMM1-10
SimplyFIBER SC/PC Multimode Mechanical Fiber Connector OM3/OM4 — 10 Pack | SF-SCPMM1-10
Available to order — ships from incoming stock
Typically ships in 3–6 Business Days (Western Canada) · 4–8 Business Days (Eastern Canada)
SKU:SF-SCPMM1-10
SimplyFIBER SC/PC Multimode Mechanical Fiber Connector OM3/OM4 — 10 Pack — SF-SCPMM1-10

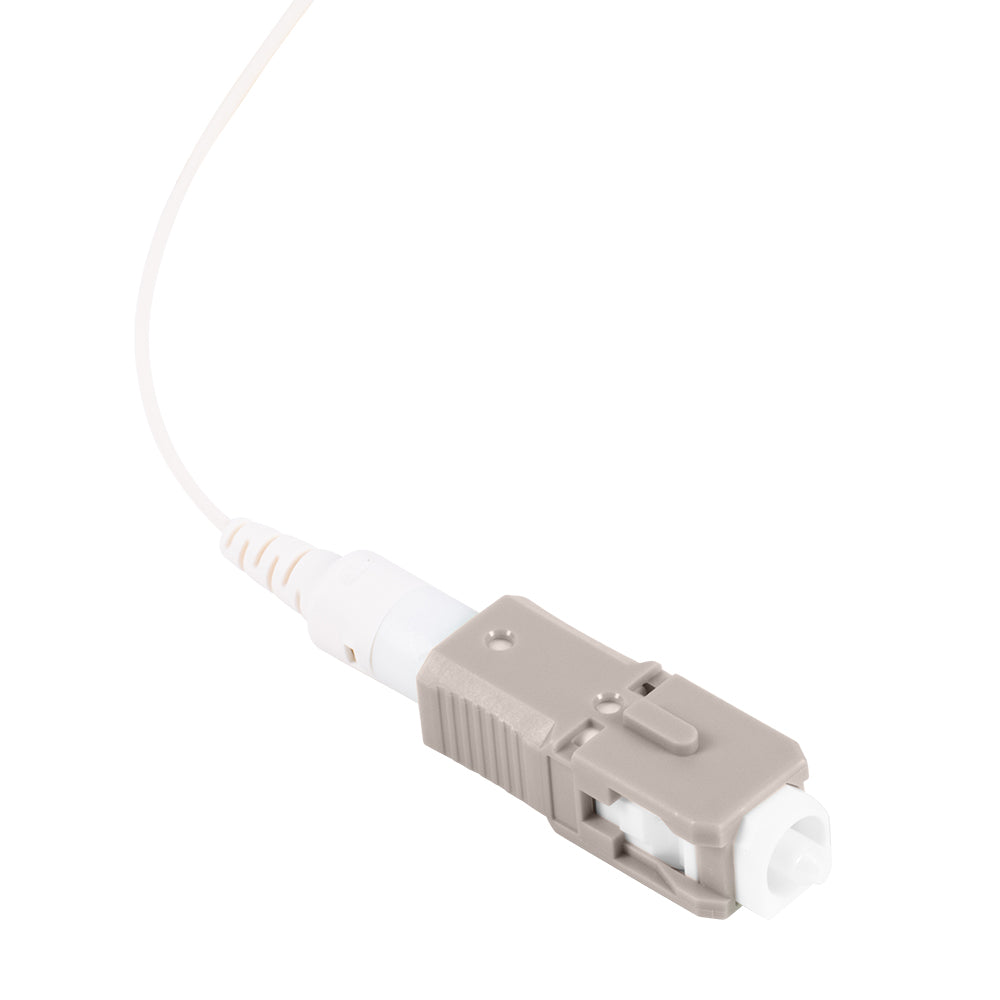

The SF-SCPMM1-10 is a 10-pack of professional SC/PC multimode mechanical fiber connectors with high-clarity index matching gel. Rated for OM3 and OM4 50µm multimode fiber. SC connectors remain the dominant fiber connector type in older Canadian commercial buildings, data centres, and telecom rooms — making the SF-SCPMM1-10 the right choice for extension, repair, and legacy-compatible installations.
SC vs LC — When to Choose SC
SC (Subscriber Connector) is a push-pull, snap-lock connector widely used in Canadian building infrastructure installed prior to 2015. LC (Lucent Connector) is the current standard for new high-density deployments. The SF-SCPMM1-10 is the correct choice when working with existing SC patch panels, SC-terminated backbone cables, or legacy active equipment with SC ports.
Technical Specifications
| Part Number | SF-SCPMM1-10 |
| Brand | SimplyFIBER (SimplyBRANDS) |
| Connector Type | SC/PC (Physical Contact) |
| Fiber Type | Multimode 50µm — OM3 / OM4 |
| Termination Method | Mechanical (field-installable, no fusion splicer) |
| Index Matching Gel | High-clarity gel included |
| Reusable | Yes |
| Quantity | 10 pc / bag |
| Colour | Beige (OM3/OM4 multimode) |
| Certification | cUL Listed (E520614) |
| Country of Origin | China |
| UPC | 810093724574 |
| Weight | 0.6 lbs |
| Warranty | Limited Lifetime |
| HTS Code (Canada) | 8536.70.0000 |
Frequently Asked Questions
Is the SF-SCPMM1-10 compatible with both OM3 and OM4 fiber?
Yes. The SC/PC mechanical connector supports 50µm multimode fiber in both OM3 and OM4 grades.
What is the insertion loss specification for the SF-SCPMM1-10?
SimplyFIBER mechanical connectors using index matching gel are rated for ?0.5 dB typical insertion loss — within the TIA-568 maximum of 0.75 dB per mated pair.
Can I use SC and LC connectors on the same fiber run?
SC and LC connectors use the same 125µm fiber but have different physical interfaces. SC-to-LC transitions require a hybrid patch cord or a coupler — not field-connectable directly.
