Monitor Audio SB-4 Passive Soundbar | SB4B
Monitor Audio SB-4 Passive Soundbar | SB4B
Available to order — ships from incoming stock
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:SB4B
MPN: SB4B
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

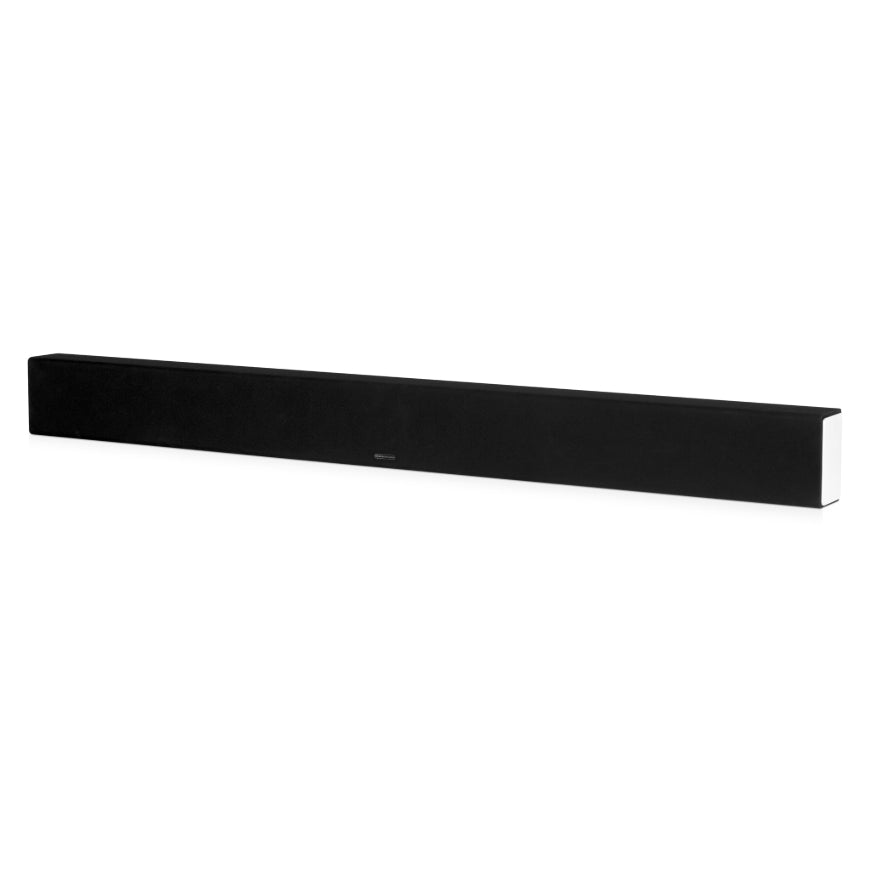

Monitor Audio SB-4 is the largest model in Monitor Audio's passive soundbar range: a three-channel Left / Centre / Right loudspeaker designed to create a visually balanced front soundstage with 70-inch screens and larger. It is sold as a single soundbar and requires external amplification for all three channels.
Each Left, Centre and Right channel uses two 4-inch C-CAM bass/mid drivers and two 1-inch C-CAM Gold Dome tweeters. Across the complete cabinet that means six bass/mid drivers and six tweeters, with Auxiliary Bass Radiator loading supporting the low-frequency system.
SB-4 at a glance
- Sold as: Single soundbar.
- System type: Passive 3-channel Left / Centre / Right loudspeaker.
- Amplification: External AV receiver or multichannel power amplifier required.
- Designed around: 70 in and larger displays.
- Per-channel active drivers: 2 × 4 in C-CAM bass/mid + 2 × 1 in C-CAM Gold Dome tweeters.
- Total active drivers: 6 × 4 in bass/mid + 6 × 1 in tweeters.
- Cabinet: Internally braced MDF with through-bolt driver fixing.
- Mounting: Furniture placement, SANUS-compatible mounting points or optional Monitor Audio wall bracket.
- Finish: Black cloth grille.
- Warranty: Lifetime.
Passive L/C/R loudspeaker — not a powered HDMI soundbar
SB-4 is a passive loudspeaker system. It does not include built-in power amplification, HDMI/eARC connectivity, wireless audio electronics or surround decoding. The Left, Centre and Right sections remain discrete channels and must be connected to the corresponding amplified outputs of an AV receiver or suitable multichannel amplifier.
This makes SB-4 functionally equivalent to three separate passive front speakers consolidated into one low-profile cabinet—not a powered consumer-TV soundbar.
Twin drivers and twin tweeters on every channel
SB-4 uses the same active-driver complement for all three front channels:
| Channel | Bass / mid drivers | Tweeters |
|---|---|---|
| Left | 2 × 4 in C-CAM | 2 × 1 in C-CAM Gold Dome |
| Centre | 2 × 4 in C-CAM | 2 × 1 in C-CAM Gold Dome |
| Right | 2 × 4 in C-CAM | 2 × 1 in C-CAM Gold Dome |
The symmetrical channel architecture distinguishes SB-4 from SB-3, where the centre channel receives additional bass/mid capacity relative to Left and Right.
MDF cabinet and through-bolt driver construction
Monitor Audio specifies an MDF cabinet with internal bracing. The drivers use single through-bolt fixing, which mechanically clamps the driver assembly through the cabinet rather than relying only on front-baffle screws.
The SB-4 also uses dedicated crossover networks and Auxiliary Bass Radiator loading. Monitor Audio publishes a 70 Hz–30 kHz response at -3 dB.
Subwoofer and high-pass configuration
Monitor Audio specifically designs SB-4 to work with a partnering subwoofer and bass management when greater low-frequency extension and system power handling are required.
| Power handling | 80 W RMS |
|---|---|
| System power handling | 100 W RMS with a high-pass filter set to 100 Hz |
The 100 W figure is conditional on the 100 Hz high-pass filter. Monitor Audio publishes an 80–120 Hz crossover range. The final crossover should be set in the AV receiver / processor for the actual subwoofer, room and installation.
Amplifier matching
SB-4 is specified at 8 ohms nominal with a recommended amplifier requirement of 30–100 W. All three channels require their own amplified signal.
The current manufacturer page does not publish a minimum-impedance figure, so one is not inferred.
Audio specifications
| System configuration | 3-channel passive soundbar — Left / Centre / Right |
|---|---|
| Frequency response | 70 Hz–30 kHz (-3 dB) |
| Sensitivity | 87 dB (1 W @ 1 m) |
| Maximum SPL | 104 dBA; 108.8 dBA with all channels driven |
| Nominal impedance | 8 ohms |
| Minimum impedance | Not stated by the current manufacturer source |
| Power handling | 80 W RMS |
| System power handling | 100 W RMS with 100 Hz high-pass filter |
| Recommended amplifier power | 30–100 W |
| Published crossover range | 80–120 Hz |
| Bass alignment | Auxiliary Bass Radiator (ABR) loading |
Installation and connection design
SB-4 uses high-quality low-profile binding posts recessed into the rear terminal panel. The recessed layout helps maintain shallow wall clearance rather than forcing standard protruding terminals directly against the mounting surface.
The terminal panel also includes standard fixing points designed for SANUS TV mounting systems. Monitor Audio separately supports its low-profile BSB soundbar wall bracket, which provides cable access, pre-alignment and a fixing template. Integrated low-profile silicone rubber feet support furniture / cabinet-top placement.
Current Canadian commercial data separately references BASB2 for the SB-2 / SB-3 / SB-4 bracket relationship and confirms that the wall bracket is not included with the standard soundbar.
SB-4, SB-3 or SB-2?
| Decision point | SB-2 | SB-3 | SB-4 |
|---|---|---|---|
| Display guidance | 50–60 in | Above 60 in | 70 in and larger |
| Cabinet width | 1110 mm | 1310 mm | 1562 mm |
| Total 4 in bass/mid drivers | 3 | 4 | 6 |
| Total 1 in tweeters | 3 | 3 | 6 |
| Frequency response | 90 Hz–30 kHz | 80 Hz–30 kHz | 70 Hz–30 kHz |
| RMS handling | 40 W | 40 W L/R; 80 W Centre | 80 W |
The three models share the same passive L/C/R system concept but target different physical screen widths and driver / output requirements.
Dimensions and weight
| Cabinet dimensions including feet (H × W × D) | 145 × 1562 × 89 mm |
|---|---|
| External dimensions including bracket (H × W × D) | 145 × 1562 × 100 mm |
| Product weight | 12 kg / 26 lb 7 oz |
| Approved packed dimensions | 10 × 66 × 8 in (source labels H × L × W) |
| Approved packed weight | 33 lb / approximately 14.97 kg |
Product identification
| Model | Monitor Audio SB-4 |
|---|---|
| SKU / MPN | SB4B |
| GTIN-13 | 5060028970247 |
| Finish | Black cloth grille |
| Sold as | Single unit |
Warranty
Monitor Audio's current product page supports a Lifetime Warranty for SB-4. This current term supersedes older internal material that listed a shorter warranty.
