SKU:LED-1-S6W-30K-T1-R-WH
LED-1-S6W | 2" Mini Recessed LED 24V AC/DC 6W
The Lotus LED-1-S6W is a compact 2-inch mini recessed LED fixture designed for displays, cabinets, soffits, solar applications, and tight-space accent lighting. Its small aperture, die-cast aluminum housing, and interchangeable round or square trims make it a flexible solution where a clean recessed look is required but ceiling or millwork space is limited.
Operating on 24V AC/DC, this 6W mini recessed fixture delivers 480 lumens at 3000K with CRI 90+ color quality and a standard 38° beam angle. It can be connected by daisy-chained low-voltage cable to a remote mounted Class 2 power supply or compatible solar inverter, with dimming handled through external 24V drivers.
Why this fixture sells
- Ultra-compact recessed format: ideal for cabinets, displays, soffits, and mini recessed applications
- 24V AC/DC input: works with remote Class 2 power supplies or compatible solar inverter systems
- High-output small aperture: 480 lumens while using only 6W
- High color accuracy: CRI 90+ for clean, accurate light quality
- 35W halogen equivalent: efficient LED replacement for small accent fixtures
- Interchangeable trims: round or square trims in white or black, with 1/8" and 1/4" trim options
- No junction box needed: internal terminal block simplifies low-voltage installation
- Type IC rated: no recessed housing required
- Air-tight and damp location approved: suitable for insulated ceilings and damp-location applications
- Limited-space friendly: 2 7/8" fixture depth with 3" ceiling clearance required
Recommended applications
- Display lighting
- Cabinet lighting
- Mini recessed accent lighting
- Soffits
- Solar-powered lighting systems with compatible inverter
- Millwork and built-in lighting
- Small aperture task lighting
- Residential and light commercial accent lighting
Key specifications
| Model Family | LED-1-S6W |
|---|---|
| Fixture Type | 2" Mini Recessed LED 24V AC/DC |
| Applications | Displays, cabinets, mini recessed, soffits, solar |
| Energy Used | 6 W |
| Color Temperature | 3000K |
| Light Output | 480 lm |
| Halogen Equivalent | 35 W |
| Beam Angle | 38° standard; 24° available as adder |
| CRI | 90+ |
| Fixture Input | 24V AC / DC |
| Dimming | Dimmable with external 24V drivers |
| Approved Location | Insulated Ceiling & Damp Locations |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 1 15/16" ID, 2 7/8" depth |
| Cut Out | 2" |
| Outside Diameter | 2 1/4" with 1/8" trim; 2 1/2" with 1/4" trim |
| Ceiling Clearance Required | 3" |
| Mounting Surface Thickness | 1/8" to 1 1/2" |
| Certification | cETLus |
| Warranty | 3 Year when installed with a Lotus LED Lights driver |
Available models

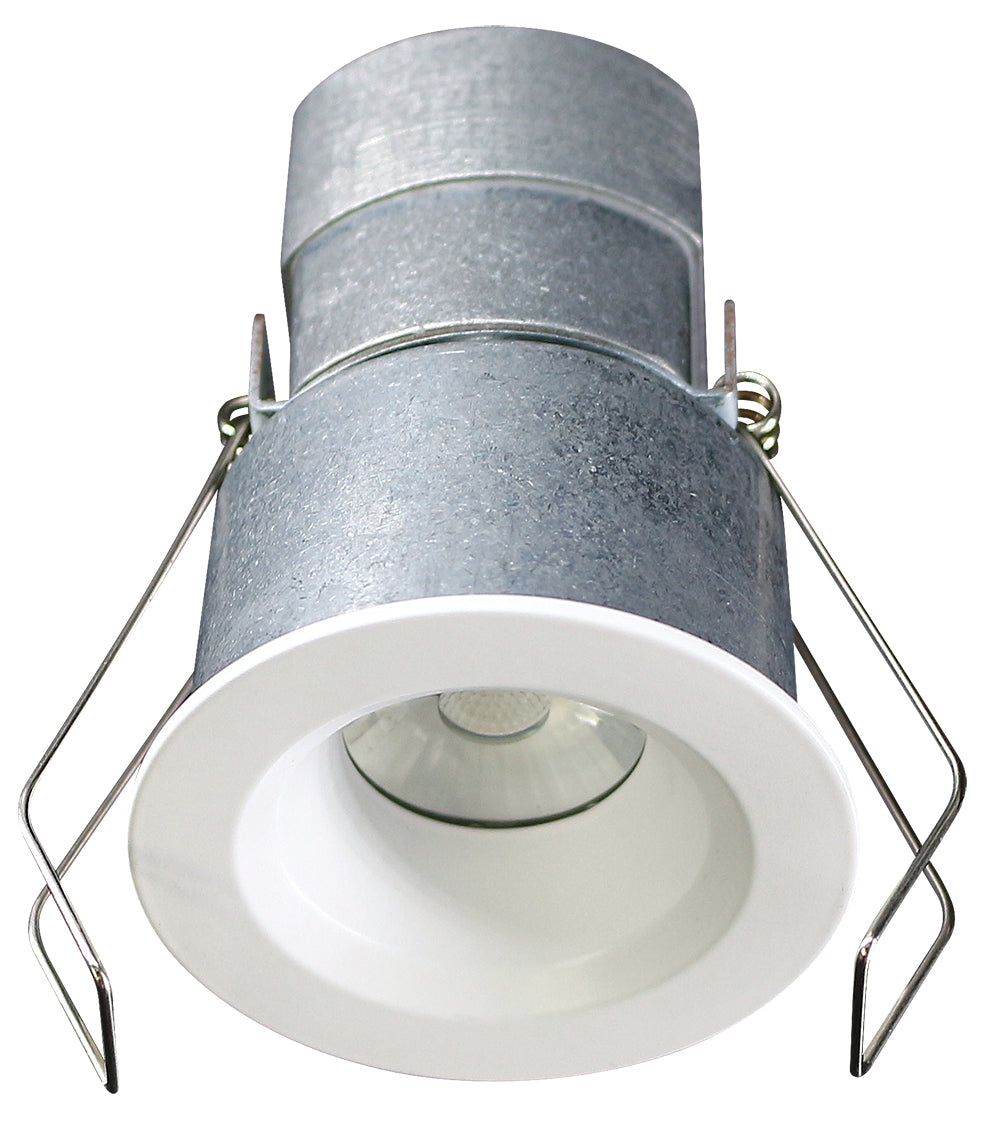

- LED-1-S6W-30K-T1-R-WH: 3000K, Round White 1/8" trim

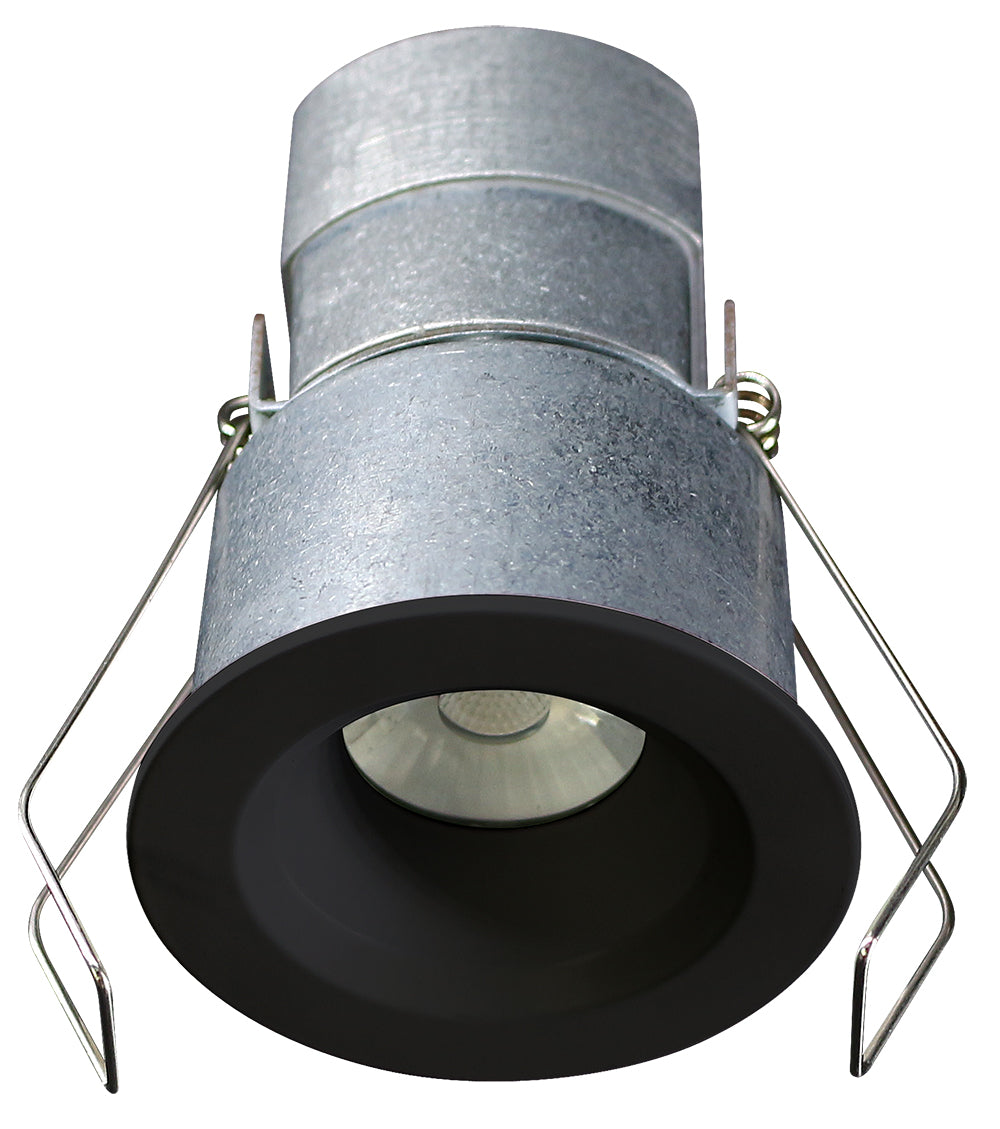

- LED-1-S6W-30K-T1-R-BK: 3000K, Round Black 1/8" trim
- LED-1-S6W-30K-T1-S-WH: 3000K, Square White 1/8" trim
- LED-1-S6W-30K-T1-S-BK: 3000K, Square Black 1/8" trim
- LED-1-S6W-30K-T1-12WD-R-WH: 3000K, Round White 1/4" trim
- LED-1-S6W-30K-T1-12WD-R-BK: 3000K, Round Black 1/4" trim

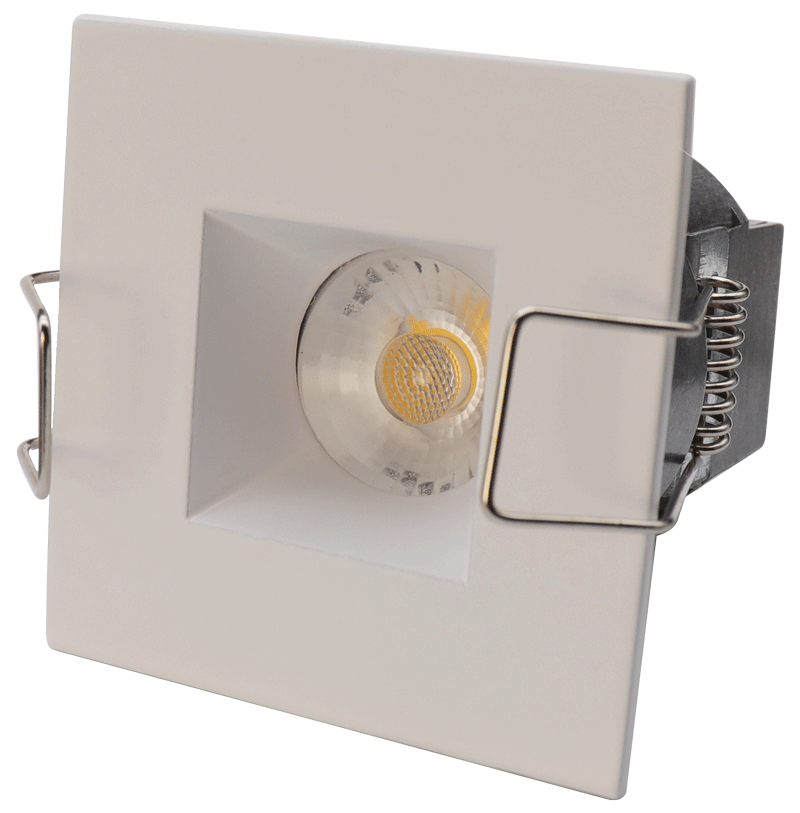

- LED-1-S6W-30K-T1-12WD-S-WH: 3000K, Square White 1/4" trim

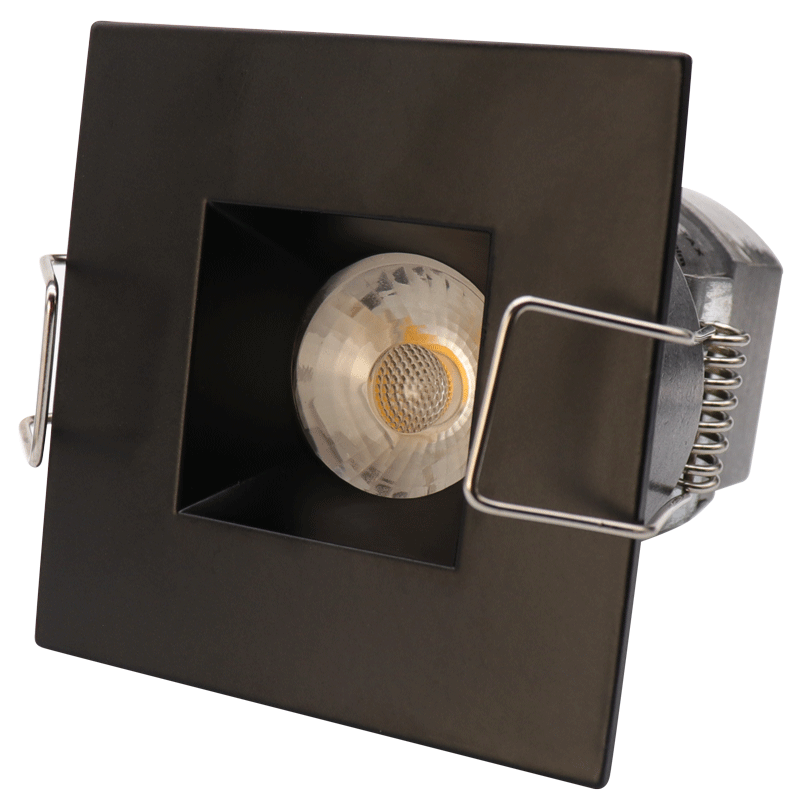

- LED-1-S6W-30K-T1-12WD-S-BK: 3000K, Square Black 1/4" trim
Trim options
- T1-R-WH: Round White 1/8"
- T1-R-BK: Round Black 1/8"
- T1-S-WH: Square White 1/8"
- T1-S-BK: Square Black 1/8"
- T1-12WD-R-WH: Round White 1/4"
- T1-12WD-R-BK: Round Black 1/4"
- T1-12WD-S-WH: Square White 1/4"
- T1-12WD-S-BK: Square Black 1/4"
Compatible accessories
- RIP2: Rough-in plate, sold separately
- 24V Lotus LED driver: Required for powered installation; dimming depends on the selected external 24V driver
Ordering notes
- Standard beam angle is 38°.
- Add -24D for the optional 24° beam angle.
- Other trim and light colors are available by custom order.
- The warranty is void if installed with an LED driver from another manufacturer.
Installation notes
- Designed for low-voltage daisy-chain installation.
- Connect to a remote mounted Class 2 power supply or compatible solar inverter.
- Internal terminal block means no junction box is required at the fixture.
- Type IC rated with no recessed housing required.
- Approved for insulated ceilings and damp locations.
- 2" mini recessed LED fixture
- 24V AC/DC input
- 6W power consumption with 35W halogen equivalent
- 3000K warm white output
- 480 lumens with CRI 90+
- 38° standard beam angle; 24° optional adder
- Round and square trim options
- White and black trim finishes
- Type IC, air-tight, and damp location approved
- Dimmable with compatible external 24V drivers
Frequently Asked Questions
What is the Lotus LED-1-S6W?
The LED-1-S6W is a 2-inch mini recessed 24V AC/DC LED fixture designed for displays, cabinets, mini recessed applications, soffits, and compatible solar installations.
What voltage does this fixture use?
The fixture input is 24V AC/DC. It is designed to connect to a remote mounted Class 2 power supply or compatible solar inverter.
Is the LED-1-S6W dimmable?
Yes. It is dimmable with compatible external 24V drivers. Dimming performance depends on the selected driver and control setup.
Does this fixture require a junction box?
No. The fixture includes an internal terminal block, so no junction box is required at the fixture location.
Does this fixture require a recessed housing?
No. The LED-1-S6W is Type IC rated and does not require a recessed housing.
What trim options are available?
The fixture is available with round or square trims in white or black, with 1/8" and 1/4" trim options.
What is the standard beam angle?
The standard beam angle is 38°. A 24° beam angle is available as an adder by using the -24D ordering option.
Can it be used in damp locations?
Yes. The spec sheet lists the LED-1-S6W as approved for insulated ceilings and damp locations.
