Grid 24-Port Rackmount Patch Panel | Cat6/Cat6e/Cat6A Structured Cabling | POEJKPP6-24

Overview

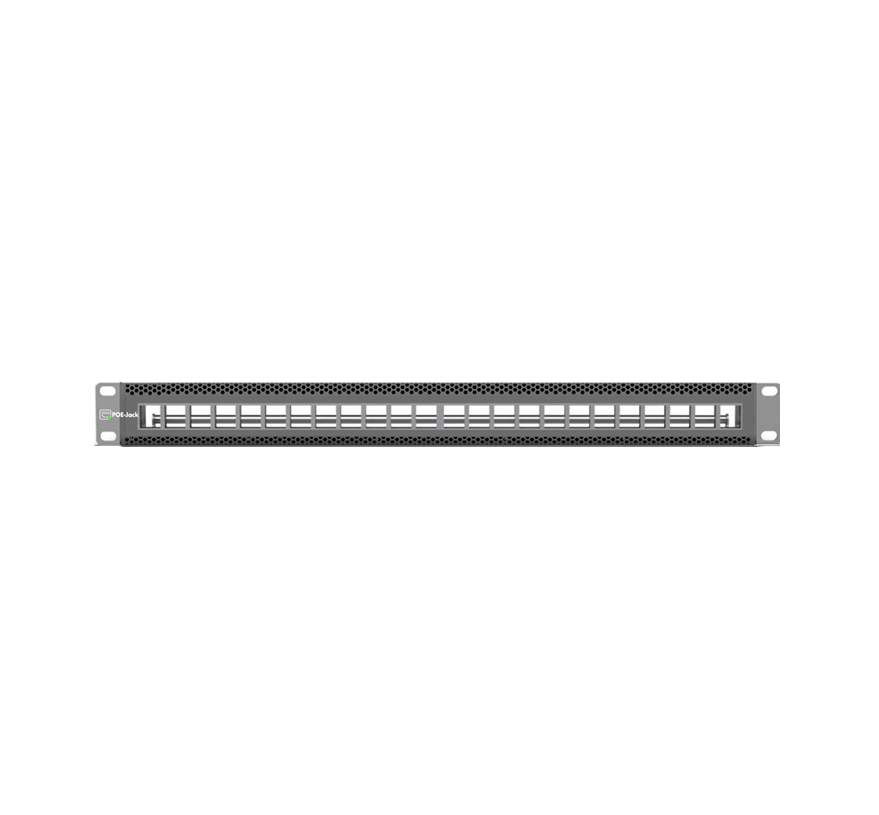

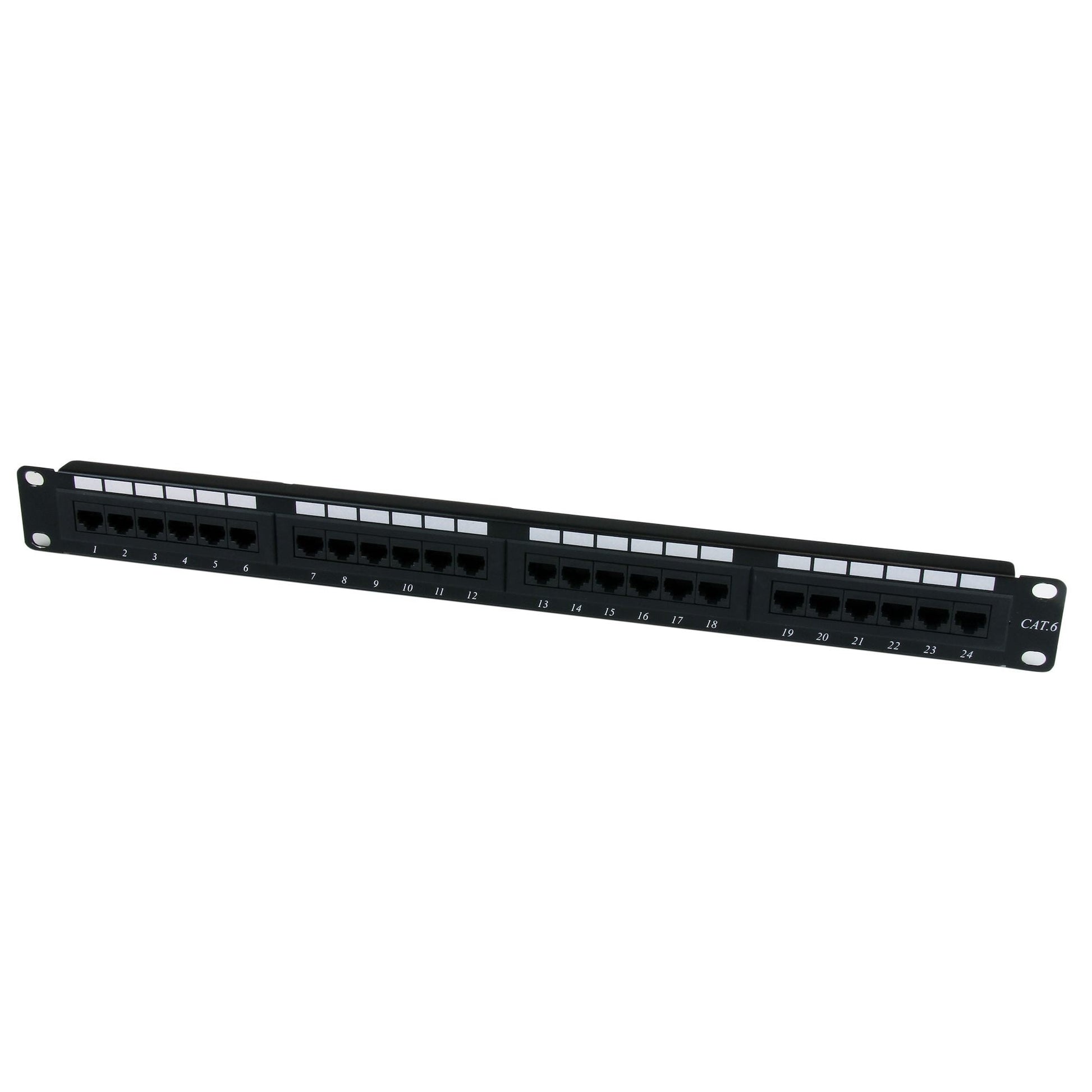

The POEJKPP6-24 is a 24-port, 1U rackmount patch panel designed for Cat6/Cat6e/Cat6A structured cabling in GRID DC microgrid projects. It provides a neat, high-density termination point for workstation drops, POE-Jack® keystones and uplinks in 19" racks, wall cabinets and small IDFs.

Component-compliant to ANSI/TIA Category 6A connecting-hardware requirements, it is engineered to support 10G Ethernet and high-power 802.3bt PoE++ up to 100 W when used with appropriate cabling and terminations.

If you’re looking for a 24-port Cat6/Cat6A patch panel for PoE and PoE++ deployments in Canadian homes or light-commercial spaces, this panel is sized right for most small and mid-sized racks.

Key features

• 24-port, 1U design – fits standard 19" racks, cabinets and wall-mount frames.
• Category 6A component-compliant – designed to meet ANSI/TIA Category 6A connecting-hardware requirements.
• 110-type IDC terminations – accepts UTP wire gauge 21–24 AWG on the rear.
• 50 μin gold-plated contacts – long-life performance under repeated insertions.
• PoE++-ready – performance designed for 802.3bt 100 W PoE++ applications.
• Universal T568A/B wiring – field-configurable to either standard.
• Rear cable-management bar included – supports tidy dressing and strain relief of horizontal cables.
• Standards-compliant – cUL listed, meets ANSI/TIA-568-C and is RoHS compliant.

Technical highlights

Ideal applications

• 24-port racks in small offices, clinics, classrooms and retail spaces.
• Distribution frames serving Active POE-Jack® zones and PoE-powered endpoints.
• Consolidating horizontal Cat6/Cat6e/Cat6A runs in home racks, media closets and network cabinets.
• PoE++ lighting, security and AV projects that need a simple, PoE-ready patching surface.

Compatibility & ecosystem

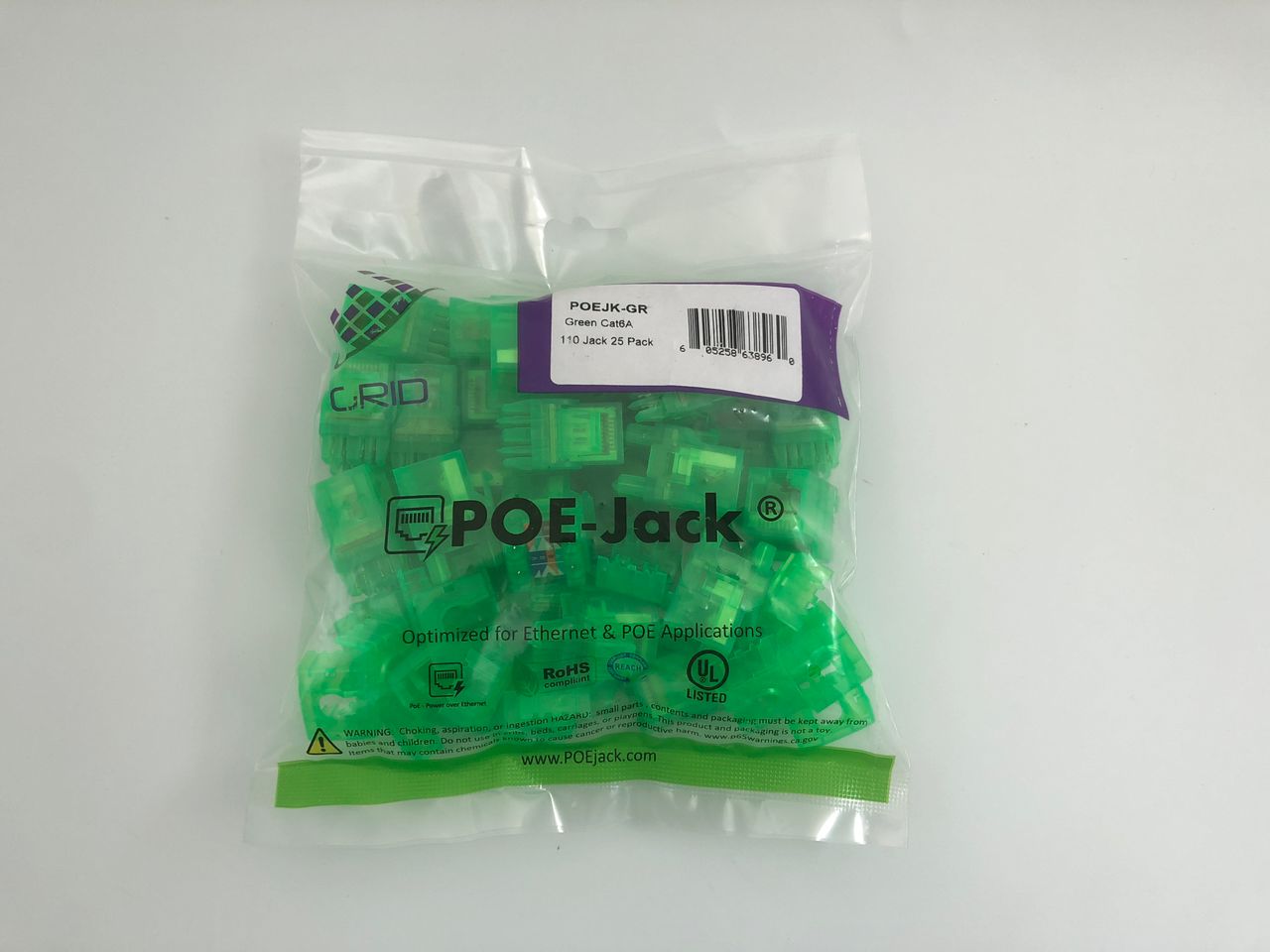

POEJKPP6-24 is designed to work with Cat6, Cat6e and Cat6A cables and keystone jacks across the GRID ecosystem. Use it with standard Cat6 keystones (JK6-BK/WH) or with POE-Jack® LED keystones when you want port-trace capability on busy panels.

The panel’s PoE++-ready design makes it a solid choice in DC microgrid networks where many ports will carry combined power and data for cameras, APs, lighting controllers and POE-Jack® plates.

Install & design notes

• Terminate horizontal cables to the rear 110-type IDC blocks using the proper punch-down tools and colour codes (T568A or T568B).
• Use the included cable-management bar to dress and tie cables; this reduces strain on IDC terminations.
• Label both front ports and rear cables clearly to align with your DC microgrid zone and jack numbering scheme.
• In PoE++ deployments, follow cable bundling and fill guidance from your cable manufacturer to manage heat rise.

Canada-ready checklist

• ✓ Fits standard 19" racks and wall cabinets common in Canadian homes and commercial sites.
• ✓ cUL listed for use in Canadian low-voltage installations.
• ✓ Suitable for 10G-capable Cat6A backbones and PoE++ projects when used with compliant cabling.
• ✓ Works well in compact condo and townhome racks where 24 ports is a practical maximum.

Compatibility micro Q&A

Can I punch down Cat6e or Cat6 (not Cat6A) on this panel?
Yes. While the hardware is Category 6A compliant, it accepts 21–24 AWG UTP and can be used with Cat6/Cat6e cabling as part of a mixed-category plant.

Is this panel shielded?
No. POEJKPP6-24 is a UTP (unshielded) patch panel. For shielded systems, use matching shielded components and grounding practices.

Does it support PoE++ on all ports?
It is designed to support PoE++ when used with appropriate cabling and switches. Actual power per port will depend on your PoE switch and overall design.

Specifications and features are subject to change without notice. Always verify details with the latest GRID documentation before design or tender.
