Gigabit PoE Splitter – 12V 2A Output (24W), 802.3af/at Input 44–57V (30W) | POEJK-S1224B
Gigabit PoE Splitter – 12V 2A Output (24W), 802.3af/at Input 44–57V (30W) | POEJK-S1224B
Login to see dealer pricing
Shipping calculated at checkout.
Ships in 5–7 Days (Western Canada) · 5–7 Days (Eastern Canada)
In stock
Gigabit PoE Splitter – 12V 2A Output (24W), 802.3af/at Input 44–57V | POEJK-S1224B

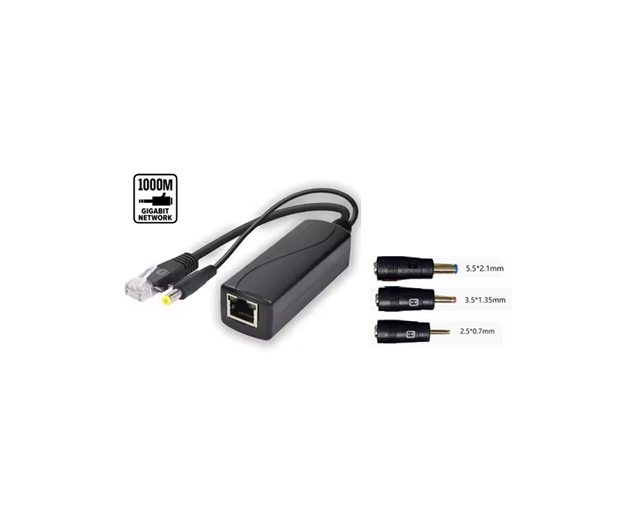

The POEJK-S1224B is a Gigabit IEEE 802.3af/at PoE splitter that accepts 44–57V PoE input and provides a regulated 12V, 2A DC output (24W). It lets you power 12V devices from an existing PoE line using a standard DC barrel connector and included barrel-adapter set.
Key features
- Gigabit PoE splitter – Gigabit Ethernet with inline PoE power conversion.
- IEEE 802.3af/at input – PoE/IN: 44–57V (30W).
- 12V DC output – DC/OUT: 12V / 2A (24W).
- Primary connector – DC 5.5 × 2.5 mm barrel connector.
-
Included adapters:
- DC 5.5 × 2.1 mm adapter
- DC 3.5 × 1.35 mm adapter
- DC 2.5 × 0.7 mm adapter
Technical highlights
| Parameter | Value |
|---|---|
| Model | POEJK-S1224B |
| Function | Gigabit IEEE802.3af/at PoE splitter |
| PoE input | 44–57V (30W) |
| DC output | 12V / 2A (24W) |
| Ethernet | Gigabit |
| Barrel connector | DC 5.5 × 2.5 mm |
| Included adapters | 5.5 × 2.1 mm; 3.5 × 1.35 mm; 2.5 × 0.7 mm |
Ideal applications
- Supplying 12V / 24W class devices from an IEEE 802.3af/at PoE line.
- Deployments where the only cabling to a location is Ethernet, but a 12V barrel-powered device is required.
All values and connector information are taken from the GRID Networking catalog and 2025 dealer price list. Specifications may change without notice.
