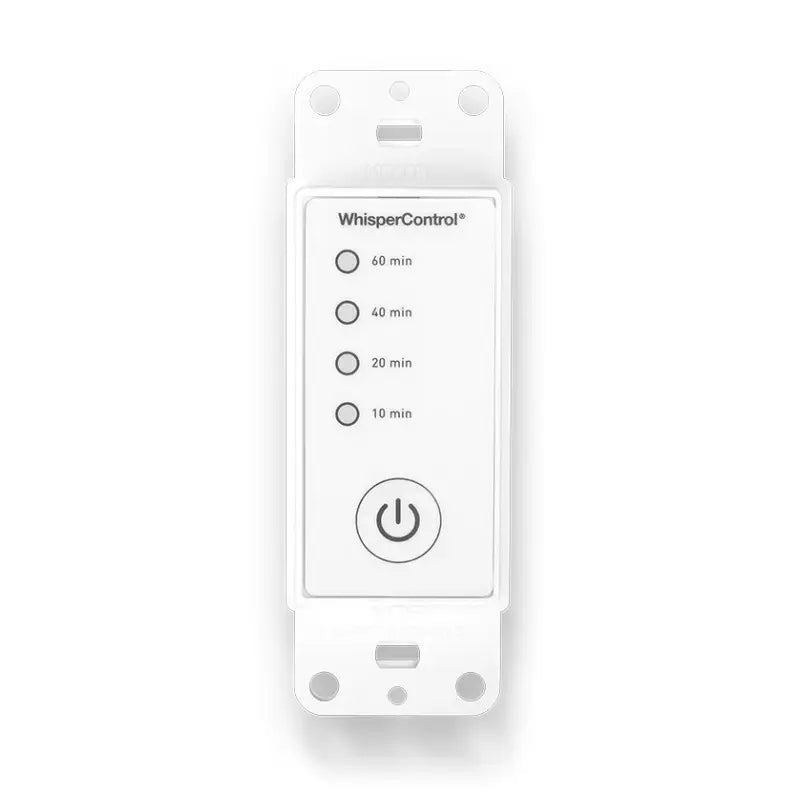

Panasonic WhisperControl Low Voltage Timer FV-SWLV1060
The Panasonic FV-SWLV1060 is a WhisperControl low voltage timer for use with compatible Panasonic BalancedHome and Intelli-Balance Elite and Elite Plus+ energy recovery ventilators. It gives dealers, installers, and ventilation professionals a simple wall-control option for timed ERV Boost Mode operation.
Key Benefits
- Timed ERV boost control: Provides 10-, 20-, 40-, and 60-minute timer settings.
- Low voltage operation: Designed for 12V DC control wiring in supported Panasonic ERV applications.
- Simple push-button selection: Timer levels are selected by repeated button presses, with LED indication for the selected setting.
- Maximum CFM boost function: Activates ERV Boost Mode for the selected timer duration on compatible units.
- Indoor installation: Intended for indoor use with compatible Panasonic ERV systems.
Dealer / B2B Use Case
FV-SWLV1060 is suited for ventilation projects where occupants need a straightforward timed boost control for compatible Panasonic ERVs. It is relevant for HVAC dealers, electrical distributors, builders, integrators, and installers specifying Panasonic BalancedHome or Intelli-Balance Elite ERV controls.
Technical Specifications
| Brand | Panasonic |
| Model | FV-SWLV1060 |
| Product Type | Low voltage ERV timer switch |
| UPC / Barcode | 885170448049 |
| Timer Settings | 10, 20, 40, and 60 minutes |
| Voltage | 12V DC +/- 0.5V |
| Timer Unit Current Consumption | Less than 40 mA / 1SW |
| Wiring Type | Pre-stripped wire leads, 20 to 14 AWG stranded |
| Flammability | UL94 V0 |
| Environmental Rating | Indoor installation only |
| Operating Temperature | 0°C to 50°C / 32°F to 122°F |
| Dimensions | 1-5/8 in. W x 4-1/8 in. H x 3/4 in. D |
| Wall Plate | Not included |
| Warranty | 1 year |
Compatibility / Application Notes
Panasonic lists FV-SWLV1060 for exclusive use with BalancedHome and Intelli-Balance Elite and Elite Plus+ ERV models: FV-15VE1T, FV-15VE1S, FV-12VE1T, FV-12VE1S, FV-16VEC1T, FV-16VEC1S, FV-13VEC1T, FV-13VEC1S, FV-15ESC1, FV-12ESC1, FV-14ES1, and FV-11ES1.
Ordering / Dealer Notes
- Order using Panasonic model FV-SWLV1060 or SKU FVSWLV1060.
- Confirm ERV model compatibility before specifying for a project.
- Wall plate is not included according to Panasonic submittal data.
Why Dealers Choose This Product
FV-SWLV1060 gives Panasonic ERV installations a dedicated timed Boost Mode control with clearly defined countdown settings and documented compatibility. It is a practical add-on control for projects that require occupant-accessible ventilation boost without adding unsupported control hardware.
