Panasonic FV-11ES1 Intelli-Balance Elite 110 ERV, 30-110 CFM | FV11ES1

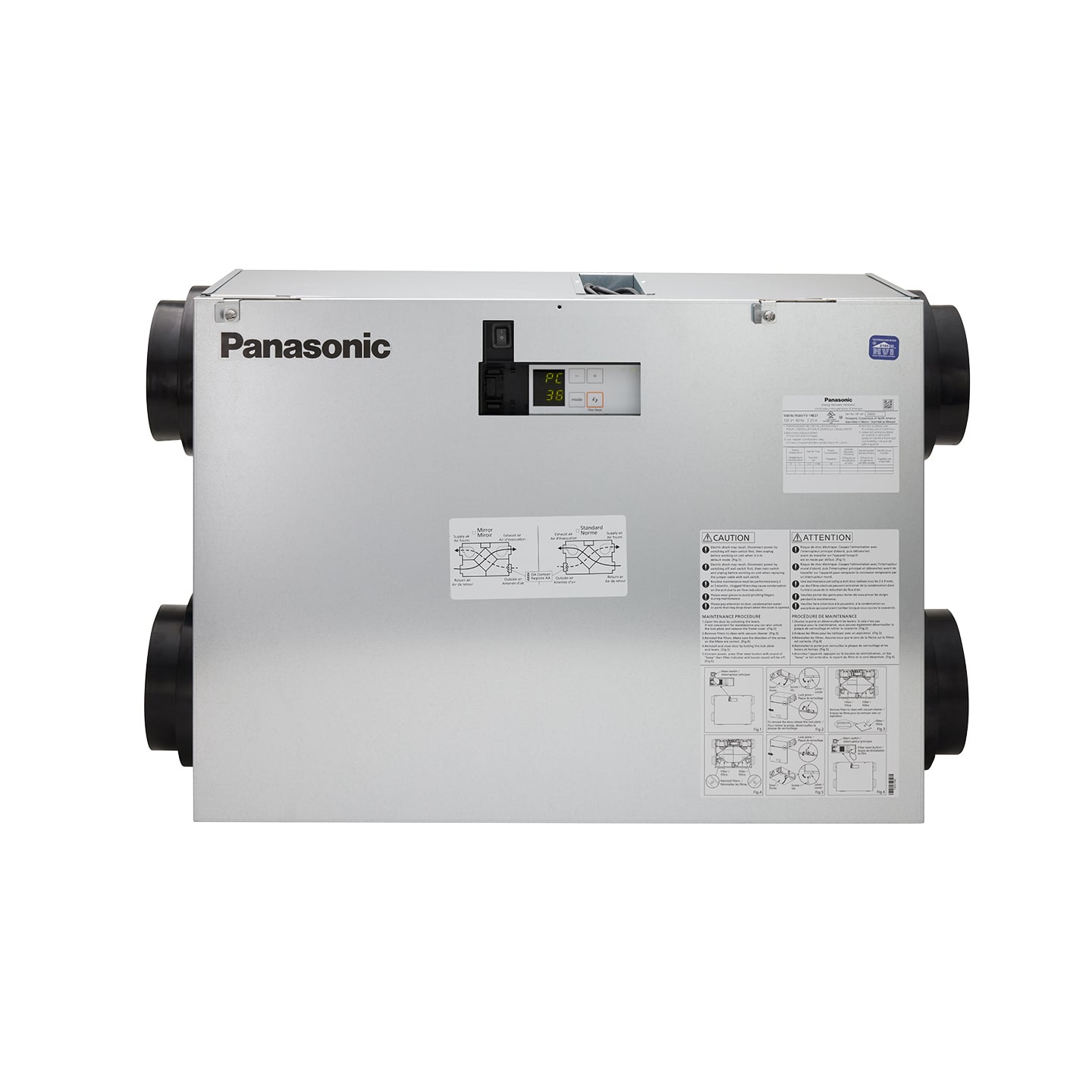

Panasonic FV-11ES1 Intelli-Balance Elite 110 Energy Recovery Ventilator

The Panasonic FV-11ES1 is an Intelli-Balance Elite 110 energy recovery ventilator for balanced residential and multifamily ventilation projects in temperate North American climate zones. It is designed for dealers, HVAC contractors, builders, and integrators who need a compact ERV with adjustable supply and exhaust airflow, energy recovery, and installation flexibility.

Key Benefits

• Balanced ventilation: Independent supply and exhaust settings support balanced, positive, or negative pressure ventilation strategies.
• Adjustable airflow: Supply and exhaust airflow can be set from 30 to 110 CFM.
• Energy recovery: The ERV core tempers incoming supply air while transferring heat and moisture between air streams.
• ECM motor platform: Two enclosed ECM brushless motors are rated for continuous operation and use Smart Flow technology to help maintain selected airflow under static pressure.
• Dealer-friendly installation: Includes four 6-inch duct connections, mounting brackets, detachable damper for mirror installation, standard power cord, and hardwire adaptor kit.
• Maintenance support: Includes MERV 13 filtration and visual/audible filter replacement indicators after 90 days of accumulated run time.

Dealer / B2B Use Case

FV-11ES1 is suited for new construction, multifamily units, and residential ventilation upgrades where a 30-110 CFM ERV is required for temperate climate applications. Dealers can position this model for projects needing balanced fresh-air supply and stale-air exhaust with adjustable airflow and code-oriented ventilation controls.

Technical Specifications

Brand	Panasonic
Model	FV-11ES1
Barcode / UPC	885170448995
Series	Intelli-Balance Elite 110
Product Type	Energy Recovery Ventilator, ERV
Climate Application	Temperate North American climate zones
Airflow Range	30-110 CFM supply and exhaust
Boost Function	Occupant-controlled boost to 110 CFM
Power Rating	120V / 60Hz
Motors	Two DC-enclosed ECM brushless motors, rated for continuous run
Duct Connections	Four 6-inch ducts for supply and exhaust
Housing	Galvanized, corrosion-resistant steel body
Mounting	Wall mount, chain mount, and floor mount brackets included
Filters	MERV 13 filter included; optional MERV 6 washable filter available
Heating SRE	88% at 36 CFM net airflow, 32°F / 0°C
Cooling TRE	82% at 36 CFM net airflow, 95°F / 35°C
Timing Function	Built-in ASHRAE 62.2 timing function
Warranty Listed in Panasonic Canada Submittal	ECM motors: 6 years; all other parts: 3 years from original purchase date

Compatibility / Application Notes

• Designed for temperate climate zones; Panasonic notes the unit is recommended where temperatures do not often fall below 14°F / -10°C.
• Includes detachable damper support for mirror installation options.
• Optional control accessories are listed by Panasonic for CFM selection, boost control, status/error updates, Wi-Fi app control, and low-voltage timer boost control.
• Panasonic documentation states the unit can be used to comply with ASHRAE 62.2, LEED, Indoor airPLUS, California Title 24, and 2021 Washington State Residential Energy Code; confirm project-specific code requirements before specification.

Ordering / Dealer Notes

• Use SKU FV-11ES1 for model identification.
• Use UPC 885170448995 for barcode-based product matching and catalog lookup.
• Confirm regional availability, approved accessories, replacement filters, project submittals, and current warranty terms before quoting.

Why Dealers Choose This Product

FV-11ES1 gives dealers a clearly specified Panasonic ERV option for 30-110 CFM balanced ventilation projects. Its adjustable airflow, ECM motor design, included MERV 13 filtration, and flexible mounting options make it useful for professional residential and multifamily ventilation specifications.
