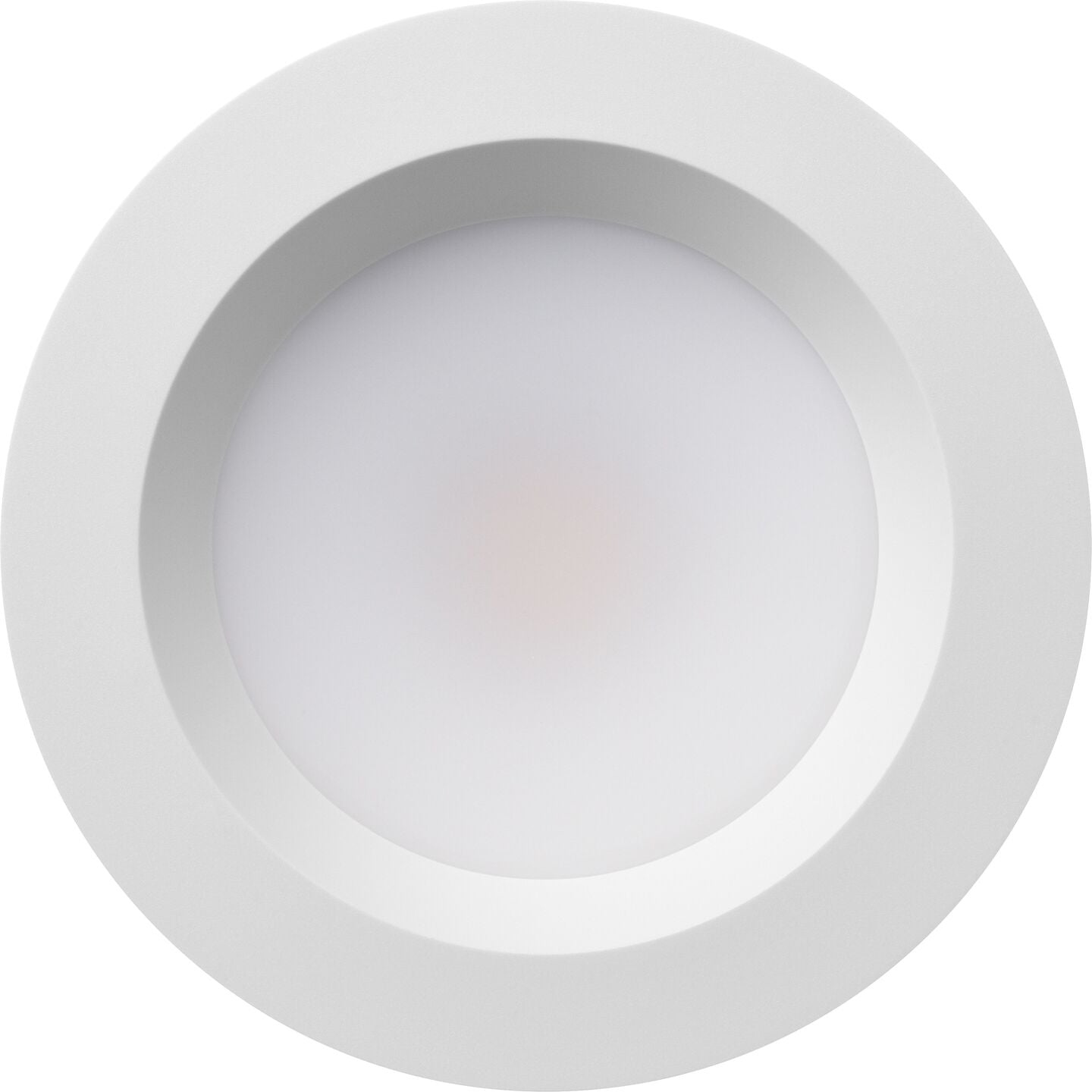

Lutron Lumaris Tunable White Downlight — Canless (RadioRA 3) | RRL-CD
Lutron Lumaris Tunable White Downlight — Canless (RadioRA 3) | RRL-CD
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:RRL-CD4WH-TW
Shipping terms (Free over $300) calculated at checkout.
Lutron Lumaris is an intelligent recessed downlight family designed for RadioRA 3 projects (Clear Connect – Type X). This listing is the Canless version (remodeler style) for new openings or ceilings being opened. Choose your configuration (4" or 6", White or Black trim).
Critical install rule: Lumaris downlights must be powered directly from the breaker (constant power). Any dimmer or switch between the breaker and the downlight should be bypassed. Control is handled through RA3 (keypads/scenes/app), not by phase-cut dimming.

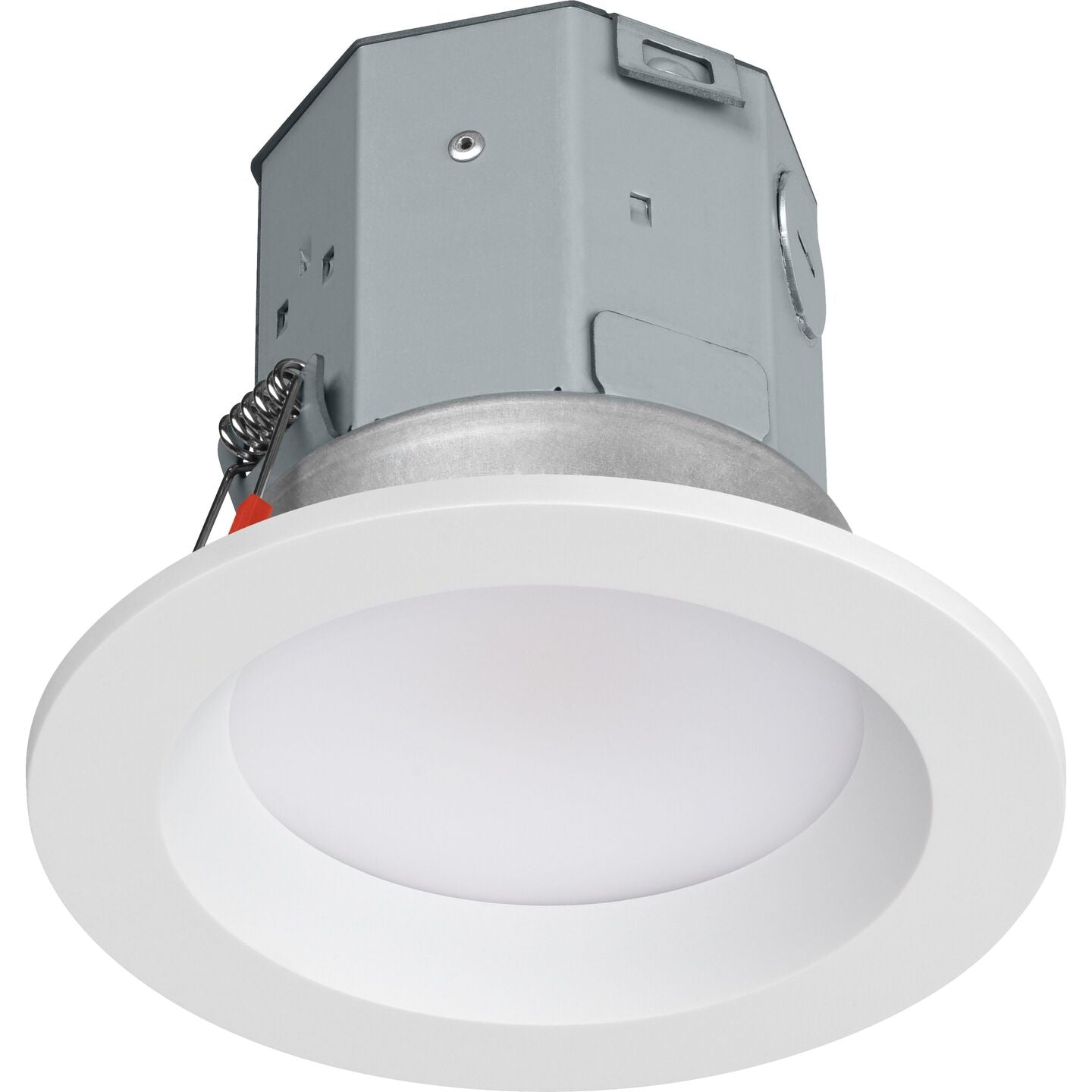

Canless vs Retrofit
- Canless (this product): no existing can required; ideal for remodels and new openings.
- Retrofit: for compatible existing cans. View Retrofit Lumaris →
Key specifications (downlight family)
| Input | 120 V~ 60 Hz |
| Power | 8.5 W (0.07 A) |
| Delivered output | 800 lumens |
| CCT | 1800K–4000K tunable white |
| Color quality | 90+ CRI |
| Dimming | Continuous, flicker-free dimming to 0.1% measured output |
| Wireless | Clear Connect – Type X |
Canless install notes (confirm before ordering)
- Cutout sizes: 4" requires a 4.25–4.50 in hole; 6" requires a 5.25–5.50 in hole.
- Insulation: suitable for direct contact with batt or blown-in insulation; NOT for spray foam insulation.
- Junction box wire capacity: up to 2× 12/2 w/ground, or 2× 14/2 w/ground, or 2× 14/3 w/ground.
- Not for emergency exits or emergency lighting.
Downloads
- Family spec sheet: https://assets.lutron.com/a/documents/3691335_eng.pdf
- Canless install guide: https://assets.lutron.com/a/documents/041944.pdf
