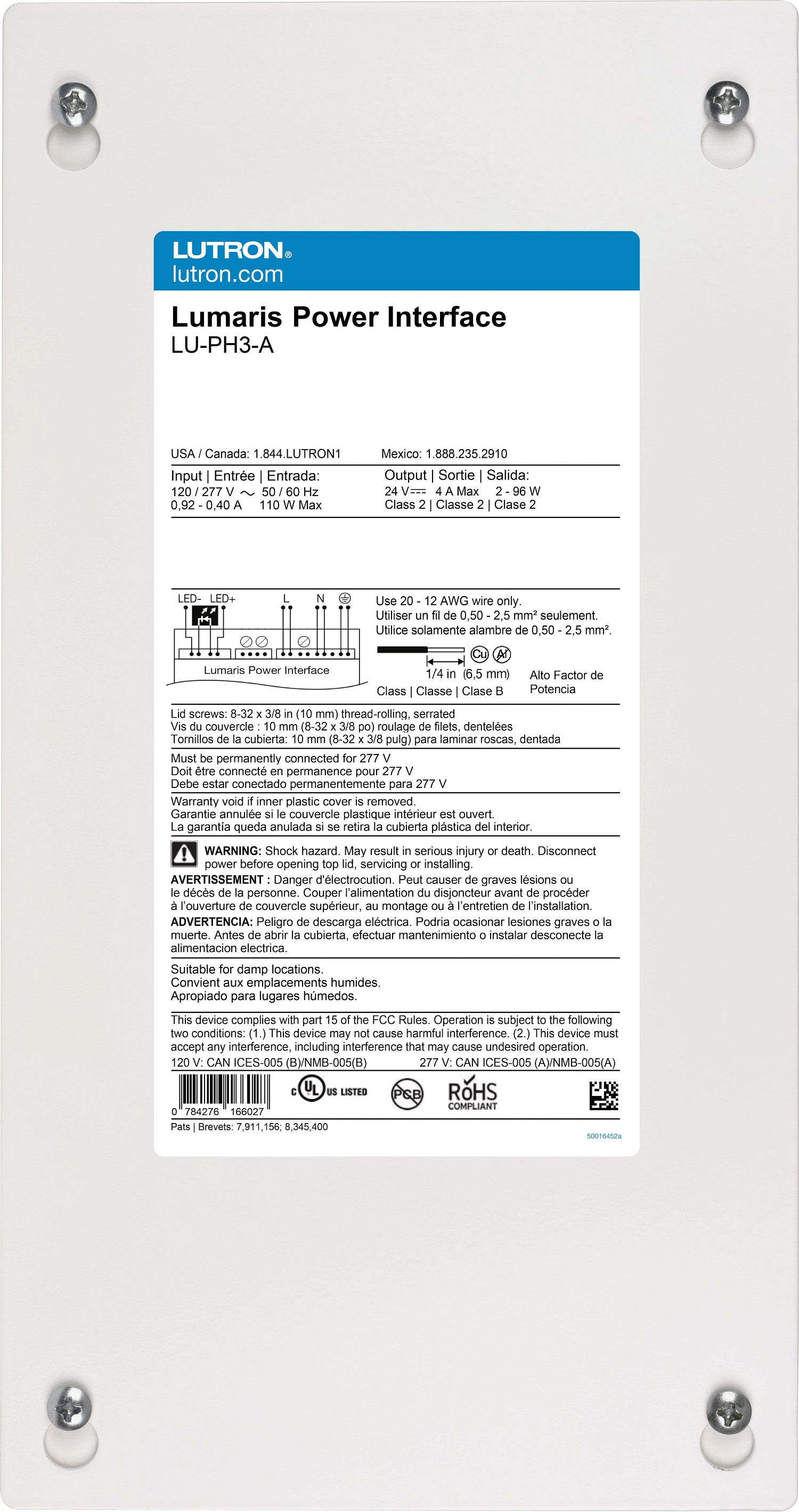

Lutron Lumaris Hardwired Power Interface – 120/277 V Input, 24 V Output, Powers Up to 3 Controllers | LU-PH3-A

Available to order — ships from incoming stock

Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)

SKU:LU-PH3-A

Shipping terms (Free over $300) calculated at checkout.

Color White

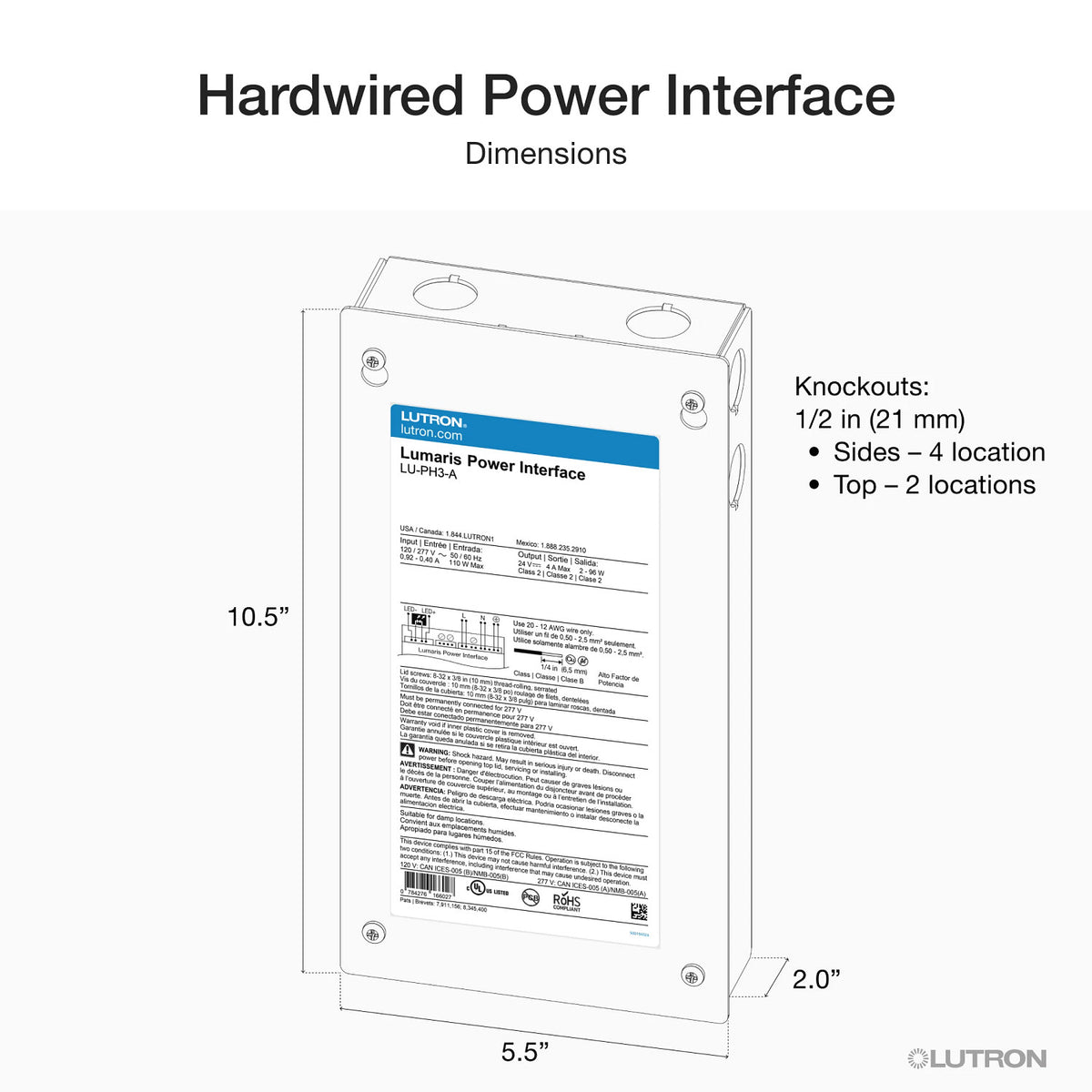

The Lutron hardwired power interface for Lumaris Tunable White Tape Light adds installation versatility by powering up to 3 Lumaris wireless controllers and up to 48 ft of Lumaris LED tape from a single hardwired source. Three barrel-to-terminal adapters are included for clean wiring from wireless controllers to the interface.

Key Features

Powers up to (3) Lumaris wireless controllers and up to 48 ft of Lumaris tunable white tape
Input: 120/277 V~ (50/60 Hz); output: 24 V
Accepts 12 AWG to 20 AWG conductors — see the wiring section of the spec sheet for length configurations
Includes (3) barrel-to-terminal adapters

Applications

Multi-zone Lumaris tunable white layouts fed from a central electrical location
Projects where plug-in supplies are not desirable or receptacles are unavailable

System Notes

Must be used with Lumaris Wireless Controllers for RadioRA 3 (RRL-TWC*)
For independent control, home-run each wireless controller to the power interface; zone or grouped applications may be home-run or T-tapped
Indoor damp/dry location rating with output short-circuit and overload protection
Verify layout, load, and control requirements before ordering
