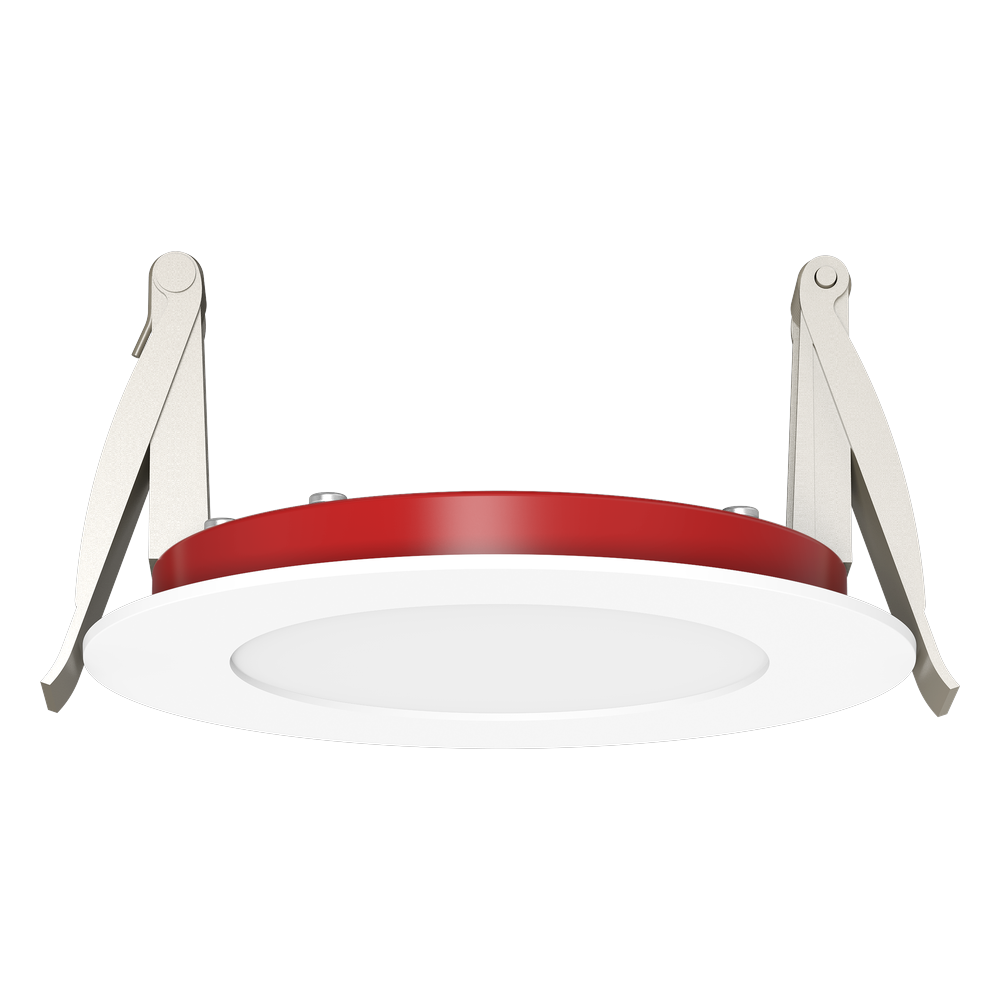

Lotus Lotolite SC-FDL09 4" Ultra-Slim 2-Hour Fire-Rated LED Panel | 9W
Lotus Lotolite SC-FDL09 4" Ultra-Slim 2-Hour Fire-Rated LED Panel | 9W
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:SC-FDL09-D04H-A1-01RE-WH
Quick choice: The Lotus Lotolite SC-FDL09-D04H-A1-01RE-WH is a 4-inch white slim round 2-hour fire-rated LED downlight/panel for multi-family residential, basements and approved commercial ceiling applications. It draws 9W, produces up to 1080 lumens (manufacturer maximum), and includes the 120V TRIAC-dimmable driver inside its connection box—no separate junction box or low-voltage KVE driver is specified for the standard fixture.
At a glance: ½-inch ultra-slim profile • 4⅛-inch round cutout • 4¹⁵⁄₁₆-inch outside diameter • 9W / 120V AC 60Hz • selectable 5CCT 2700/3000/3500/4000/5000K • CRI90+ • 110° beam • up to 1080 lm, up to 120 lm/W at stated reference • TRIAC 10–100% dimming • Type IC / air tight / wet location • Energy Star and JA8 listed by Lotus • 50,000h L70 • 5-year warranty. Supplier price-list case quantity 32 requires sell-unit/carton verification.
Manufacturer specifications and correct installation
| Exact SKU / supplied trim | SC-FDL09-D04H-A1-01RE-WH, white trim; one orderable SKU on this PDP |
|---|---|
| Power / driver | 9W, included 120V AC 60Hz TRIAC-dimmable driver IN connection box |
| CCT | Five field-selectable whites: 2700/3000/3500/4000/5000K; do not create separate variants for these on-fixture settings |
| Lumens and efficacy | Up to 1080 lumens and up to 120lm/W (manufacturer maxima; no setting-specific lumen table provided) |
| Light distribution | 110° beam, CRI90+ |
| Dimming | 120V TRIAC, 10–100% with compatible control; not 1% and not a 24V KVE driver system |
| Profile/cutout | ½-inch ultra-slim panel; 4⅛-inch round ceiling cutout (not a 4–4¼-inch range); 4¹⁵⁄₁₆-inch outside diameter |
| Mounting | Spring clips secure fixture against ceiling; follow model-specific assembly instructions and specified ceiling construction |
| Integrated connection box | 8.4 cubic inches, Lotus maximum 5 No. 12 AWG or 7 No. 14 AWG conductors; install to local code and actual box-fill calculations |
| Location | Type IC, air-tight, wet-location rated in approved installation |
| Two-hour fire-rating | Lotus reports UL 263:2022, ASTM E119-24 and CAN/ULC-S101-14 test references; a steel rear cover and intumescent gasket provide fire protection, no separate fire cone needed under the manufacturer-specified configuration. Verify the building's tested ceiling assembly and jurisdictional acceptance. |
| Ambient / life | −20°C to +40°C; L70 projected 50,000 hours |
| Manufacturer certifications | cETLus, FCC, Energy Star, JA8 according to sheet; check programme applicability and current listings for procurement |
| Warranty | 5 years subject to Lotus terms |
Fire-resistance and building compliance
Lotus specifies a 2-hour fire-rated luminaire, steel backing and intumescent seal. That does not by itself prove a particular floor/ceiling construction maintains its required rating. Match the full tested ceiling assembly, mounting, penetrations and current documentation with the authority having jurisdiction. Do not infer a numeric IP code not stated on the spec sheet.
Optional mounting and emergency accessories
Lotus lists these as sold separately: MP4 13-inch flanged plate, FRP4 rough-in with hanger bars, RIP414 26-inch flat plate, MP4-2 13-inch flat plate, GR4 white and GR4-BK black goof rings (5¾-inch OD), FR-JC-5CCT-10 10-foot jumper cable, and BLD-HM15D-YYY separate non-dimmable emergency backup unit.
Ordering quantity and kit contents
Supplier case quantity: The supplied October 2026 Canadian price data identifies a case quantity of 32, but the specification sheet itself does not say one retail sellable unit includes 32 panels. Shopify currently prices one variant; whether an individual piece can be ordered or a full carton must be purchased requires operational confirmation and checkout rule enforcement. Do not claim a $27.86 Shopify item ships as a case of 32 fixtures.
Frequently asked questions
Is this model 1000 or 1080 lumens?
Lotus specifies up to 1080 lumens at 9W. It does not provide independent lumen results for each selectable CCT setting.
Is an external driver or junction box needed?
Lotus supplies an integrated 120V TRIAC driver in its connection box. A separate 24V KVE driver is neither required nor appropriate.
Is this interchangeable with the commercial US-DL004?
No. SC-FDL09 is a fixed 9W, 120V, 10–100% TRIAC slim panel; US-DL004 is a 120–347V, 5-wattage, 0–10V downlight that does not include a junction box.
Does this fixture guarantee a two-hour rating in any ceiling?
No. Match the exact tested assembly and installation instructions with the project code requirements and local approval.
Does one unit mean one fixture or 32 fixtures?
The supplier lists a 32-piece case quantity, which does not establish Shopify sellable packaging. Confirm whether the order must be made in multiples of 32 before committing a purchase.
Lotus Lotolite SC-FDL09 exact technical specification and mounting illustration
Availability: The Lotus October 2026 announcement forecast release months for these products; these forecasts do not confirm live supplier stock, Simply Controlled inventory or a guaranteed shipping date. Confirm before scheduling projects.
