Lotus 4" Square Regressed Backlit LED 2-Hour Fire Rated 9W 5CCT Air-Tight Type IC Wet CRI 90+ | LFR-4S-RB-9W-5CCT
Lotus 4" Square Regressed Backlit LED 2-Hour Fire Rated 9W 5CCT Air-Tight Type IC Wet CRI 90+ | LFR-4S-RB-9W-5CCT
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LFR-4S-RB-9W-5CCT
Shipping terms (Free over $300) calculated at checkout.

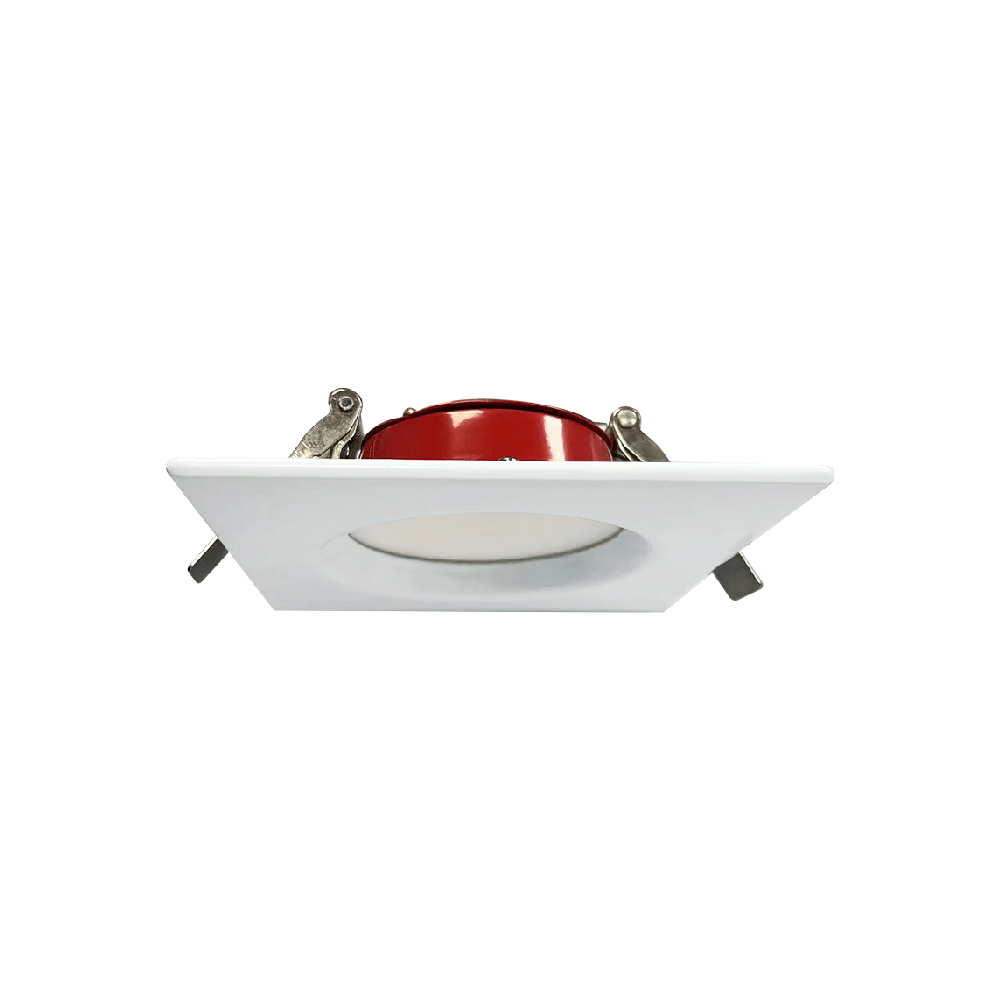

LFR-4S-RB-9W-5CCT | 4" Square Regressed Backlit LED 2-Hour Fire Rated
This architectural-spec 4-inch square recessed fixture merges modern geometric design with advanced fire safety and visual comfort. Engineered by Lotus LED, it features a built-in 2-hour fire rating and a deep regressed backlit lens, providing a contractor-grade solution for high-density luxury residential and commercial developments.
Key Features
- 2-Hour Fire Rated: Integrated fire protection meets UL 263 and ASTM E119 standards, eliminating the need for expensive fire boxes or additional drywall layers.
- 5CCT Selectable: Field-adjustable switch allows for 2700K, 3000K, 3500K, 4000K, and 5000K color settings to match any interior palette.
- Regressed Visual Comfort: The deep-set lens design significantly reduces glare and provides a high-end, architectural aesthetic.
- Backlit Performance: Advanced backlit technology ensures uniform light distribution across the lens with superior thermal management.
- IC Rated & Air-Tight: Certified for direct contact with insulation and designed to prevent energy loss between the room and the plenum.
Technical Specifications
- Model: LFR-4S-RB-9W-5CCT
- Size: 4" Square
- Input Voltage: 120V AC
- Power Consumption: 9W
- CCT: 2700K - 3000K - 3500K - 4000K - 5000K (Switchable)
- CRI: 90+
- Fire Rating: 2-Hour Fire Rated
- Rating: IC Rated, Air-Tight, and Wet Location
