Lotus EU4454 Battery-Free Kinetic 4-Button Switch | Meshle Bluetooth
Lotus EU4454 Battery-Free Kinetic 4-Button Switch | Meshle Bluetooth
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:EU4454

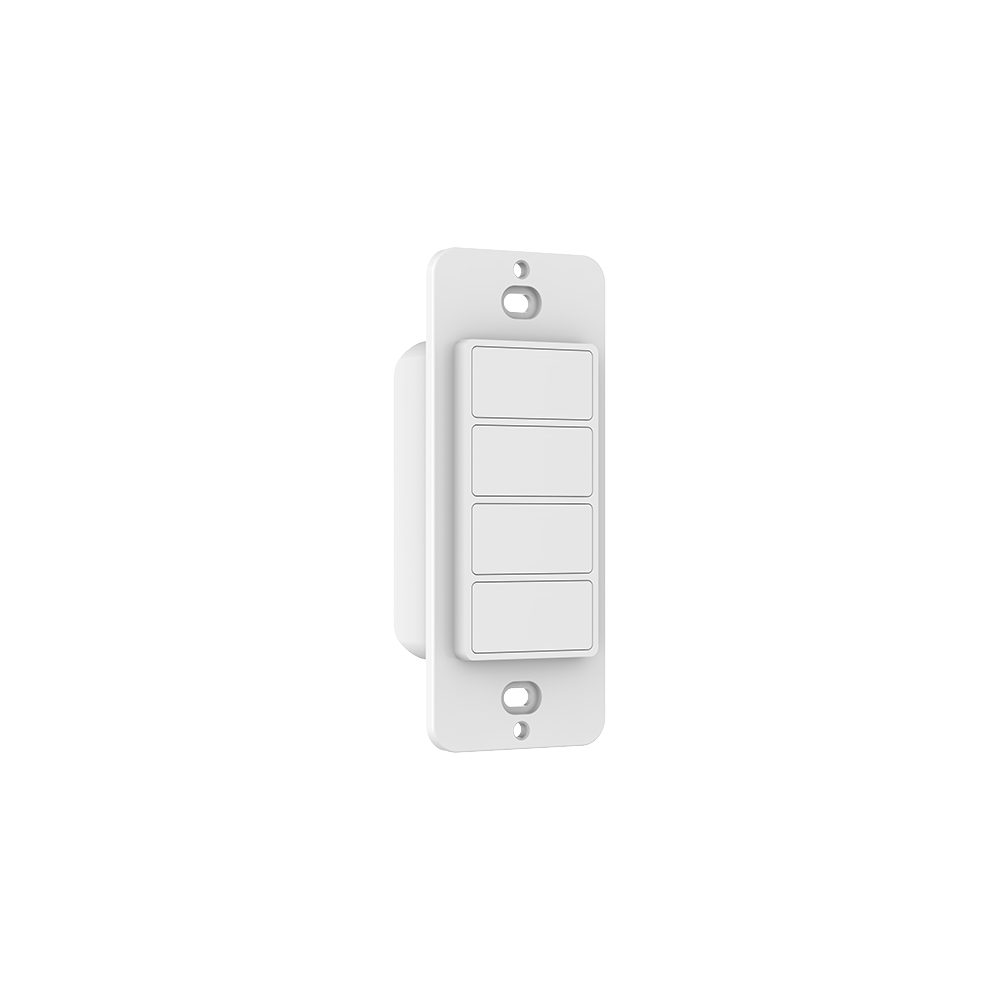

Quick choice: The Lotus EU4454 is a four-key self-powered kinetic wireless wall switch for Light by Lotus MESHLE Bluetooth-mesh controllers. Pressing its buttons generates operating energy: no batteries and no line-voltage wiring are required for the switch itself. It does not directly power or dim a conventional LED fixture. You must pair it with a compatible separately purchased MESHLE controller using the free MESHLE app for iOS or Android.
At a glance: 4 programmable push buttons • kinetic, battery-free power • Bluetooth mesh MESHLE at 2.4GHz • manufacturer's stated 100ft (30m) operating distance (conditions affect actual range) • configurable short press, long press and double-click actions for power, colour and brightness • individual or grouped mesh-device control • manufacturer design life at least 100,000 presses • polycarbonate housing • 4⅛ × 1¾ × 1 in • indoor dry location • FCC • 3-year warranty.
Verify controller compatibility before purchasing
| Compatible Lotus controller model | Function of controller | Required for EU4454? |
|---|---|---|
| S54072W092S10-SPI | MESHLE SPI controller for RGBTW LED strips | One of the two manufacturer-listed compatible controller families |
| 568P-3 | Five-channel PWM controller for RGBW strips with MESHLE | One of the two manufacturer-listed compatible controller families |
Controller(s), LED tape/strips, external lighting power and phone are separate. The EU4454 is a control-input accessory, not a wired dimmer with standalone line-voltage, Zigbee, Wi-Fi, Thread, Matter or generic Bluetooth compatibility claims. Do not assume that any Bluetooth LED controller works unless supported by Lotus MESHLE documentation.
Set up the EU4454: pair BEFORE installing
- Purchase/install a supported MESHLE controller and commission its intended LED load according to that controller's separate installation directions.
- Install/open the free MESHLE iOS or Android app on a compatible smartphone.
- Before mounting the switch, locate the pairing QR code on the back of the EU4454 and complete the app pairing process. This is an explicit Lotus instruction.
- Configure the four keys and their short-press, long-press and double-click actions for supported on/off, colour and brightness functions; assign individual or grouped Bluetooth-mesh devices as appropriate.
- Only after successful commissioning, screw-mount to a suitable junction box per manufacturer installation drawing. The switch itself needs no battery and no electrical power wiring.
- Verify the actual wireless range and reliable response in the installation's wall construction and mesh network.
Manufacturer specifications
| Exact manufacturer part number | EU4454 |
|---|---|
| Switch type | Four-button push-button kinetic remote |
| Switch power | Self-powered from kinetic button presses; batteries not required |
| Wireless | Light by Lotus MESHLE Bluetooth mesh, 2.4GHz |
| Rated operating distance | 100ft / 30m manufacturer reference, site dependent |
| Control actions | Short press, long press, double click; MESHLE app assignments for on/off, colour and brightness; single device or group |
| Compatibility | S54072W092S10-SPI or 568P-3 MESHLE controller, separately purchased |
| Ambient / location | −15°C to +45°C and INDOOR/DRY; not an outdoor/wet switch |
| Durability | ≥100,000 presses manufacturer rating |
| Case / geometry | Polycarbonate (PC), 4⅛ × 1¾ × 1 inches |
| Mounting | Screw-mounted to suitable junction box after pairing QR code on rear |
| Certification / warranty | FCC; three-year manufacturer warranty |
Frequently asked questions
Does this need a battery, charging or 120V wiring?
No. This is a self-powered kinetic switch. Compatible powered MESHLE controllers and LED loads are separate, but the EU4454 switch itself does not require batteries or mains power.
Can it directly control any Lotus downlight?
Not without a compatible MESHLE controller. Lotus names S54072W092S10-SPI and 568P-3. Confirm that the actual controlled lighting installation uses a supported controller.
Will it work over Wi-Fi, Matter or a generic Bluetooth connection?
Lotus specifies MESHLE Bluetooth mesh at 2.4GHz; generic Wi-Fi/Matter support is not established by the supplied sheet.
Should I mount it before pairing?
No. The manufacturer says pair before installation because the required QR code is on the back.
Can buttons control a group?
Yes, Lotus describes control of an individual device or a group on its MESHLE Bluetooth-mesh network. Programme actions through the app.
What is the approximate wireless range?
Lotus lists 100ft (30m). Actual radio performance depends on installation environment and mesh topology.
Is it outdoor or wet-location rated?
No. Lotus specifies indoor dry locations.
Lotus EU4454 manufacturer specification and pairing instructions
Availability: The Lotus October 2026 announcement forecast release months for these products; these forecasts do not confirm live supplier stock, Simply Controlled inventory or a guaranteed shipping date. Confirm before scheduling projects.
