Lotus AD-107T 3" Ultra-Slim 24V 3CCT LED Puck Lights | Singles & Packs
Lotus AD-107T 3" Ultra-Slim 24V 3CCT LED Puck Lights | Singles & Packs
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:AD-107T-3CCT-24V
Quick choice: The Lotus AD-107T-3CCT-24V is an ultra-slim, 2.2W, 24V DC LED puck light for undercabinet, cove, hospitality and retail lighting. It provides three field-selectable white light colours: 2700K, 3000K and 4000K, with CRI90+ colour rendering and a wide 120° beam. Select a single puck, a three-pack or a ten-pack based on the number of fixtures and included trim/power components. This listing is specifically for the 24V three-CCT family, not the separate 12V or fixed-colour AD-107T models.
At a glance: 2.2W per puck • 24V DC input • 150 lm at 2700K / 150 lm at 3000K / 170 lm at 4000K manufacturer reference per light • 120° beam • CRI90+ • up to three magnetic interchangeable trim colours depending on package • white surface-mount bracket listed as included • surface mounting or recess mounting • ¼-inch-thin surface mounting or ⅛-inch-thin recessed mounting per Lotus drawings • damp-location rated • Lotus-specific driver/warranty conditions apply.
Which package should I buy?
Choose the exact package variant above: manufacturer part number, number of puck lights, included trim colours, power-supply inclusion and price differ. The photos show the relevant packaging style; they do not mean every optional accessory is included.
| Exact Lotus SKU | Pucks | Manufacturer-confirmed package configuration | Power-supply status |
|---|---|---|---|

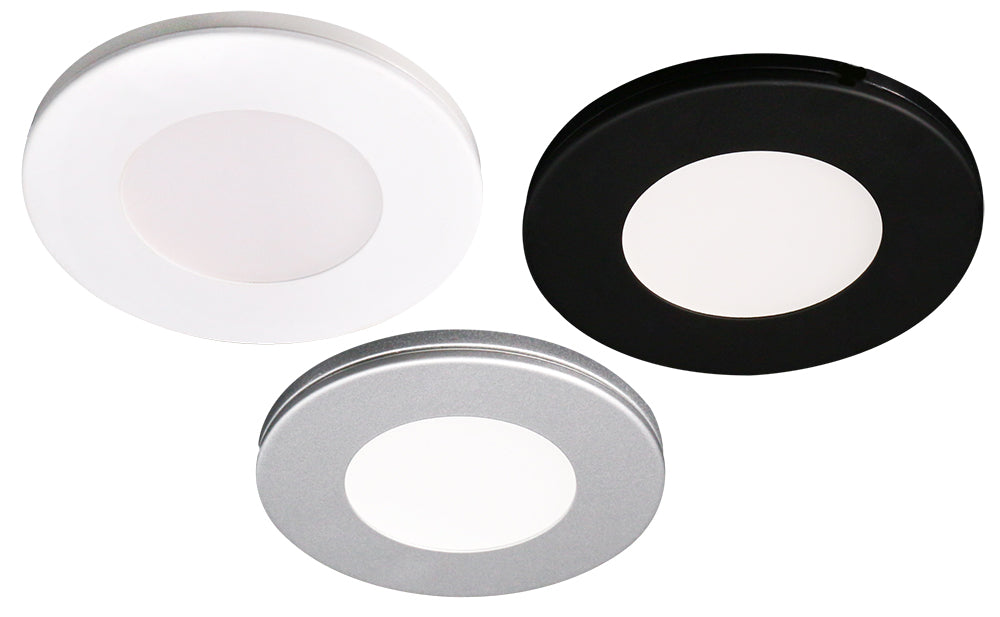

| AD-107T-3CCT-24V | 1 | Single 24V 3CCT puck with white, black and brushed-nickel magnetic trim choices | Separate compatible 24V supply required; not listed as included |

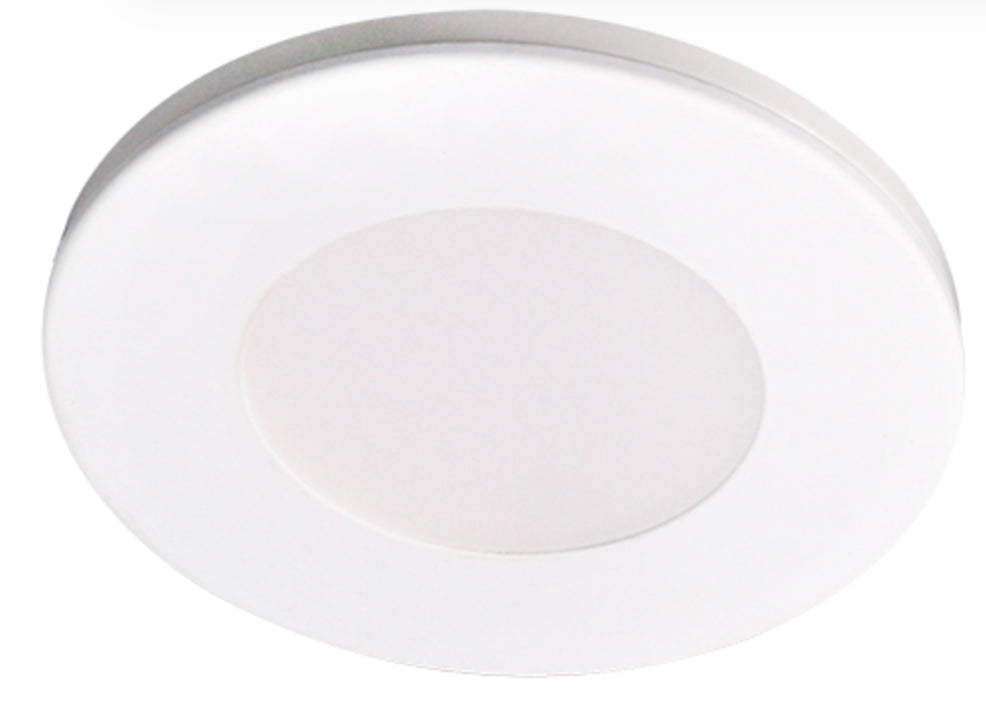

| AD-107T-3CCT-24V-WH | 1 | Single 24V 3CCT puck with white trim only | Separate compatible 24V supply required; not listed as included |

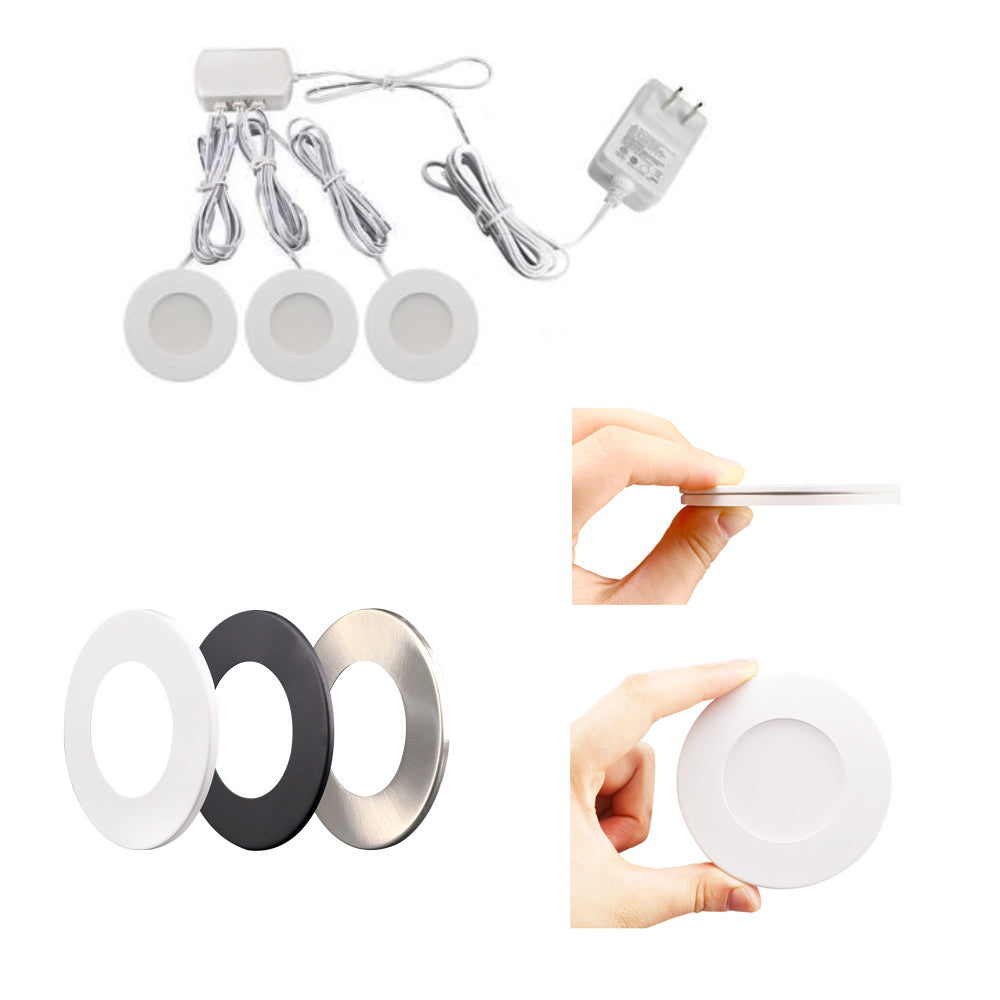

| 3P-AD-107T-3CCT-24V | 3 | Three 24V 3CCT pucks, three magnetic trim colours, with a plug-in power supply according to Lotus | Plug-in power supply included and non-dimmable; whether a separate six-port hub is included requires confirmation |

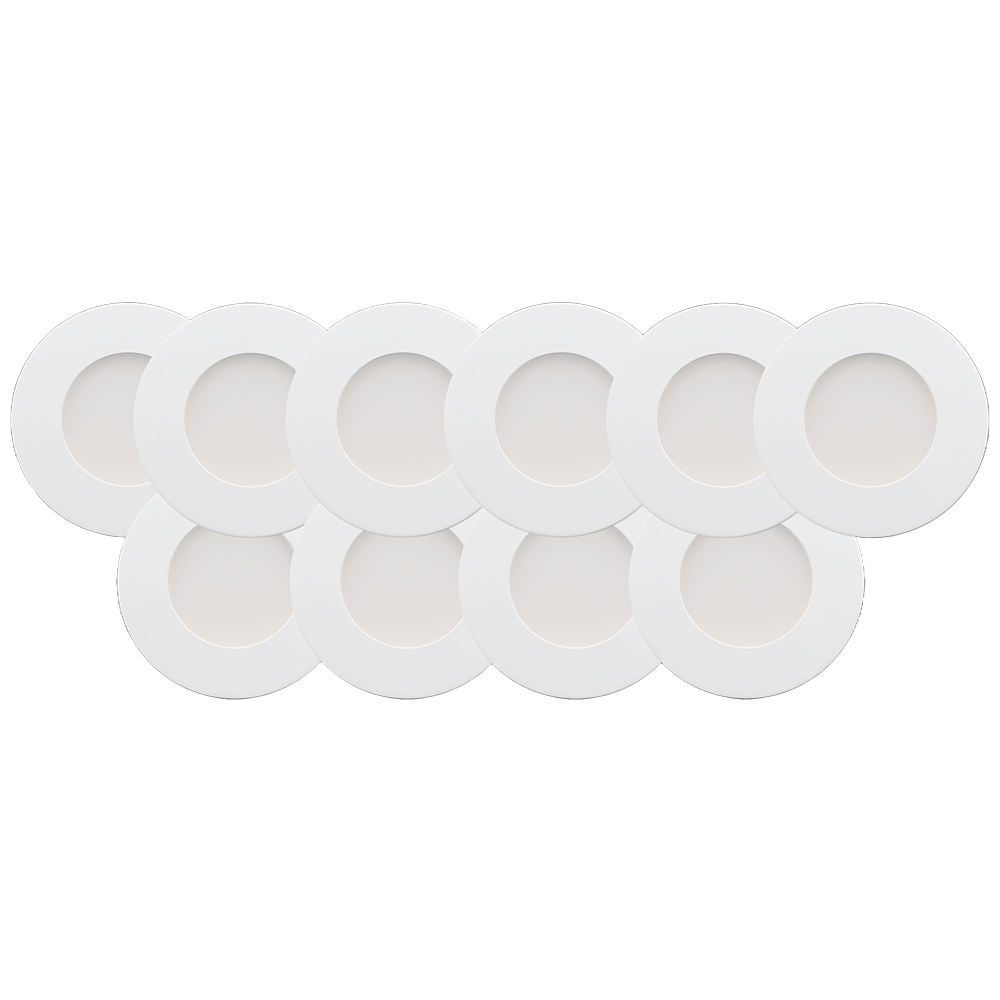

| 10P-AD-107T-3CCT-24V-WH | 10 | Ten 24V 3CCT pucks with white trim only | Power supply not specified as included; plan a suitable separately purchased 24V supply |
Packaging clarification: Lotus's ordering guide establishes the single, 3-pack and 10-pack quantities, the trim configurations and the plug-in power supply for the 3-pack. It lists a six-port hub as an accessory, but does not conclusively identify it in the 3-pack bill of materials. Confirm the hub before promising it as included.
Selectable light colour and individual-puck performance
| Field-selected CCT | Manufacturer stated output per puck |
|---|---|
| 2700K, warm white | 150 lumens |
| 3000K, warm white | 150 lumens |
| 4000K, neutral white | 170 lumens |
All four product variants are 24V 3CCT selectable. The output table describes one 2.2W puck, not the full three-pack or ten-pack total. More than one puck requires appropriate power-supply and wiring capacity. The 12V AD-107T-3K and 12V AD-107T-4K, as well as separate fixed-CCT 24V variants, are not substitutes for these 24V selectable models.
Manufacturer-verified specifications
| Fixture / application | Lotus AD-107T ultra-slim round LED puck; undercabinet, cove, hospitality and retail accent/task lighting |
|---|---|
| Input voltage | 24V DC for each 3CCT SKU in this PDP (other AD-107T lines are also offered at 12V; do not mix) |
| Power consumption | 2.2W per puck; nominal aggregate 6.6W for three lights and 22W for ten, before driver losses and installation margins |
| Colour selection | 2700K / 3000K / 4000K, field selectable |
| Output per puck | 150 / 150 / 170 lumens at 2700 / 3000 / 4000K respectively |
| Beam angle / rendering | 120° beam; CRI 90+; Lotus lists 15W halogen equivalence |
| Housing dimensions | Manufacturer lists inside diameter 2¼ inches; outside diameter 3 inches. These are drawing dimensions, not a manufacturer-labelled universal ceiling cutout; use the appropriate recessed installation drawing. |
| Low-profile mounting | ¼-inch thin in surface-mounted configuration; ⅛-inch thin in recessed-mounted configuration as depicted in Lotus diagram; a white surface-mount bracket is listed as included |
| Trim technology | Magnetically interchangeable round trim; white, black and brushed nickel supplied on designated three-trim packages, white only on WH models |
| Installation | Connect pucks to a correctly matched supply in parallel, using the compatible six-port hub or the male/female daisy-chain connectors as instructed by Lotus |
| Location | Damp locations. This is not a wet-location or IP54 claim. |
| Ambient temperature | −20°C to +40°C (−4°F to +104°F) |
| Rated life | L70 at 50,000 hours (projected 70% of initial output remaining) |
| Certification | cETLus, per Lotus |
| Warranty | Three years when installed with a Lotus LED Lights driver. Lotus states the warranty is void if a driver from another manufacturer is used. See manufacturer warranty terms. |
Power supplies and dimming: what is and is not included?
These are low-voltage 24V DC lights. Never connect a puck directly to 120V or 277V AC. Power supplies and dimming compatibility depend on the chosen package and driver type.
- 3-pack: Lotus identifies a plug-in power supply included; the manufacturer explicitly states plug-in drivers are NOT dimmable. Do not advertise the packaged plug-in driver as TRIAC dimmable.
- Single puck and 10-pack: the sheet does not state that a plug-in or hardwired supply is included. Select a suitable 24V DC Lotus LED Lights driver separately to preserve the stated warranty conditions.
- Hardwired TRIAC dimming: Lotus states compatible hardwired TRIAC drivers can dim from 10% to 100%. Its accessory list identifies HBL024-120-24-D for 24V hardwired TRIAC dimming.
- 24V integrated driver/dimmer choices: Lotus lists SDD-24060-DIM (60W) and SDD-24096-DIM (96W) as accessories, sold separately. Confirm the wiring and selected control configuration.
- Connection accessories: Lotus lists six-port hub AD-107THB1 and PEX6 six-foot extension cable. A hub is an optional separately listed component unless a specific kit's contents are independently confirmed.
- Capacity: Lotus notes a 12W driver may power up to five 2.2W pucks when the voltage and specific driver are appropriate. This does not mean five pucks can run from a 12V driver if they are the 24V versions in this listing.
For larger layouts, select the correct Lotus supply capacity, account for individual 2.2W loads, connector limits, voltage drop, control method and local electrical rules. Do not calculate kit drivers by assuming a three-pack or ten-pack is one 2.2W load.
Optional decorative, mounting and cable accessories
Magnetic decorative trims and mounting hardware help adapt an undercabinet lighting schedule. Manufacturer-listed optional items include:
- WWT-WH-107 / WWT-BK-107 / WWT-BN-107 — white, black or brushed-nickel wall-wash (eyelid) trims, sold separately.
- 107BP-BK / 107BP-BN — black or brushed-nickel surface-mount brackets, sold separately; Lotus lists a white surface-mount bracket with the puck.
- AD-107THB1 — six-port hub; PEX6 — six-foot extension cable.
These accessories are not automatically included in a single, three- or ten-pack purchase unless that exact package confirms inclusion. Check the selected SKU and its box contents before quoting a project.
Common buyer and shopping-agent questions
What is the difference between the two single-puck variants?
AD-107T-3CCT-24V includes three magnetic trim colours (white, black and brushed nickel). AD-107T-3CCT-24V-WH is the white-trim-only version. Both are 24V, 2.2W and selectable 2700/3000/4000K.
Does the three-pack include a dimmable power supply?
No. It includes a plug-in supply, and Lotus expressly says its plug-in drivers are not dimmable. Dimming requires an appropriate separate hardwired or compatible dimming solution; do not assume the plug-in supply can do it.
Does the three-pack include the six-port hub?
Not confirmed by the supplied specification. Lotus describes the six-port hub as an accessory and the three-pack as including a plug-in power supply. Confirm exact kit contents before promising a hub.
Can I connect a 12V power supply to these 3CCT pucks?
No. Every SKU on this PDP is a 24V DC version, even though other AD-107T family members support 12V. Match the output voltage and capacity of the Lotus supply to the ordered lights.
Is this suitable inside a shower?
The AD-107T sheet lists damp-location approval only, not wet-location. Do not substitute these pucks for wet-location-rated Lotus shower downlights without an appropriate rating assessment.
Does one 10-pack use 2.2 watts in total?
No. The rating is 2.2W per puck. Ten pucks represent 22W nominal lighting load, excluding the supply's overhead and losses. Choose a properly rated, compatible 24V driver.
Why might a purchasing agent ask to confirm a barcode?
The white-trim-only single puck has an unresolved supplier UPC discrepancy; its GTIN should be confirmed from original packaging before being used for barcode-based automatic product matching. The other variants retain their individual barcodes.
When can these ship?
The Lotus October 2026 launch notice listed this new 24V 3CCT group for October 2026. That bulletin is not confirmation of current supplier stock, Simply Controlled inventory or a guaranteed ship date. Verify availability before committing delivery timing.
Manufacturer documentation: AD-107T technical specification and ordering guide. Lotus warranty terms.
