Lotus 4" PIR Round Disk Downlight 10W | DL205S-4-10W-5CCT-R90-0081
Lotus 4" PIR Round Disk Downlight 10W | DL205S-4-10W-5CCT-R90-0081
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:DL205S-4-10W-5CCT-R90-0081-WH
DL205S-4-10W-5CCT-R90-0081 | 4" PIR Round Disk Downlight 10W
The Lotus DL205S-4-10W-5CCT-R90-0081 is a 4-inch round surface mount LED disk downlight with integrated PIR sensor, designed for residential, commercial, hospitality, multi-family, and closet applications. It provides a clean low-profile lighting solution for J-box installations or 4-inch recessed can retrofit applications where motion-based lighting control is preferred.
This 10W PIR sensor disk downlight features 5CCT selectable color temperature, CRI 90+ color rendering, 120V AC Triac dimming, and a wide 115° beam angle. The built-in PIR sensor includes selectable time delay settings of 10 seconds, 1 minute, or 10 minutes, making it a strong option for closets, utility areas, storage rooms, corridors, and other spaces where automatic light control is useful.
Why this sensor disk sells
- Integrated PIR sensor: built-in motion-based control for automatic operation
- Selectable time delay: choose 10 seconds, 1 minute, or 10 minutes
- Closet rated: suitable for closet applications when installed according to code and manufacturer instructions
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, or 5000K
- Fast J-box installation: compatible with 2.75", 3", and 4" J-boxes
- 4" can retrofit option: installs as a 4" can retrofit with separately sold retrofit kit
- Wet location approved: suitable for indoor and outdoor installations where permitted by code
- High color accuracy: CRI 90+ for true color rendering
- Flicker-free AC design: designed for clean, reliable light output
- White and black trims: finish options for different ceiling conditions
Recommended applications
- Closets
- Residential ceiling lighting
- Commercial general lighting
- Hospitality spaces
- Multi-family corridors and suites
- Storage rooms and utility areas
- Bathrooms and approved wet-location areas
- J-box surface mount installations
- 4" recessed can retrofit applications
Key specifications
| Model | DL205S-4-10W-5CCT-R90-0081 |
|---|---|
| Fixture Type | 4" Round Surface Mount Energy-Efficient Fixture with PIR Sensor |
| Applications | Residential, Commercial, Hospitality, Multi Family, Closet |
| Power | 10 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 820 / 850 / 890 / 870 / 820 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 115° |
| PIR Detection Angle | 100° |
| PIR Detection Range | Max 4m x 3m |
| Time Delay | Selectable: 10 seconds, 1 minute, or 10 minutes |
| CRI | 90+ |
| Voltage Input | 120V AC |
| Dimming | Triac dimmers, 10% - 100% |
| Approved Location | Wet Locations & Closets |
| Air Tight | No |
| Dimensions | 6" OD x 1 1/8" thickness |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Certification | cETLus, Energy Star, JA8 |
| Warranty | 5 Year |
Available models

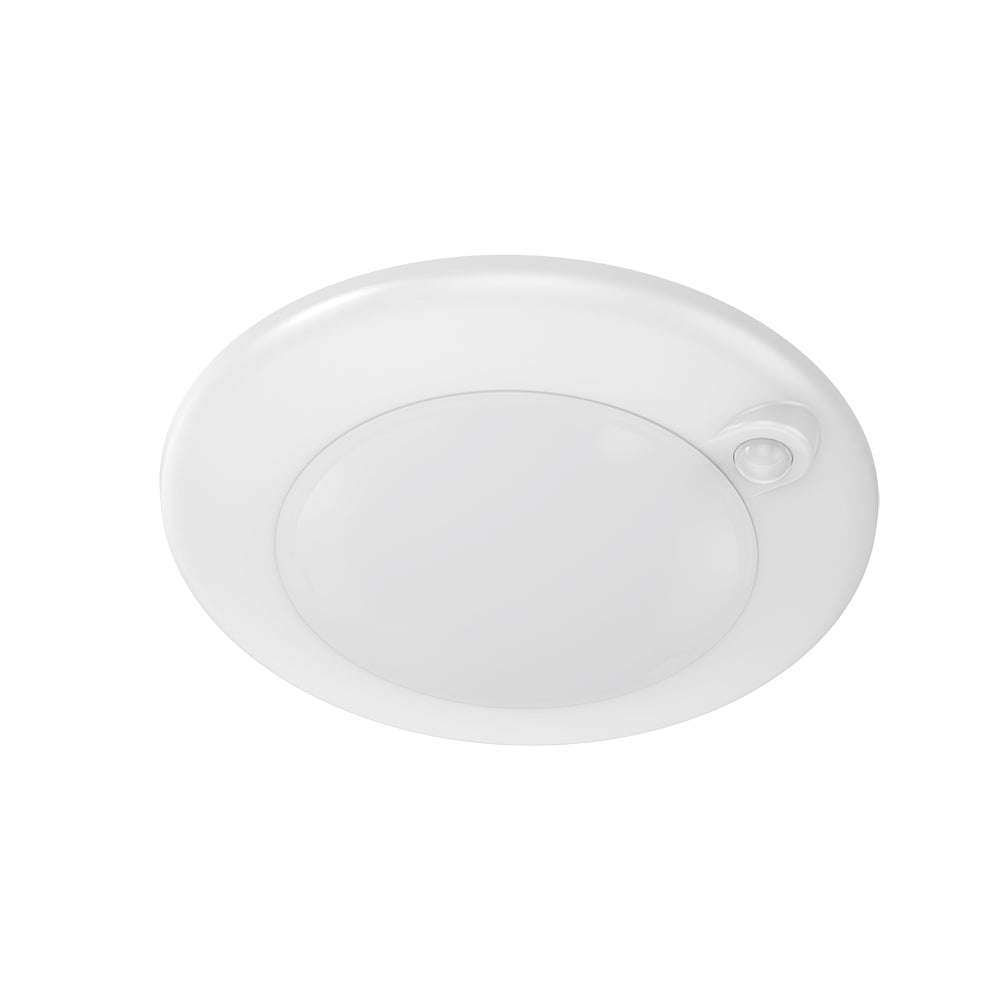

- DL205S-4-10W-5CCT-R90-0081-WH: White trim

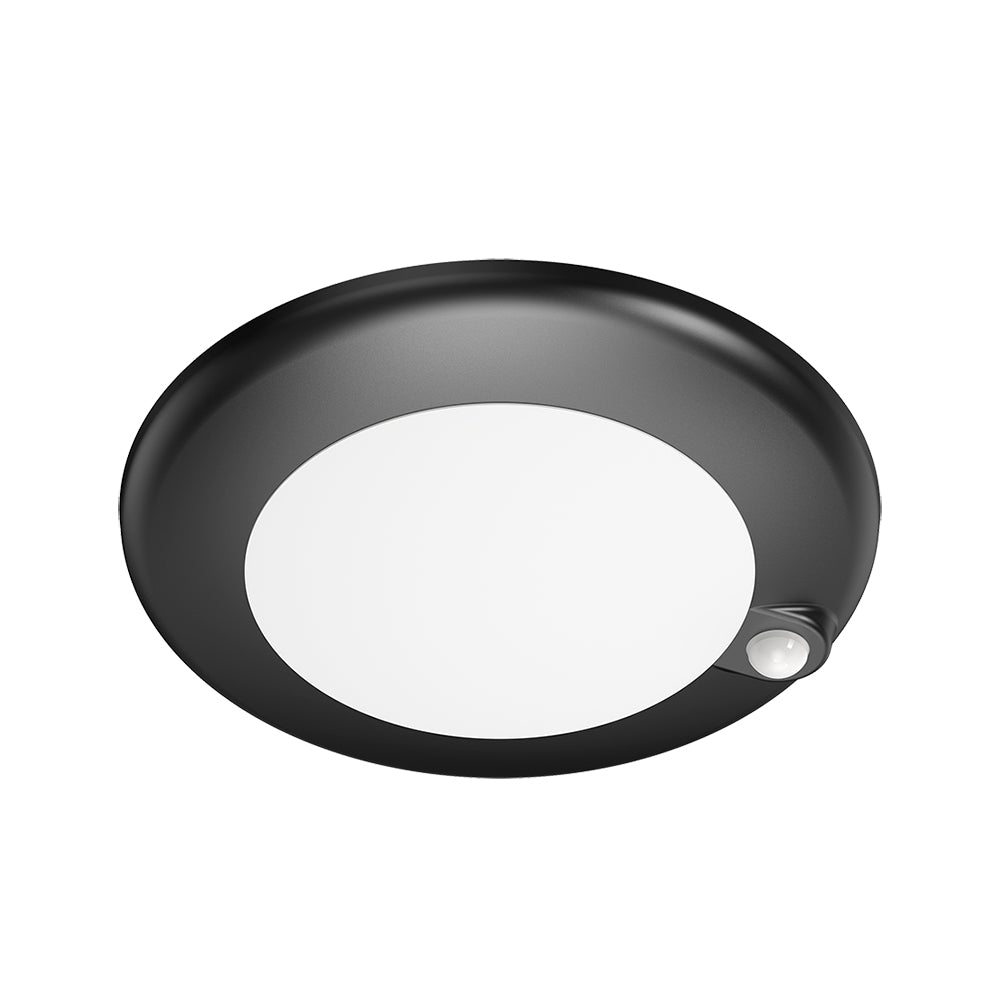

- DL205S-4-10W-5CCT-R90-0081-BK: Black trim
Compatible accessories
- 4RK-DL205-4: Retrofit kit for 4" cans, sold separately
Installation notes
- Designed for fast installation in a J-box or as a 4" can retrofit.
- Compatible with 2.75", 3", and 4" J-boxes.
- Retrofit kit is not included in the fixture package and is sold separately.
- Use retrofit kit 4RK-DL205-4 for 4" can retrofit applications.
- Approved for wet locations and closet applications when installed according to code and manufacturer instructions.
- 4" round PIR sensor LED disk downlight
- 10W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 820-890 lumen output depending on selected CCT
- CRI 90+ with 115° beam angle
- PIR time delay selectable: 10 seconds, 1 minute, or 10 minutes
- 120V AC Triac dimmable, 10%-100%
- Wet location and closet rated
- J-box mount or 4" can retrofit with separately sold retrofit kit
- White and black trim options
Frequently Asked Questions
What is the Lotus DL205S-4-10W-5CCT-R90-0081?
It is a 4-inch round LED disk downlight with an integrated PIR sensor, designed for J-box installation or 4-inch recessed can retrofit applications.
What does the PIR sensor do?
The PIR sensor detects motion and allows the fixture to operate automatically based on occupancy. The time delay can be set to 10 seconds, 1 minute, or 10 minutes.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is this fixture dimmable?
Yes. It is designed for 120V AC Triac dimming from 10% to 100%.
Can this fixture be used in closets?
Yes. The DL205S-4 is listed for wet locations and closets.
Can this fixture be installed in a J-box?
Yes. It is compatible with 2.75", 3", and 4" J-boxes.
Can it be used as a recessed can retrofit?
Yes. It can be used as a 4" can retrofit with retrofit kit 4RK-DL205-4, sold separately.
What trim finishes are available?
The fixture is available in white and black trim options.
