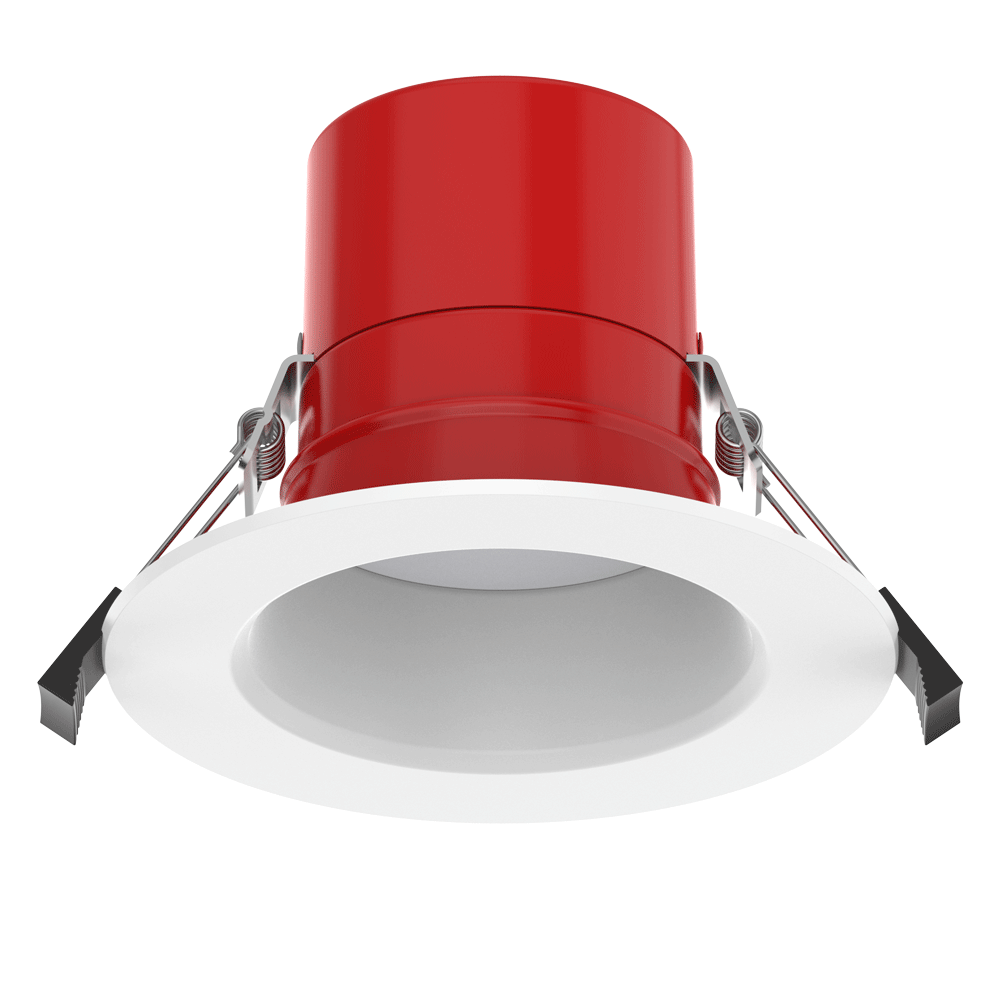

Lotus US-DL004 4" 2-Hour Fire-Rated Commercial LED Downlight | 5CCT, 6–15W
Lotus US-DL004 4" 2-Hour Fire-Rated Commercial LED Downlight | 5CCT, 6–15W
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:US-DL004-4-15W-M-D05C5
Quick choice: The Lotus US-DL004-4-15W-M-D05C5 is a commercial 4-inch round, 2-hour fire-rated recessed LED downlight for retrofit/new construction in hospitality, healthcare, retail, offices and similar commercial ceilings. A single physical SKU allows five selectable wattages (6, 8, 10, 12, 15W) and five selectable colour temperatures (2700, 3000, 3500, 4000, 5000K); these are field settings, not 25 additional sellable SKUs. White trim and white reflector are the manufacturer-listed configuration.
At a glance: Universal 120–347V AC, 50/60Hz • 0–10V dimming 5%–100% • CRI90 • 80° beam • up to 1470 lumens at 5000K/15W • manufacturer 2-hour fire-rating test references UL 263:2022, ASTM E119-24, CAN/ULC S101-14 • Type IC, air tight, wet location • FT6/CMP plenum cable • steel heat-resistant casing and intumescent gasket • 50,000h L70 • 5-year warranty • junction box NOT included.
Five wattages × five CCTs — manufacturer light-output matrix
These 25 settings are adjustable on the same fixture. Choose wattage based on the needed illumination, energy use and electrical specification; choose CCT separately.
| CCT | 6W | 8W | 10W | 12W | 15W |
|---|---|---|---|---|---|
| 2700K | 530 | 690 | 900 | 1050 | 1340 |
| 3000K | 590 | 780 | 1010 | 1160 | 1420 |
| 3500K | 550 | 740 | 940 | 1120 | 1400 |
| 4000K | 620 | 820 | 1060 | 1210 | 1460 |
| 5000K | 590 | 810 | 990 | 1190 | 1470 |
All values are manufacturer reference lumens for the corresponding wattage/CCT setting, not a universal 1470lm output or lumens maintained during dimming.
Manufacturer installation and rating specifications
| Exact manufacturer SKU | US-DL004-4-15W-M-D05C5, white trim/white reflector |
|---|---|
| Input / control | 120–347V AC 50/60Hz, 0–10V control, 5–100% dimming. Lotus notes that the 0–10V wires must be connected; use its actual wiring instructions. |
| Photometrics | CRI90, 80° beam; five CCT × five wattages above |
| Fixture geometry | Inside diameter 3¾ in; outside trim diameter 6 in; 4 in body depth, 1⅜ in regressed optic; 4 in ceiling space needed |
| Ceiling opening | 4⁵⁄₁₆ in to 5⅛ in round cutout, manufacturer allowable range; do not substitute a nominal 4-in cutout |
| Construction | Heat-resistant steel casing, intumescent gasket, heavy-duty steel spring clips, and FT6/CMP plenum-rated cable |
| Protection | Type IC, air tight and wet location when installed per Lotus |
| Fire test references | 2-hour fire-rated fixture according to Lotus, tested to UL 263:2022, ASTM E119-24, CAN/ULC S101-14. Fire-rated ceiling performance is assembly- and installation-dependent; verify specified tested assembly and local authority before representing a project's fire barrier as certified. |
| Ambient | −20°C to +40°C |
| Projected LED life | 50,000h at L70 |
| Manufacturer warranty | 5 years, subject to Lotus terms |
| Electrical enclosure | External junction box is not included; size and install separately as required |
Accessories and commercial planning
Manufacturer-listed, sold separately: MP4-114FR flanged rough-in, FRP4 flanged rough-in with hanger bars, RIP414 26-in flat rough-in, MP4-2 13-in flat rough-in, MP4 13-in flanged rough-in, LBL-MP-C4-8-STUD stud mounting plate, LBL-MP-C4-10-TBAR T-bar plate, LBL-4CGR-W white goof ring (8½-in OD). Optional emergency drivers BLD-HM08D-YYY 8W and BLD-HM15D-YYY up to 15W are separate; confirm suitability with a project-specific electrical design.
Frequently asked questions
Is the fixture actually 6–16W?
No. Lotus specifies exactly 6, 8, 10, 12 or 15W selectable; there is no listed 16W setting.
How many SKUs are in the 5×5 chart?
One physical Shopify/lotus SKU. The 25 combinations are field-adjustable settings, not separate products or boxes.
Does a two-hour-rated fixture guarantee a two-hour fire-rated ceiling?
No standalone guarantee. Lotus reports its two-hour test standards; the specified entire ceiling assembly, installation and local approval must be checked.
Are the junction box and emergency backup included?
No. The specification explicitly says the junction box is not included, and lists emergency backup drivers under sold-separately accessories.
Can I leave the 0–10V conductors unconnected?
Lotus explicitly warns “0–10V wires must be connected.” Follow its wiring diagram and required controls.
US-DL004 exact specification, output matrix and accessory sheet
Availability: The Lotus October 2026 announcement forecast release months for these products; these forecasts do not confirm live supplier stock, Simply Controlled inventory or a guaranteed shipping date. Confirm before scheduling projects.
