Lotus 3" Square Regressed Gimbal 27K 15° 580 lm IC Wet CRI 90+ | LSG3-15D
Lotus 3" Square Regressed Gimbal 27K 15° 580 lm IC Wet CRI 90+ | LSG3-15D
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LSG3-27K-BK-15D
LSG3 | 3" Square Regressed Gimbal LED 7.5W
The Lotus LSG3 is a compact 3-inch square regressed gimbal LED downlight designed for sloped ceilings up to 20°, general lighting, accent lighting, and directional recessed applications. Its regressed square aperture provides a clean architectural look, while the adjustable gimbal allows light to be aimed precisely where it is needed.
Built with an integral driver inside the connection box, the LSG3 installs without a traditional recessed housing or separate junction box. The fixture is Type IC rated, air-tight, and approved for wet locations, making it a strong small-aperture option for insulated ceilings, bathrooms, soffits, and other approved wet-location applications.
Why this fixture sells
- Regressed square gimbal design: clean architectural aperture with directional aiming
- Adjustable beam control: 20° tilt and 360° rotation for sloped ceilings, accent lighting, and general lighting
- Compact installation depth: 2 1/2" deep fixture body for areas with limited ceiling space
- No housing required: Type IC rated fixture installs directly into the ceiling opening
- Driver inside connection box: no separate junction box required
- High color accuracy: CRI 90+ for true color rendering
- Flexible CCT options: available in single CCT, dim-to-warm, and 5CCT selectable versions
- Beam angle options: standard 38° beam or optional 15° spot beam on compatible single-CCT models
- Wet location approved: suitable for insulated ceilings and wet-location applications
- Triac dimmable standard: 120V AC Triac dimmable driver included
Recommended applications
- Sloped ceilings up to 20°
- General recessed lighting
- Accent lighting
- Artwork and feature lighting
- Wall washing
- Bathrooms and wet-rated ceiling areas
- Soffits and covered exterior ceiling applications where permitted by code
- Residential and light commercial recessed lighting
Key specifications
| Model Family | LSG3 |
|---|---|
| Fixture Type | 3" Square Regressed Gimbal LED |
| Applications | Sloped ceilings up to 20°, general lighting |
| Energy Used | 7.5 W |
| Color Temperature Options | 2700K / 3000K / 3500K / 4100K / 5000K / Dim-to-Warm / 5CCT |
| 5CCT Selectable Range | User selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| Dim-to-Warm Range | 3000K to 2000K |
| Light Output | 580 / 600 / 620 / 630 / 650 lm; DTW listed at 500 lm |
| Halogen Equivalent | 50 W |
| Beam Angle | 38° standard or optional 15° spot, with 20° tilt and 360° rotation |
| CRI | 90+ |
| Default Driver Input | 120V AC, Triac dimmable |
| Optional Driver Input | 120V-347V AC, 0-10V dimmable |
| Optional 0-10V Driver | LLL-LD0716T, ordered separately |
| Junction Box Wire Capacity | Max 5 No. 12 AWG or 8 No. 14 AWG |
| Power Factor | 0.95 |
| Approved Location | Insulated Ceiling & Wet Locations |
| IP Rating | IP54 |
| Air Tight | Yes |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -40°F (-40°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 3 1/4" ID, 4 1/4" square OD |
| Cut Out | 3 1/4" to 3 1/2" |
| Ceiling Clearance Required | 3 1/2" |
| Certification | cULus |
| Warranty | 10 Year Residential / 5 Year Commercial |
Available trims

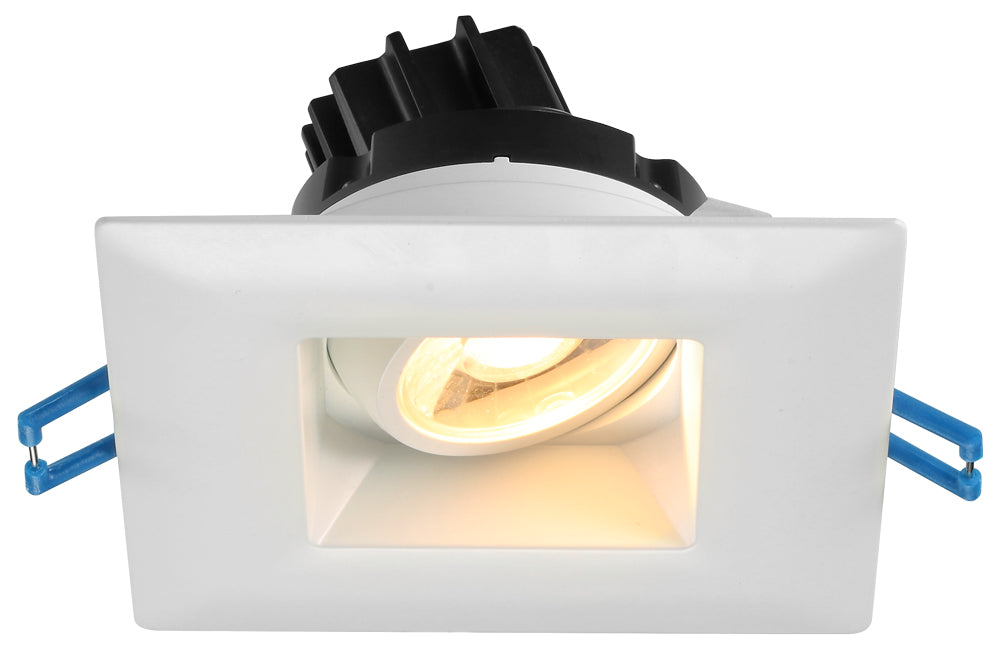

- WH: White trim

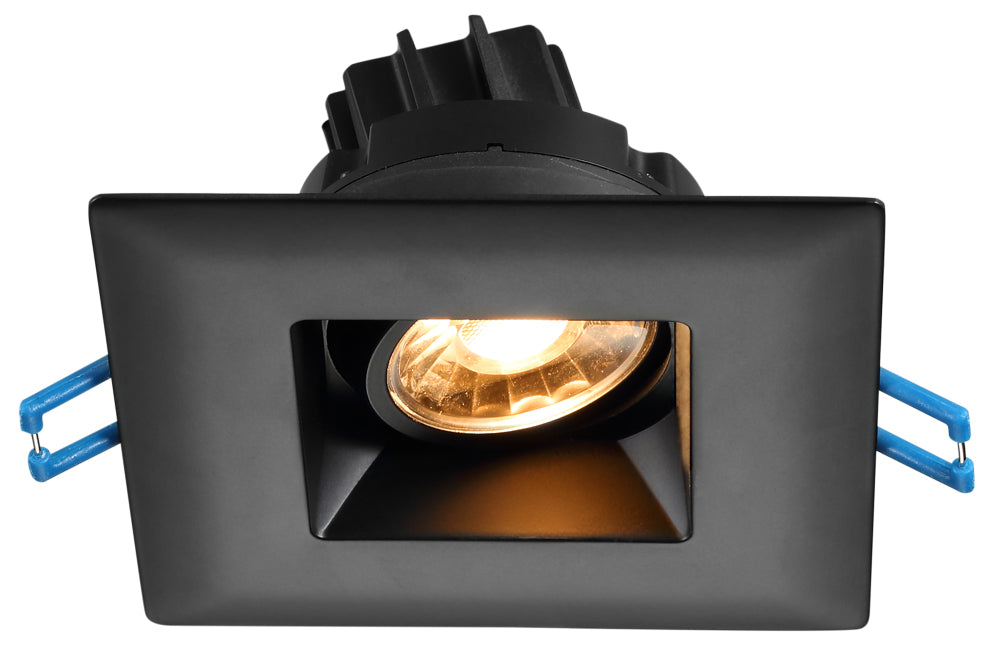

- BK: Black trim
Ordering options
- LSG3-27K-WH: 2700K, White trim, 38° beam
- LSG3-30K-WH: 3000K, White trim, 38° beam
- LSG3-35K-WH: 3500K, White trim, 38° beam
- LSG3-40K-WH: 4000K / 4100K family option, White trim, 38° beam
- LSG3-50K-WH: 5000K, White trim, 38° beam
- LSG3-32K-WH: Dim-to-warm 3000K-2000K, White trim, 38° beam
- LSG3-5CCT-WH: 5CCT selectable, White trim, 38° beam
- LSG3-27K-BK: 2700K, Black trim, 38° beam
- LSG3-30K-BK: 3000K, Black trim, 38° beam
- LSG3-35K-BK: 3500K, Black trim, 38° beam
- LSG3-40K-BK: 4000K / 4100K family option, Black trim, 38° beam
- LSG3-50K-BK: 5000K, Black trim, 38° beam
- LSG3-32K-BK: Dim-to-warm 3000K-2000K, Black trim, 38° beam
- LSG3-5CCT-BK: 5CCT selectable, Black trim, 38° beam
Beam angle note
For the standard 38° beam angle, leave the beam angle field blank. Add -15D for the optional 15° spot beam on compatible single-CCT models. Dim-to-warm and 5CCT versions are available in 38° only.
Compatible accessories
- EXC6: 6 ft low-voltage extension cable
- EXC20: 20 ft low-voltage extension cable
- RIP312: Flat rough-in plate
- FRP312: Flanged plate with hanger bars
- LLL-LD0716T: Optional 120V-347V 0-10V dimmable driver, ordered separately
Installation notes
- Cut hole in ceiling and snap fixture into the opening with attached spring clips.
- Ceiling clearance required is 3 1/2".
- The 120V Triac dimmable driver is included as standard.
- The optional 120V-347V 0-10V dimmable driver is ordered separately.
- Low-voltage extension cable runs are limited to a maximum of 40 ft.
- Fixture is Type IC rated, air-tight, and approved for insulated ceilings and wet locations.
- 3" square regressed gimbal LED downlight
- 7.5W power consumption with 50W halogen equivalent
- 20° tilt and 360° rotation for directional aiming
- 38° standard beam or optional 15° spot beam
- Available in single CCT, dim-to-warm, and 5CCT selectable versions
- CRI 90+ color rendering
- Type IC, air-tight, and wet location approved
- 120V Triac dimmable driver included
- Optional 120V-347V 0-10V driver available separately
- White and black trim options
Frequently Asked Questions
What is the Lotus LSG3?
The LSG3 is a 3-inch square regressed gimbal LED downlight designed for sloped ceilings up to 20°, general lighting, and directional recessed lighting applications.
Is the LSG3 adjustable?
Yes. The fixture provides 20° tilt and 360° rotation, allowing the beam to be aimed for accent lighting, general lighting, or sloped ceiling applications.
Does the LSG3 require a recessed housing?
No. The LSG3 is Type IC rated and does not require a recessed housing.
Is the driver included?
Yes. The standard 120V AC Triac dimmable driver is included. An optional 120V-347V AC 0-10V dimmable driver is available separately as model LLL-LD0716T.
What color temperature options are available?
The LSG3 is available in single CCT options, dim-to-warm 3000K-2000K, and 5CCT selectable versions. The 5CCT model allows field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Can I order a 15° beam angle?
Yes, the optional 15° spot beam can be ordered on compatible single-CCT models using the -15D option. Dim-to-warm and 5CCT versions are available in 38° only.
Can the LSG3 be used in wet locations?
Yes. The spec sheet lists the LSG3 as approved for insulated ceilings and wet locations, with an IP54 rating.
What trims are available?
The LSG3 is available with white or black trim.
