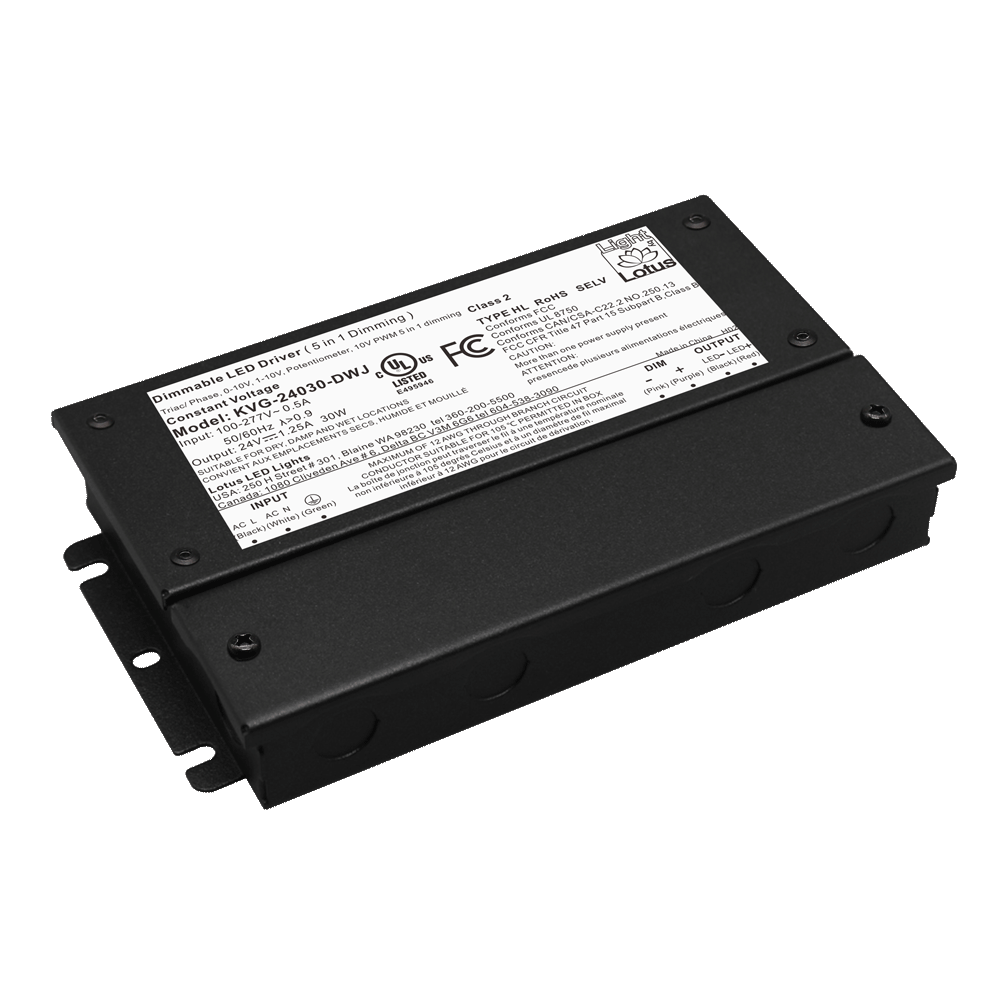

Lotus KVG-24030-DWJ 24V DC 30W Dimmable LED Driver
Description: Professional-grade 30W Constant Voltage LED Driver with an integrated junction box. Features "5-in-1" dimming technology, making it compatible with almost any residential or commercial dimming system.
Product Overview
The KVG-24030-DWJ is a highly versatile 24V DC power supply designed for LED strips, linear lighting, and other constant voltage fixtures. It features a built-in wiring compartment (junction box) that eliminates the need for external enclosures, simplifying installation. With a high power factor and a waterproof IP66 rating, this driver is suitable for dry, damp, and wet locations. It automatically detects the dimming signal, supporting Triac, ELV, MLV, and 0-10V protocols.
Key Features
- 5-in-1 Dimming: Compatible with Triac, ELV, MLV, 0-10V, 1-10V, Potentiometer, and 10V PWM.
- Integrated Junction Box: Built-in wiring compartments for easy line-voltage and low-voltage connections.
- All-Weather Rated: IP66 waterproof housing suitable for wet locations and outdoor use.
- Flicker-Free: Provides smooth, continuous dimming from 100% down to 0.1%.
- Safety Protected: Includes short circuit, over-loading, and over-temperature protection with auto-reset.
Technical Specifications
| Max Wattage | 30 Watts |
| Input Voltage | 100V - 277V AC (Universal) |
| Output Voltage | 24V DC (Constant Voltage) |
| Output Current | 1.25A |
| Dimming Protocols | Forward Phase (Triac), Reverse Phase (ELV/MLV), 0-10V, 1-10V, PWM |
| Power Factor | > 0.98 (High Efficiency) |
| Environmental Rating | IP66 (Wet Location Rated) |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Class Rating | Class 2 Rated |
| Certifications | UL Listed, cUL, FCC, RoHS |
| Warranty | 5-Year Limited Warranty |
Dimensions & Construction
| Length | 6.5" (165 mm) |
| Width | 3.75" (94.5 mm) |
| Height/Depth | 1.57" (40 mm) |
| Housing Material | Sturdy Aluminum Enclosure |
| Knockouts | Standard 1/2" trade size knockouts for conduit and wiring |
| Mounting | Surface mount tabs for secure installation |
