Lotus KV2-24015 15W 24V TRIAC Dimmable Mini LED Drivers | Bare or J-Box
Lotus KV2-24015 15W 24V TRIAC Dimmable Mini LED Drivers | Bare or J-Box
Special Order / Call for ETA
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:KV2-24015-TDW
Choose the correct 24V undercabinet driver: The Lotus KV2-24015 family is a 15W-rated Class 2, constant-voltage 24V DC hardwired LED power-supply family specified by Lotus for the LBL-UCB-4-5CCT-ND undercabinet LED bars. Both versions accept 120–277V AC, 50/60Hz mains and work with compatible TRIAC / ELV / MLV phase dimmers, but they have different physical packaging, junction-box arrangements and lower ambient operating limits. No luminaires are included with either driver.
Choose by enclosure and installation
| Exact manufacturer SKU | Enclosure | Dimensions | Manufacturer ambient minimum |
|---|---|---|---|

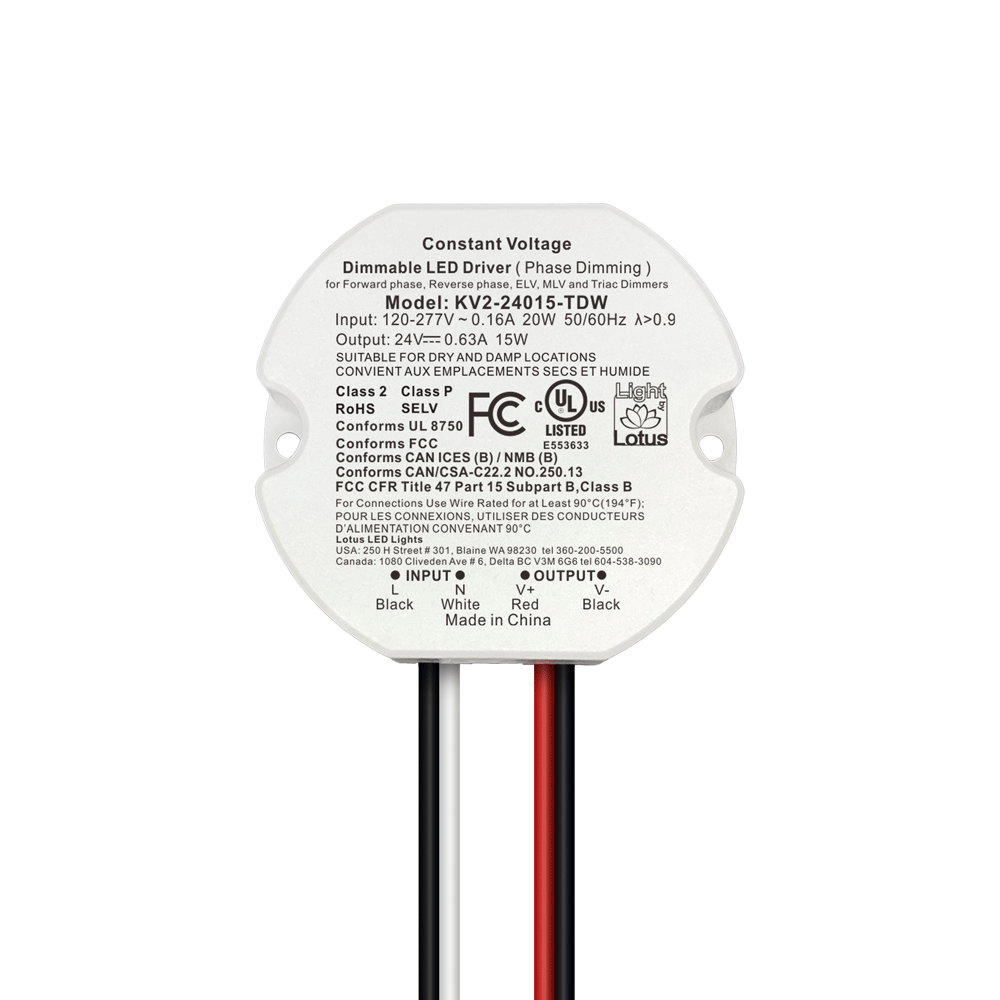

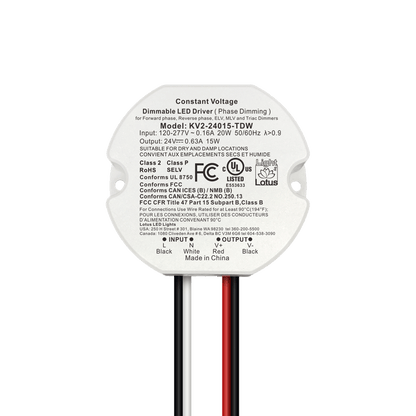

| KV2-24015-TDW | Super-compact standalone mini driver; no integrated junction-box enclosure | 2⅛ in × 1⅞ in × 15⁄₁₆ in, according to drawing | −40°C |

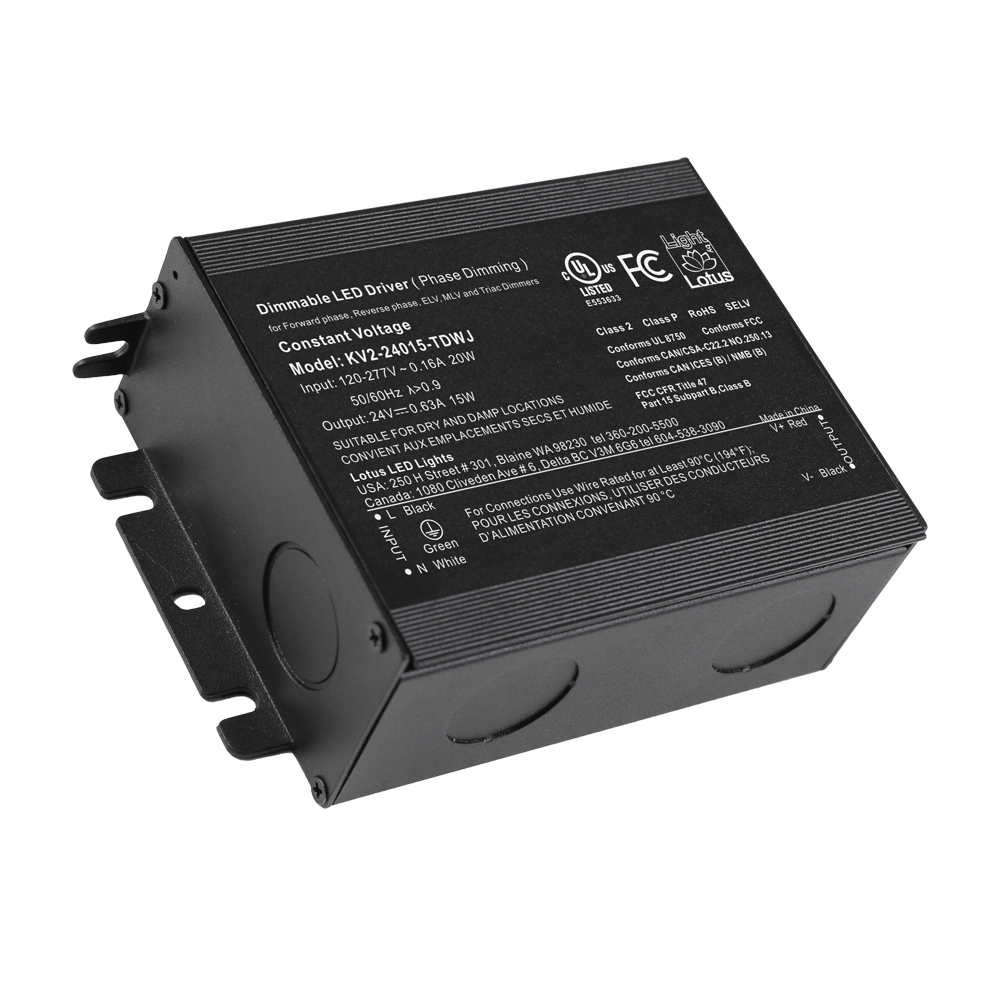

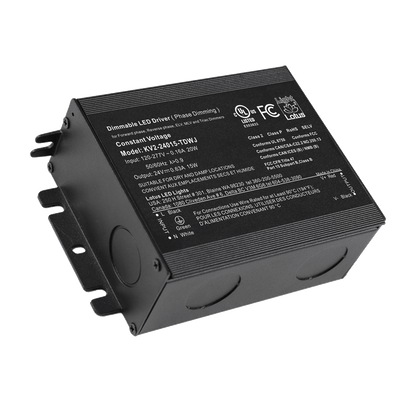

| KV2-24015-TDWJ | Driver inside junction box with four knockouts and ground lead | 4½ in × 3⅛ in × 1⁹⁄₁₆ in | −20°C |
Selection rule: Order TDWJ if the specified fixture installation needs the manufacturer-designed driver-in-J-box format with ground lead and four knockouts. Choose TDW only where a separate approved electrical enclosure/wiring arrangement can be provided as required; the TDW is not a pre-enclosed junction box. The differing low-temperature limits must not be conflated.
Shared manufacturer electrical specification
| Rated maximum output | 15W at 24V DC, 0.625A (nominal); regulated output 24V DC ±0.5V |
|---|---|
| Input | 120–277V AC, 50–60Hz, maximum 0.16A; line-side supply, not 24V AC input |
| Manufacturer operating LED load | 10%–80% of rated capacity: 1.5W minimum to 12W maximum. Do not load this 15W-rated driver to 15W in the specified operating range. |
| Dimming | TRIAC / ELV / MLV phase dimming, 5%–100% with appropriate compatible control |
| Efficiency | Manufacturer figure 77% at 120V AC / 74% at 277V AC |
| Power factor / harmonic distortion | Active PFC, >0.90 at full load; typical full-load THD ≤10% |
| PWM frequency | 20kHz, manufacturer's flicker-free description |
| Protections | Short circuit, overload and overheating with automatic recovery |
| Locations / humidity | Dry or damp (not wet); 20%–90% relative humidity |
| Operating upper limit | +50°C for both variants; follow model-specific load-versus-ambient derating curves |
| Listing / warranty | cULus, Class 2, Class P, FCC Title 47 Class B; 3-year Lotus manufacturer warranty |
Correct driver load and matching LED bars
Lotus identifies LBL-UCB-4-5CCT-ND as the intended undercabinet bar family. Confirm the combined actual load of the intended bars, conductor limits, dimmer compatibility and wiring plan. The specified acceptable 1.5–12W LED load supersedes interpreting 15W nameplate output as permissible 15W operating LED load. Do not substitute this small phase-dimmable KV2 for a KVE 24V 5-in-1 driver or use a 12V-only LED fixture. The customer should choose the electrical enclosure style independently of wattage because both share nominal 15W ratings.
Installation and safety
Qualified electrical installation required. 120–277V AC connects to the AC input, while 24V constant-voltage LED bars connect on the low-voltage output. Follow the model's wiring diagram, temperature derating curve, manufacturer-recommended wire routing and electrical codes. The TDWJ has the integrated J-box with four knockouts and ground lead; TDW's super-compact body does not imply an included J-box.
Buyer FAQs
Why is a 15W driver limited to 12W?
Lotus publishes a recommended min/max LED operating load of 10% to 80%, equivalent to 1.5W–12W. Rated maximum capacity and specified design load are not interchangeable.
Does the bare driver include a junction box?
No. KV2-24015-TDWJ is the model specifically supplied in a J-box. Select based on installation requirements.
Can both be used in the same cold environment?
No. The standalone TDW specifies −40°C minimum, while the enclosed TDWJ specifies −20°C minimum; both specify +50°C maximum.
Is there a 0–10V or five-mode dimming feature?
Not on these sheets. The KV2 family specifies TRIAC / ELV / MLV phase dimming from 5%–100%, rather than KVE's five control interfaces.
Are LED light bars or a wall dimmer included?
No. Each variant is one driver; lighting bars and the external dimming control are separate.
Download the exact manufacturer sheet
- TDW standalone mini driver specification and wiring
- TDWJ driver in junction box specification and wiring
Availability: The Lotus October 2026 announcement forecast release months for these products; these forecasts do not confirm live supplier stock, Simply Controlled inventory or a guaranteed shipping date. Confirm before scheduling projects.
