Lutron GRX-PCBL-46L-500 Long-Distance Plenum-Rated Control Link Cable

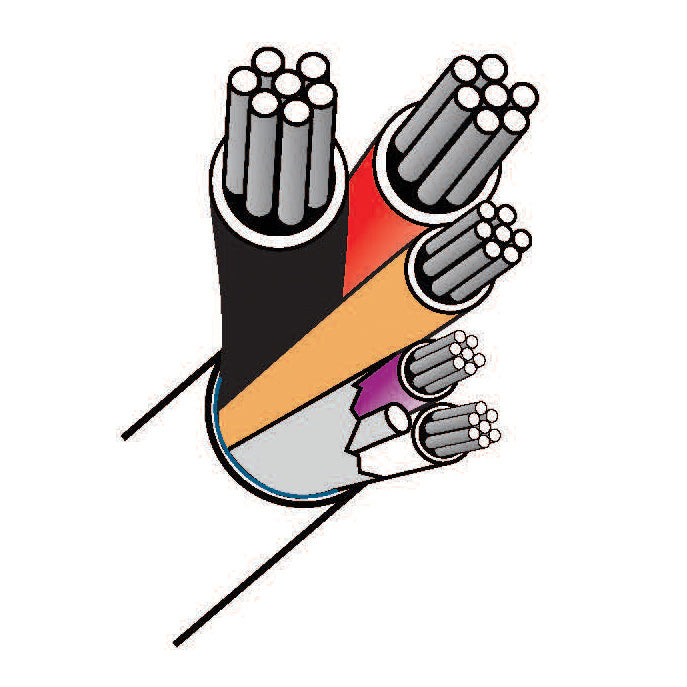

The Lutron GRX-PCBL-46L-500 is a high-performance, 5-conductor composite cable designed for the most demanding architectural lighting control installations. This "Long-Distance" (L) variant is specifically engineered for GRAFIK Eye 4000/6000 and HomeWorks systems where the distance between control units and power panels exceeds standard limits.
By utilizing heavy-duty 12 AWG conductors for power and common, this cable significantly reduces voltage drop over long wire runs. It also includes a shielded, twisted 22 AWG pair for reliable data (Mux Data) transmission. As a Plenum-rated (CL3P/CMP) cable, it is safety-certified for installation in environmental air handling spaces, such as commercial drop ceilings, without the need for conduit.
Key Features
- Long-Distance Performance: 12 AWG power/common conductors allow for extended control link runs compared to standard 18 AWG cables.
- Plenum Rated (CL3P/CMP): Fire-resistant jacket is approved for use in building air distribution systems (plenum spaces).
- High Signal Integrity: Features a shielded 22 AWG twisted pair with a 24 AWG drain wire to protect data communication from interference.
- One-Cable Solution: Combines power, common, and data lines in a single 0.3-inch diameter jacket to streamline complex wire pulls.
- System Compatibility: Optimized for GRAFIK Eye 4000 and 6000 Series, as well as HomeWorks and high-capacity QS Link systems.
- Durable Construction: UL and CSA listed for professional-grade commercial and industrial environments.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | GRX-PCBL-46L-500 |
| Conductor Count | 5 Conductors (Total) + Drain Wire |
| Power/Common Gauge | 12 AWG (2 Conductors) |
| Data Pair Gauge | 22 AWG (2 Conductors, Twisted/Shielded) |
| Drain Wire Gauge | 24 AWG |
| Jacket Rating | Plenum Rated (CMP, CL3P) |
| Voltage Rating | 300 Volts |
| Outer Diameter | 0.30 Inch |
| Length | 500 ft (152.4 m) Spool |
Applications
- GRAFIK Eye 4000 & 6000 Series Control Links
- Long-Distance HomeWorks QS Wiring
- Extended Commercial Lighting Control Networks
- Wired QS Link Communication for Large Facilities
