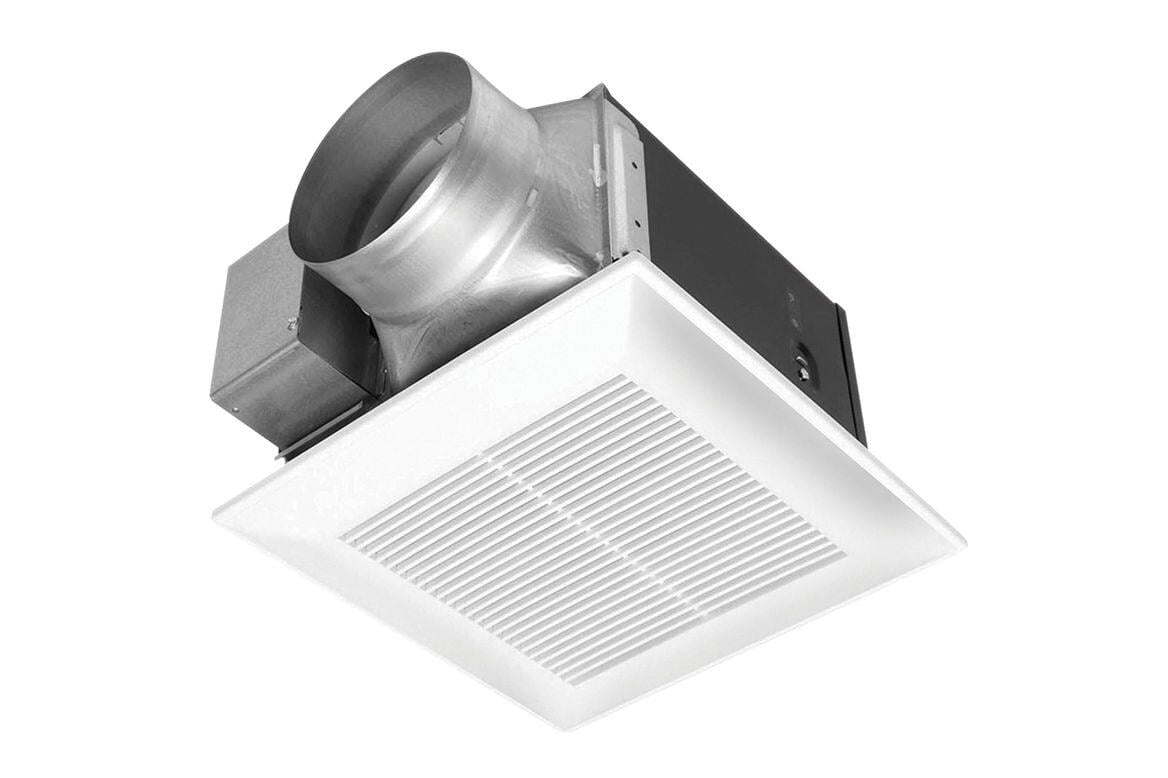

WhisperCeiling™ 190 CFM | FV20VQ3
WhisperCeiling™ 190 CFM | FV20VQ3
Available to order — ships from incoming stock
Typically ships in 3–7 Business Days (Western Canada) · 3–7 Business Days (Eastern Canada)
SKU:FV20VQ3
Shipping terms (Free over $300) calculated at checkout.
WhisperCeiling large volume ceiling-mount fan is a time-tested and customer-approved powerful yet quiet and energy-efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.
- Large volume (190) CFM options designed for light commercial applications
- UL listed for tub/shower enclosure when GFCI protected
- Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code
| Model | FV-20VQ3 |
|---|---|
| Advanced Features | Single Speed |
| Air Volume Exhaust (CFM) | 190 @ 0.1" SP, 145 @ 0.25" SP |
| Master Carton Dimensions (HxWxD) | 19-7/16" x 15-1/2" x 12-1/8" |
| CFM | Greater than 150 |
| Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
| Construction Type | single Family/ Manufactured Housing/. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Current (Amps) | 0.34A |
| Ventilation Design Approach | Continuous Ventilation. Spot Ventilation |
| Duct Diameter | 6" |
| Energy Efficiency (CFM/Watt) | 4.6 CFM/W |
| ENERGY STAR Certified | Yes |
| Fan Type | Fan Only |
| Grille Size (in sq.) | 15 |
| Industry | Residential. Light Commercial |
| Installation | Ceiling |
| Motor Type (AC/DC) | AC |
| Mounting Opening (in sq.) | 12-3/16" |
| Mounting Options | Ceiling Mount. Tub Shower (UL) |
| Noise (Sones) | 190 @ 0.1" SP = 0.8, 145 @ 0.25" SP = 1.4 |
| Power Consumption (Watts) | 43.7W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperCeiling |
| Radiation Damper Available | No |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
| Warranty | 3 Year Parts, |
| Master Carton Gross Weight (lbs.) | 16.8 |
