WhisperCeiling DC™ LED with Pick-A-Flow™ Speed Selector (50-80-110 CFM) | FV0511VQL1
WhisperCeiling DC™ LED with Pick-A-Flow™ Speed Selector (50-80-110 CFM) | FV0511VQL1
Vendor: Panasonic
SKU: FV0511VQL1
Regular price
$268.99
Sale price
$268.99
Regular price
Unit price
/per
Shipping calculated at checkout.
In stock

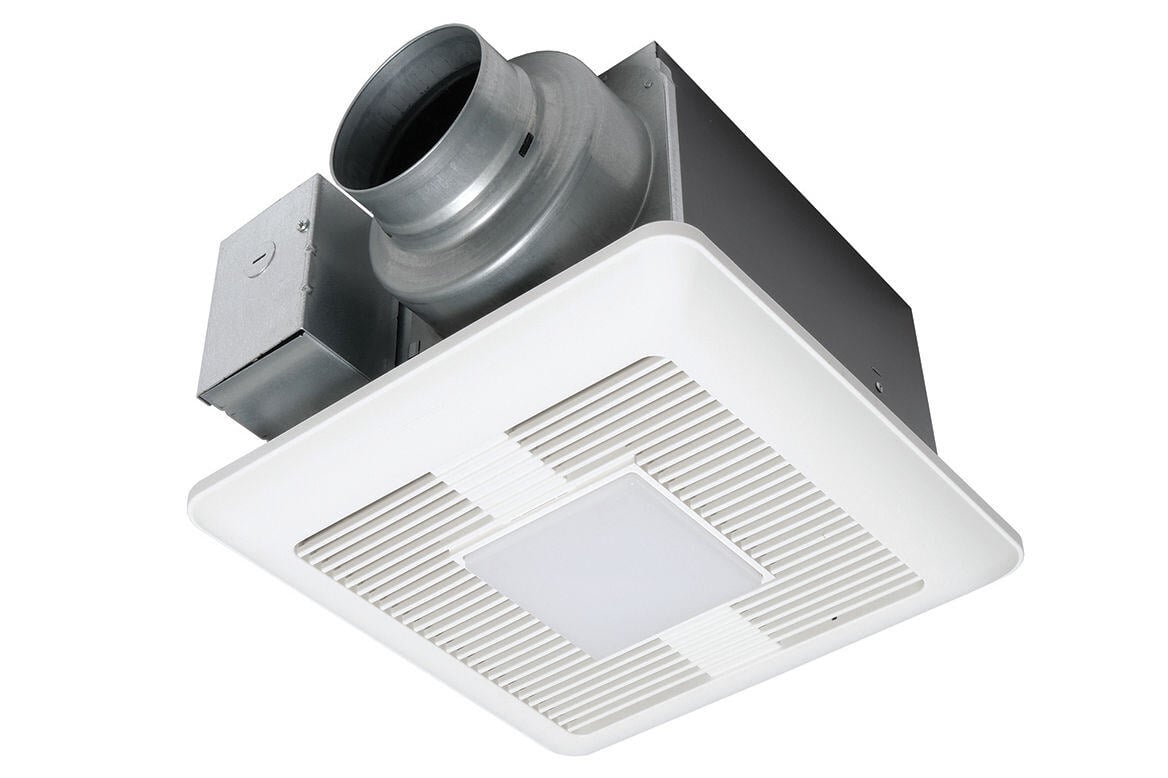

WhisperCeiling® DC Precision Spot Ventilation Fan/ Light with built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast® installation bracket. This fan is ideal for bathroom ventilation. It can be used to comply with the latest codes and standards.
- Revolutionary ECM motor with SmartFlow® technology for optimum CFM output
- Pick-A-Flow® Speed Selector – one fan, you choose the CFM (110-130-150)
- Flex-Z Fast® bracket provides flexible, fast & trouble-free installation, even from below the ceiling
- Lighted models incorporate one long-life, 10W dimmable LED chip panel with less than 1W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom
| Model | FV-0511VQL1 |
|---|---|
| Advanced Features | Single Speed |
| Air Volume (CFM) | 110, 110, 80, 83, 50, 50 |
| Blower Wheel Type | Sirocco |
| California Title 24 Compliant | Yes |
| Color Rendering Index | 90 |
| Color Temperature (Kelvin) | 3,000 |
| Current (Amps) | 0.18, 0.26, 0.11, 0.19, 0.07, 0.12 |
| Duct Diameter | 4" or 6" |
| Energy Efficiency (CFM/Watt) | 10.3, 7.0, 13.7, 7.7, 14.1, 7.8 |
| ENERGY STAR® Certified | Yes |
| Grille Size (in sq.) | 13" |
| Gross Weight (lbs) | 11.7 |
| Lamp Watts | 10.0 |
| Lumens (lm) | 700 |
| Lumens Per Watt (LPW) | 70 |
| MAX. Current (Amps) | 0.30 |
| Mfg in ISO 9001 Certified Facility | Yes |
| Motor Type (AC/DC) | DC |
| Mounting Opening (in sq.) | 10-1/2" |
| Night Light | 0.2 |
| Noise (Sones) | 0.4, 0.9, <0.3, 0.6, <0.3, 0.4 |
| Power Consumption (Watts) | 10.9, 16.1, 6.0, 11.0, 3.9, 7.1 |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperCeiling DC |
| Rated Life (hours) | 50,000 |
| Speed (RPM) 1342 1480 | 1016, 1268, 867, 1185, 768, 1097 |
| Static Pressure in inches w.g. | 0.1, 0.25, 0.1, 0.25, 0.1, 0.25 |
| Thermal Fuse Protection | Yes |
| Type of Lamp Socket | LED Chip |
| Type of Motor Bearing | Ball |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
| UL tub/Shower Enclosure | Yes |
| Washington VIAQ Code | Yes |
