Panasonic FV0511VF1 WhisperFit DC Bathroom Exhaust Fan | 50-110 CFM

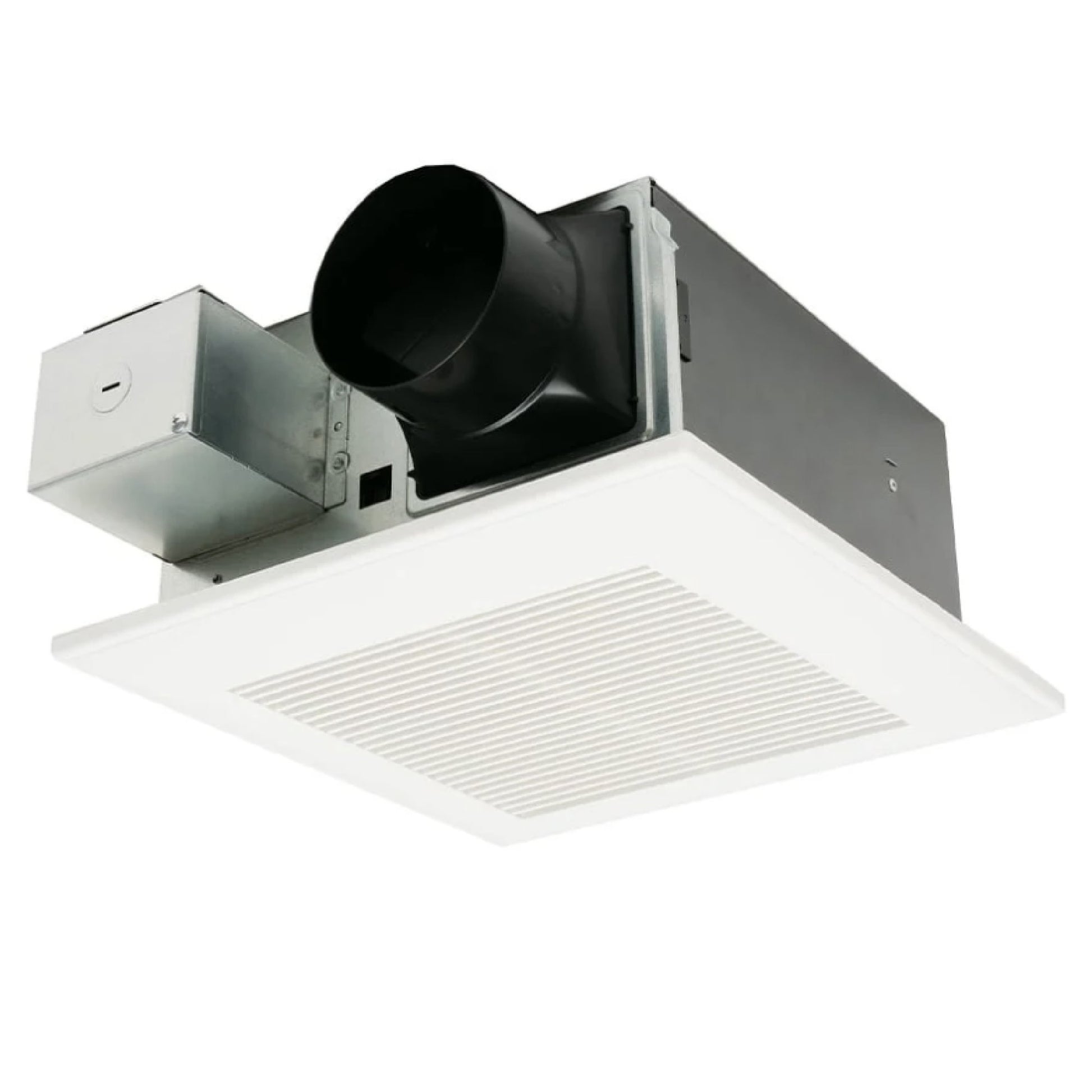

Panasonic FV0511VF1 WhisperFit DC Bathroom Exhaust Fan

Quick answer: The Panasonic FV0511VF1 WhisperFit DC is a low-profile bathroom ventilation fan with a Pick-A-Flow airflow selector for 50, 80, or 110 CFM. It uses an energy-efficient ECM DC motor with SmartFlow Technology and is positioned as a retrofit-friendly ventilation solution for bathrooms and shallow ceiling cavities.

Best used for

• Bathroom ventilation retrofit projects where a low-profile fan is needed
• Projects requiring selectable airflow from one fan model: 50, 80, or 110 CFM
• Installations where a Flex-Z Fast bracket and alignment guides help simplify placement
• Ceiling cavities using 2" x 6" joist size or larger, as listed on the current PDP

Key product details

• Brand/model: Panasonic FV0511VF1
• Product family: WhisperFit DC
• Airflow selector: Pick-A-Flow 50, 80, or 110 CFM
• Motor: ECM DC motor with SmartFlow Technology as listed on this PDP
• Installation support: single-hinged Flex-Z Fast bracket, pre-installed alignment guides, and temporary clip
• Housing depth listed on this PDP: 5-5/8 inches
• Application: bathroom ventilation and retrofit exhaust fan projects

Technical details from the current listing

• Built-in Pick-A-Flow airflow selector allows 50, 80, or 110 CFM selection
• SmartFlow Technology is listed for optimal CFM output
• Single-hinged Flex-Z Fast bracket is listed for flexible installation
• Low-profile housing is listed for 2" x 6" joist size or larger
• Current listing says this fan can be used to comply with ASHRAE 62.2, LEED, IAP, and California Title 24
