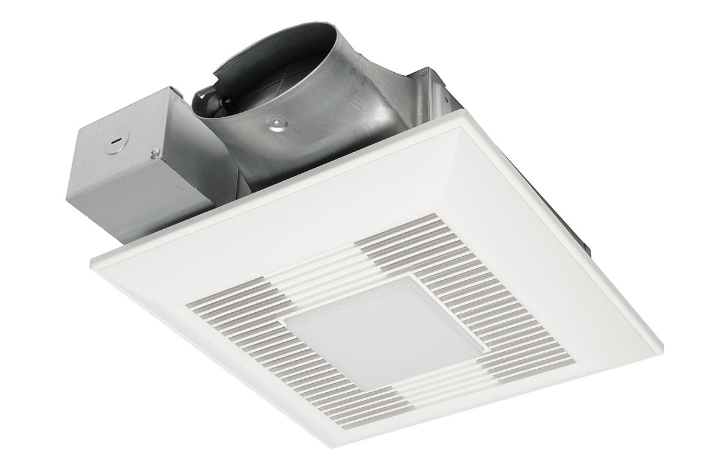

WhisperValue DC™ LED with Pick-A-Flow™ Speed Selector (50-80-100 CFM) | FV0510VSL1
WhisperValue DC™ LED with Pick-A-Flow™ Speed Selector (50-80-100 CFM) | FV0510VSL1
Ships in 3–5 Days (Western Canada) · 3–5 Days (Eastern Canada)
In stock
The WhisperValue® DC Fan and LED Light is the ultimate low-profile spot bathroom ventilation fan. It is ideal for residential construction, including single-family homes, multi-family buildings and manufactured homes. Featuring a revolutionary ECM motor with SmartFlow® technology, it combines exceptional performance with an ultra-slim design, making it the lowest-profile ENERGY STAR®-rated fan on the market.
One of its standout features is the Pick-A-Flow® Airflow Selector, which lets you choose between 50, 80, or 100 CFM. This customizable airflow ensures the fan meets a variety of ventilation requirements, stays compliant with building codes, and minimizes the chance of callbacks.
- Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance
- SmartFlow® Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output
- Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR®-certified fan available, making it perfect for tight spaces and easy installation, even in 2" x 4" stud walls
- Integrated 10W dimmable LED chip panel with less than1W LED nightlight for warm, energy-efficient illumination (nightlight must be wired separately)
- Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts
| Model | FV-0510VSL1 |
|---|---|
| Air Volume Exhaust (CFM) | 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP |
| Master Carton Dimensions (HxWxD) | 9.06 x 14.17 x 16.93 |
| CFM | 50-70. 80-110 |
| Other Approved Codes and Standards | ASHRAE 62.2, LEED, California Title 24, Washington VIAQ |
| Color Rendering Index | 90 |
| Color Temperature (Kelvin) | 3,000 |
| Construction Type | Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling |
| Current (Amps) | 50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A |
| Ventilation Design Approach | Continuous Ventilation. Spot Ventilation |
| Duct Diameter | 4" Oval |
| Energy Efficiency (CFM/Watt) | 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W |
| ENERGY STAR® Certified | Yes |
| Fan Type | Fan Only |
| Grille Size (in sq.) | 13" |
| Industry | Residential. Light Commercial |
| Installation | Ceiling Mount, Wall Mount (UL), Tub/Shower (UL) |
| Lamp Watts | 10 |
| Lumens (lm) | 700 |
| Lumens Per Watt (LPW) | 70 |
| Motor Type (AC/DC) | ECM |
| Mounting Opening (in sq.) | 10-1/2" |
| Mounting Options | Ceiling Mount. Wall Mount (UL). Tub/Shower (UL) |
| Night Light | 0.2 |
| Noise (Sones) | 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3 |
| Power Consumption (Watts) | 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W |
| Power Rating (V/Hz) | 120/60 |
| Product Family Name | WhisperValue DC |
| Radiation Damper Available | Yes |
| Rated Life (hours) | 50,000 |
| Type of Lamp Socket | LED chip |
| UL Listed for Tub/Shower Enclosure when GFCI Protected | Yes |
| Warranty | 6 year DC Motor, 3 Year Parts |
| Master Carton Gross Weight (lbs.) | 9.92 |
