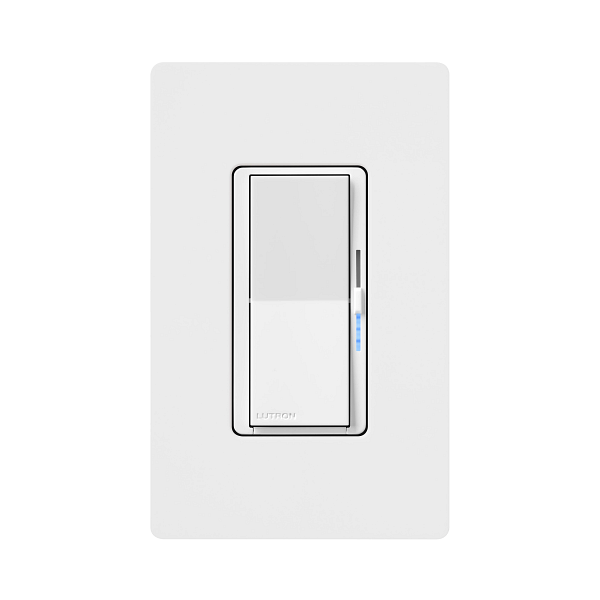

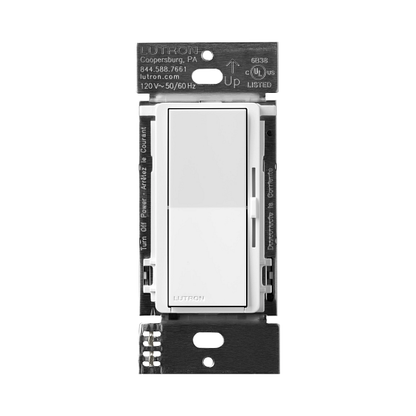

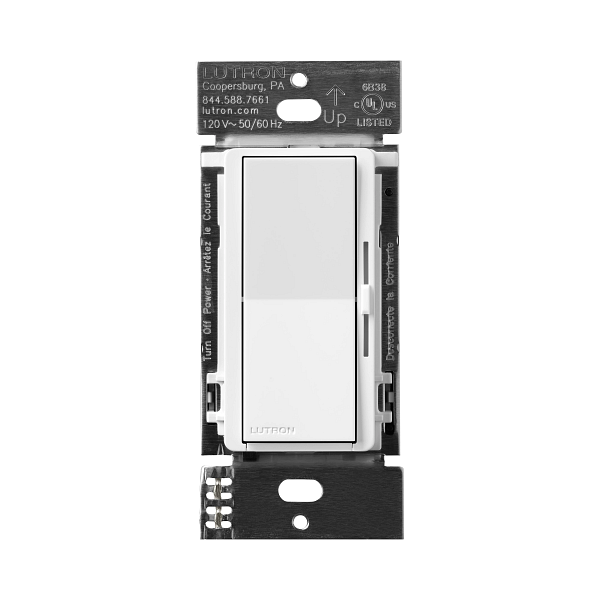

Lutron Diva LED+ Pro Phase-Selectable Dimmer | DV-PS
Lutron Diva LED+ Pro Phase-Selectable Dimmer | DV-PS
Available to order — ships from incoming stock
Typically ships in 2–5 Business Days (Western Canada) · 3–6 Business Days (Eastern Canada)
SKU:DV-PSR-WH-C
Dealer decision summary: The Lutron Diva LED+ Pro DV-PS is the lower-capacity phase-selectable Diva for common professional LED, ELV, MLV and incandescent/halogen applications. It is the straightforward choice when a job benefits from multi-load flexibility but does not require the higher Pro Max capacities of DV-PRO.
DV-PS is rated for up to 150W dimmable LED, 300W ELV, 250VA MLV, or 300W incandescent/halogen at 120V. Neutral is optional for LED and incandescent/halogen and required for ELV and MLV. The product is offered in Gloss White.
When to specify DV-PS
- Typical lower-wattage LED installations where phase-selectable flexibility is still valuable.
- ELV tape or strip-light projects within the 300W ELV rating.
- MLV transformer applications within the 250VA rating.
- Projects requiring a Diva paddle/slider interface and up to 10 control locations.
- Jobs where DV-PRO capacity or its additional gloss colour options are unnecessary.
Load, neutral and phase reference
| Load type | Maximum rating | Neutral |
|---|---|---|
| Dimmable LED | 150W | Optional |
| Electronic low voltage (ELV) | 300W | Required |
| Magnetic low voltage (MLV) | 250VA | Required |
| Incandescent / halogen | 300W | Optional |
DV-PS supports forward- and reverse-phase operation. For low-voltage LED lamps and transformer loads, verify the complete lamp/transformer/dimmer combination using Lutron application guidance.
Multi-location control
Use a mechanical switch for a conventional 2-location application, or pair one DV-PS with up to nine ST-AS accessory switches for control from up to 10 locations.
Installer-facing features
- Diva paddle with captive slider and soft-glow light-level indicator.
- Advanced Programming Mode for high/low trim, light-bar behaviour and phase selection.
- No ganging derating is required within the published DV-PS ratings.
- Indoor 120V wallbox control; coordinating Claro wallplate sold separately.
DV-PS vs. DV-PRO
Move to DV-PRO LED+ Pro Max for up to 250W LED, 500W ELV, 400VA MLV or 500W incandescent/halogen, or when the project requires additional gloss finish choices.
Model and ordering reference
Base model: DV-PS-WH. Canadian retail/on-shelf packaging is available as DV-PSR-WH-C. Lutron identifies the added packaging letter as a packaging variation rather than a change to the control itself.
