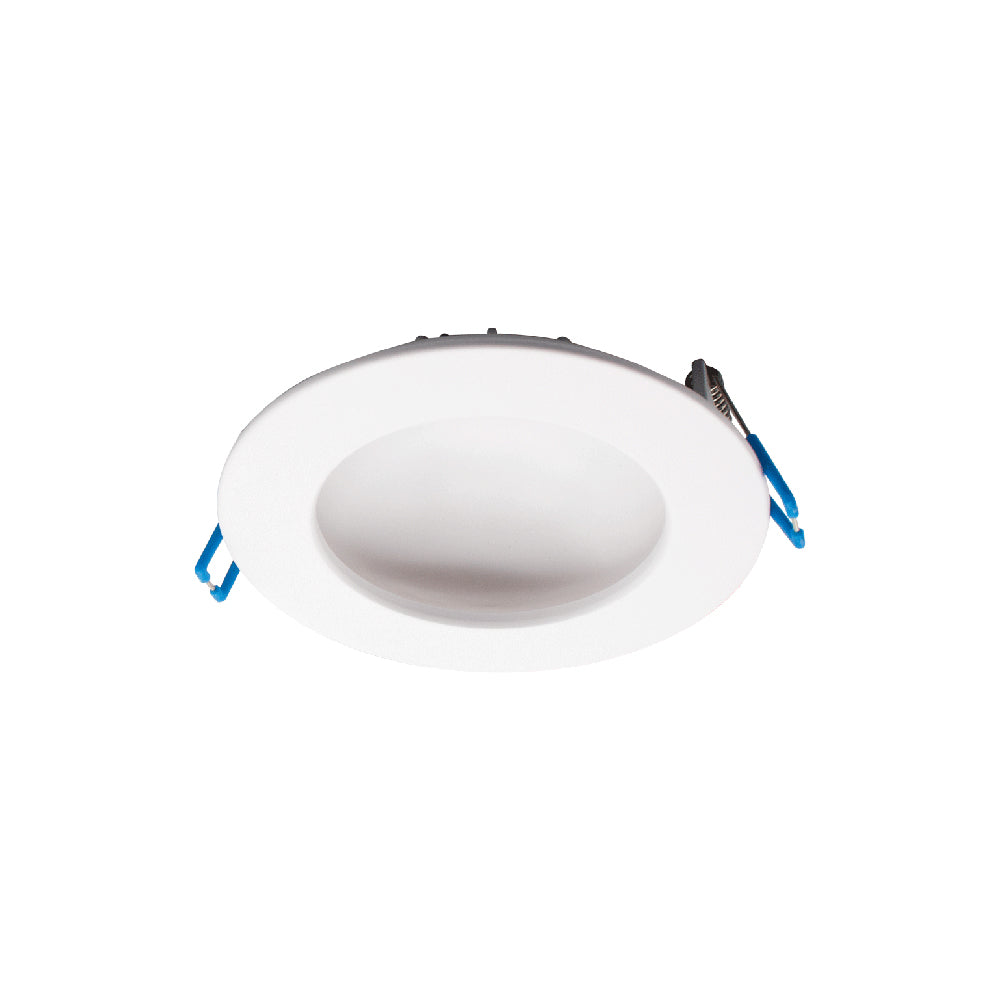

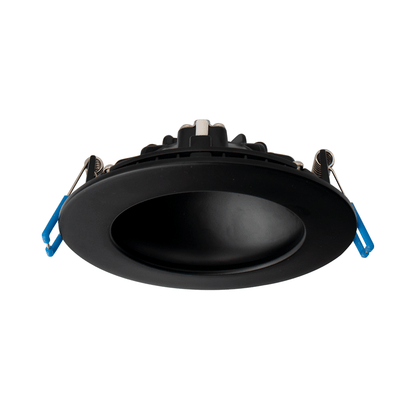

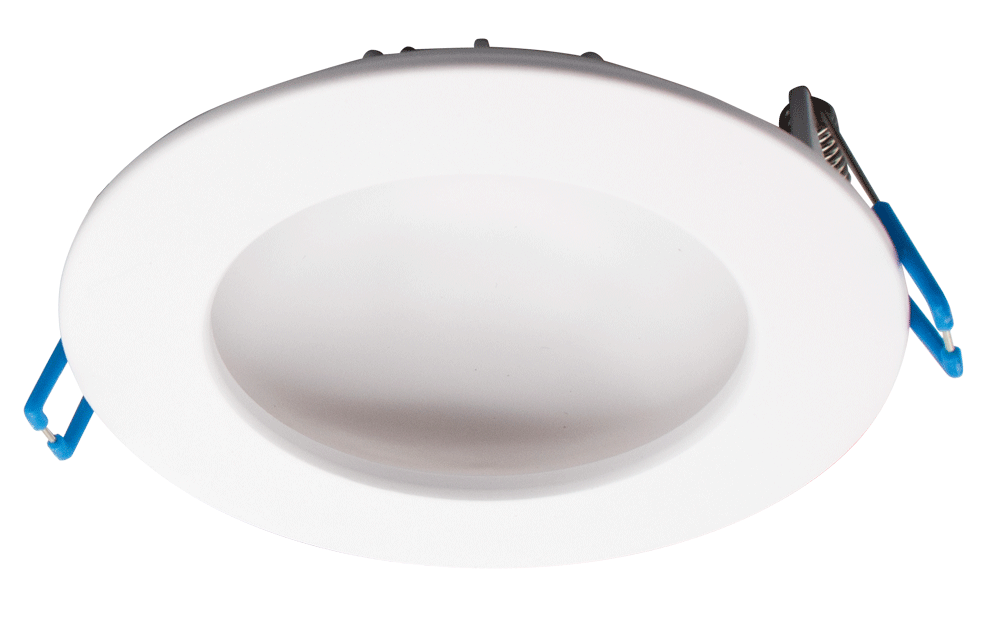

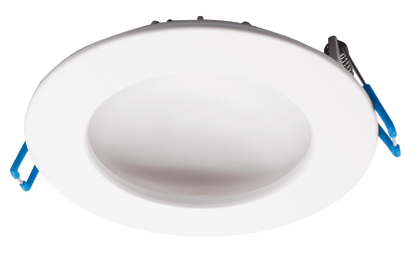

Lotus 4" Round Indirect Slim Recessed LED 12W | DS-LED-4-S12W

Overview

The Lotus LED 4-inch indirect slim recessed fixture is an architectural-spec solution designed specifically to provide comfortable, glare-free illumination. This low-profile luminaire is only 1 5/8" thick, making it ideal for renovations and new construction projects where ceiling space is limited.

Key Features

• Indirect Lighting: Engineered to project light upward against a internal reflector for significantly reduced glare and improved visual comfort.
• Field-Selectable CCT: Features a 5CCT user-selectable system (2700K to 5000K) or a "Dim to Warm" option (3000K to 2200K).
• IC Rated: Contractor-grade design approved for direct contact with insulation, requiring no separate recessed housing.
• Integrated Driver: Includes a driver inside the connection box, eliminating the need for a separate junction box and streamlining installation.
• High Color Rendering: Boasts a CRI 90+ rating for true and accurate color rendering in any interior application.

Technical Specifications

• Power: 12W
• Light Output (White Trim): 710 lm – 780 lm (5CCT) / 590 lm (DTW)
• Color Temperature: 5CCT (2700K, 3000K, 3500K, 4000K, 5000K) or Dim to Warm (3000K-2200K)
• CRI: 90+
• Beam Angle: 130°
• Input Voltage: 120V AC 50/60 Hz
• Dimming: TRIAC Dimmable (10% - 100%)
• Dimensions: ID 4 1/8", OD 4 3/4", Depth 1 5/8"
• Cut Out: 4 1/4" Round Hole
• Approved Location: Insulated Ceiling & Damp Locations
• Air Tight: Yes
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cETLus
• Warranty: 3 Year
