Monitor Audio W1M Creator Series Tier 1 In-Wall Speaker | CSW1M
Monitor Audio W1M Creator Series Tier 1 In-Wall Speaker | CSW1M
In Stock (Ready to Ship)
Typically ships in 4–8 Business Days (Western Canada) · 2–5 Business Days (Eastern Canada)
SKU:CSW1M
Dealer planning note: Sign in for Simply Controlled dealer pricing. Confirm project quantity, finish availability and lead time before releasing the BOM.

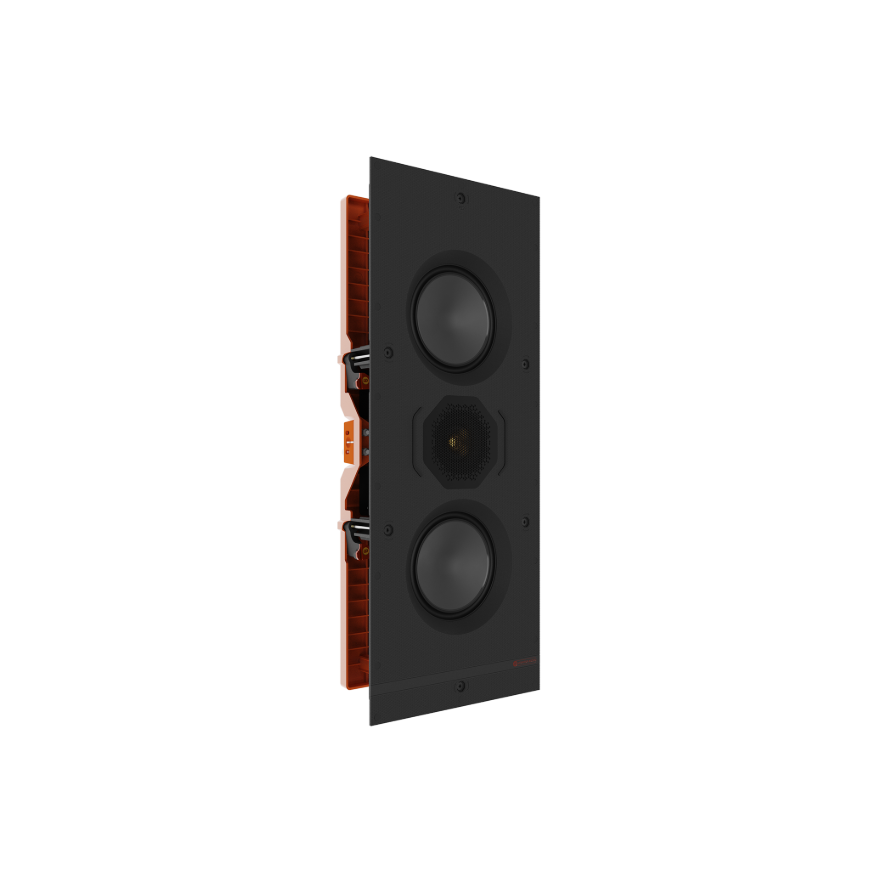

Monitor Audio W1M is a Creator Series Tier 1 in-wall loudspeaker designed for cost-effective custom installations without giving up the core C-CAM driver technology and installation system used throughout the range.
W1M at a glance
- System: 2-way, passive.
- Drivers: 2 x 5" C-CAM mid-bass drivers; 1 x 1" C-CAM tweeter with UD Waveguide.
- Frequency response: 40 Hz–30 kHz installed (-6 dB).
- Sensitivity: 87 dB.
- Nominal impedance: 6 ohms; minimum 4.8 ohms @ 15 kHz.
- Continuous power handling: 75 W.
- Recommended amplifier power: 30–110 W.
- Warranty: Lifetime.
Installation planning
Cutout is 527 × 198 mm with 85 mm mounting depth. The matching pre-construction bracket is WM-B. Quik-Link simplifies speaker-cable connection and Tri-Grip II provides secure fitment.
Physical dimensions
560 × 231 × 90 mm including grille; 3.4 kg each. Sold individually.
