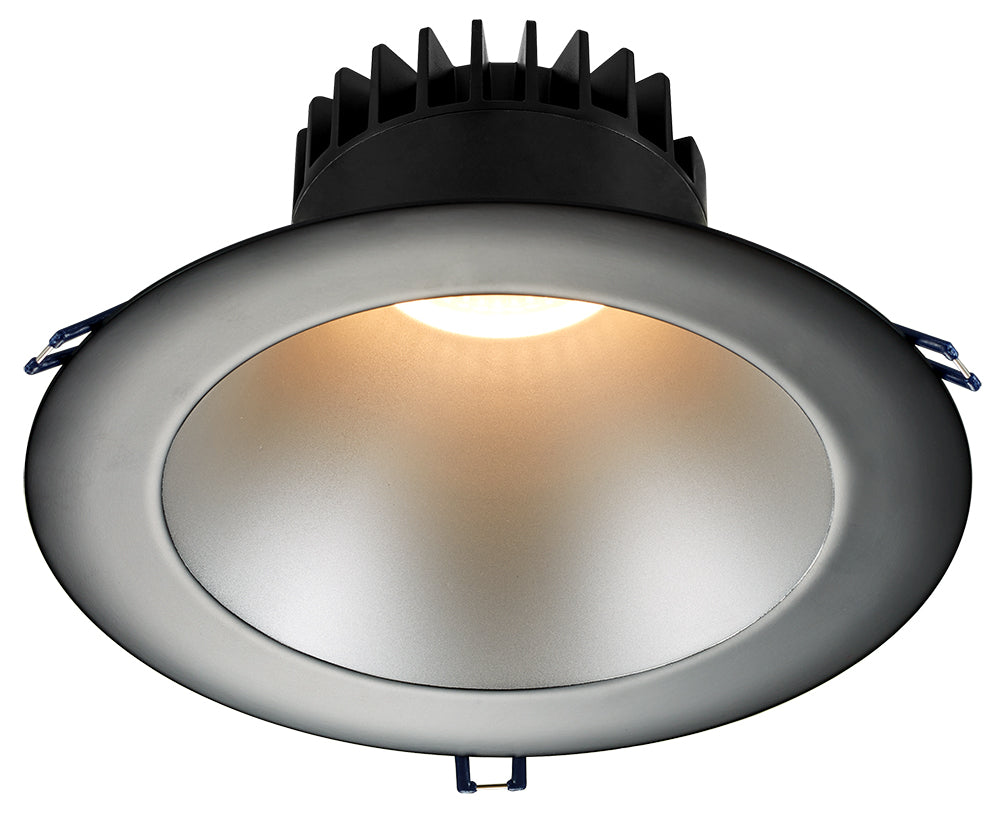

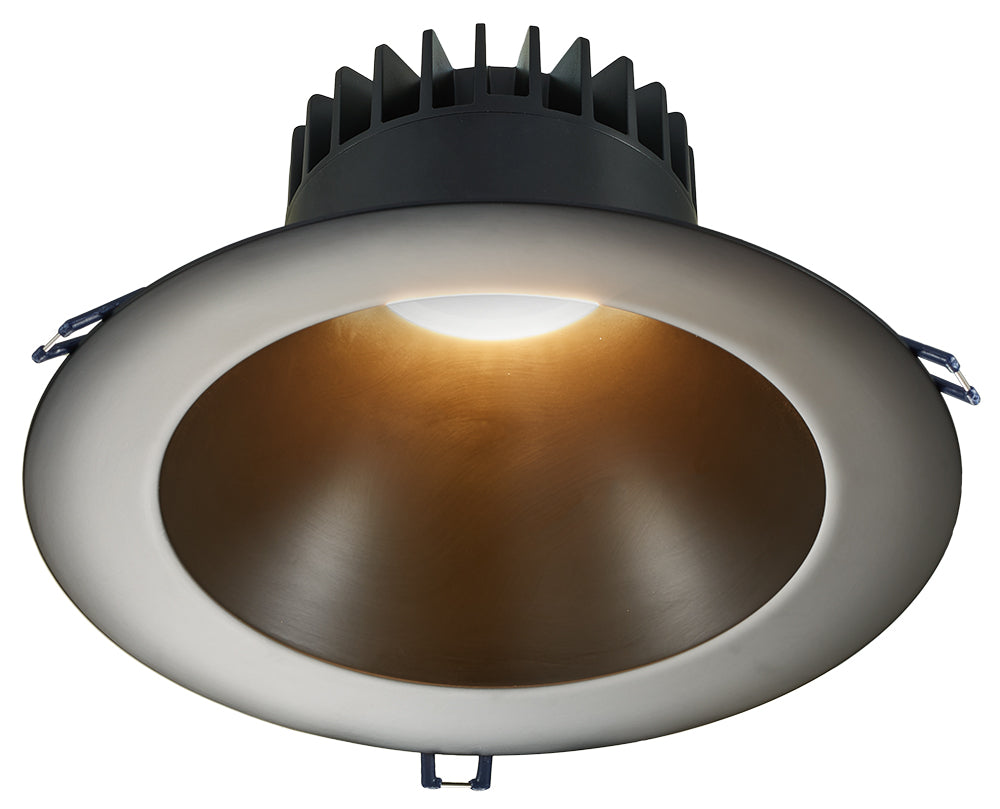

Lotus 8" Round Deep Regressed LED Open Plenum High Output | LD8R-HO
Lotus 8" Round Deep Regressed LED Open Plenum High Output | LD8R-HO
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LD8R-40K-HO-BR-BT
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED 8" Round Deep Regressed LED Open Plenum High Output is an architectural-spec recessed lighting solution designed for powerful, glare-free illumination in high-ceiling or commercial environments. This 30W fixture is specifically engineered for open plenum spaces, featuring armored cable and metal connectors to meet strict building codes. Its deep-regressed design ensures a clean, professional aesthetic while providing high-lumen output for expansive areas.
Key Features
- High-Output Performance: Delivers up to 3000 lumens, providing powerful illumination equivalent to commercial-grade fixtures in a compact 8" form factor.
- Open Plenum Rated: Engineered with armored cable and metal connectors, making it suitable for strict commercial building codes and open plenum installations.
- Glare-Reduced Design: The deep regressed aperture and high-end finish trim provide an architectural aesthetic with minimal visual glare.
- IC Rated & Air-Tight: Certified for direct contact with insulation and air-tight installation, simplifying setup in residential and commercial recessed lighting projects.
- Contractor-Grade Installation: Features an integrated driver inside the connection box with Romex quick connectors, fitting into 4" ceiling clearances without a separate housing.
Technical Specifications
- Energy Used: 30W
- Light Output: 2630 to 3000 lumens
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- Beam Angle: 38° standard (60° custom available)
- CRI: 90+
- Input Voltage: 120V AC Triac Dimmable (Standard) or 120V-347V AC 0-10V Dimmable (Optional)
- Power Factor: 0.98
- Dimensions: ID 7 1/2", OD 9", Thickness 4 1/2"
- Cut-Out: 7 1/2" to 8"
- Ceiling Clearance: 4"
- IP Rating: IP 54 (Wet Location Rated)
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus, T24, Type IC, Open Plenum Rated
- Warranty: 10 Year Residential / 5 Year Commercial
