Lotus 6" Square Deep Regressed Eco LED 5CCT 14.5W | LE6SR
Lotus 6" Square Deep Regressed Eco LED 5CCT 14.5W | LE6SR
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LE6SR-5CCT-WH
LE6SR-5CCT | 6" Square Deep Regressed Eco LED
The Lotus LE6SR-5CCT is a 6-inch square deep regressed LED downlight designed for clean, low-glare recessed lighting in ceilings, showers, and soffits. Its 1 1/8" regressed optical design helps reduce glare while providing a crisp architectural square appearance for residential and light commercial applications.
This builder-grade fixture includes an integral driver inside the connection box, so no separate junction box or recessed housing is required. With 5CCT selectable color temperature, CRI 90+, Type IC, air-tight, and wet location ratings, the LE6SR is a versatile recessed fixture for efficient, code-friendly installation.
Why this fixture sells
- Deep regressed design: 1 1/8" regressed lens helps reduce glare
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- Low-profile recessed installation: only 2" ceiling clearance required
- No housing required: Type IC fixture with driver inside connection box
- Wet location rated: suitable for showers, soffits, and approved wet-location applications
- Air-tight construction: helps meet building envelope requirements
- High color accuracy: CRI 90+ for quality light output
- Triac dimmable standard: default 120V AC Triac dimmable driver included
- 0-10V option available: optional 120V-347V AC 0-10V dimmable driver available separately
Recommended applications
- Recessed ceiling lighting
- Showers and bathrooms
- Soffits
- Residential general lighting
- Builder-grade projects
- Low-glare architectural lighting
- Retrofit projects where a recessed housing is not desired
Key specifications
| Model Family | LE6SR |
|---|---|
| Order Codes | LE6SR-5CCT-WH, LE6SR-5CCT-BK |
| Fixture Type | 6" Square Deep Regressed Eco LED |
| Applications | Recessed Ceiling, Showers & Soffits |
| Power | 14.5 W |
| Colour Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output, White Trim | 1130 / 1153 / 1177 / 1169 / 1122 lm |
| Light Output, Black Trim | 738 / 747 / 759 / 748 / 712 lm |
| Beam Angle | 90° |
| CRI | 90+ |
| Default Driver Input | 120V AC, Triac Dimmable |
| Optional Driver Input | 120V-347V AC, 0-10V Dimmable |
| Optional 0-10V Driver | LLL-LD1535ET, ordered separately |
| Junction Box Wire Capacity | Max 5 No. 12 AWG or 8 No. 14 AWG |
| Approved Location | Insulated Ceiling & Wet Locations |
| IP Rating | IP54 |
| Air Tight & Type IC | Yes |
| Ambient Temperature | -40°F (-40°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 36,000 hours |
| Dimensions | 6 1/4" ID, 6 3/4" square OD |
| Cut Out | 6 1/4" |
| Ceiling Clearance Required | 2" |
| Certification | c UL us |
| Warranty | 5 Year |
Available trims

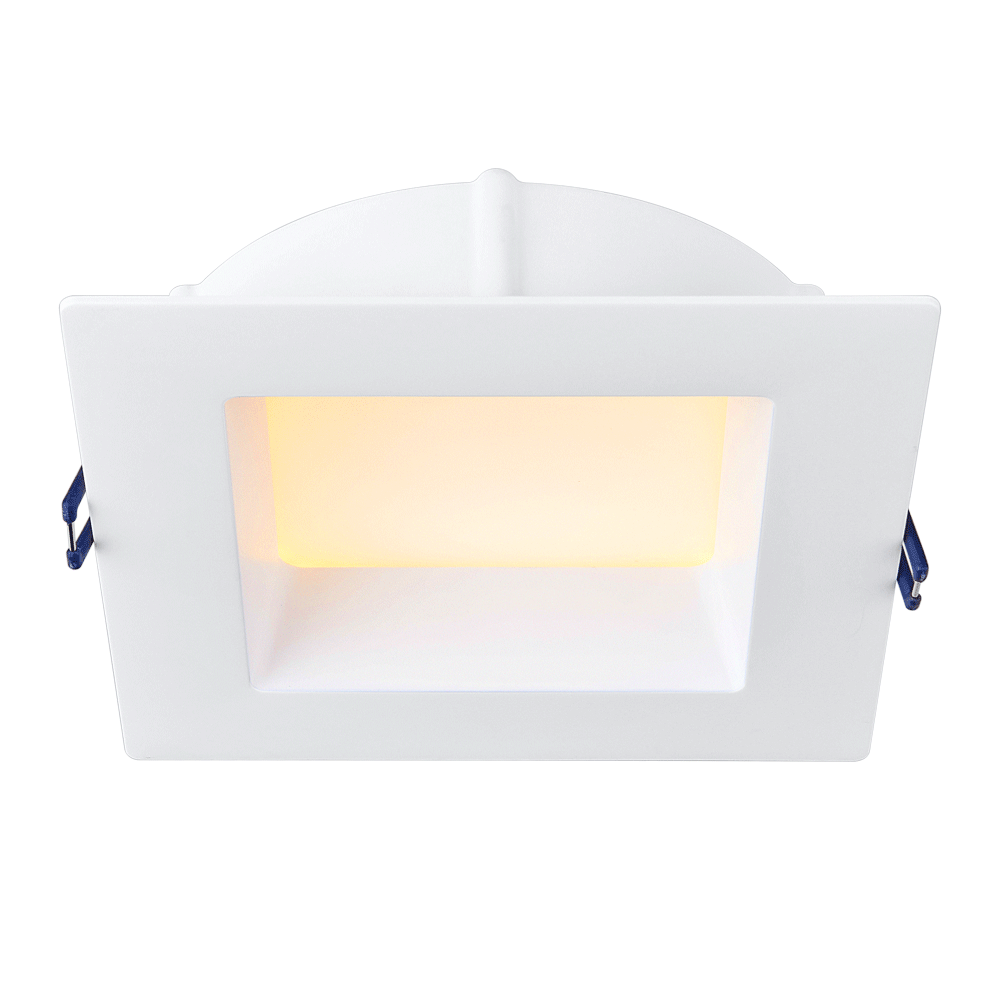

- LE6SR-5CCT-WH: White trim

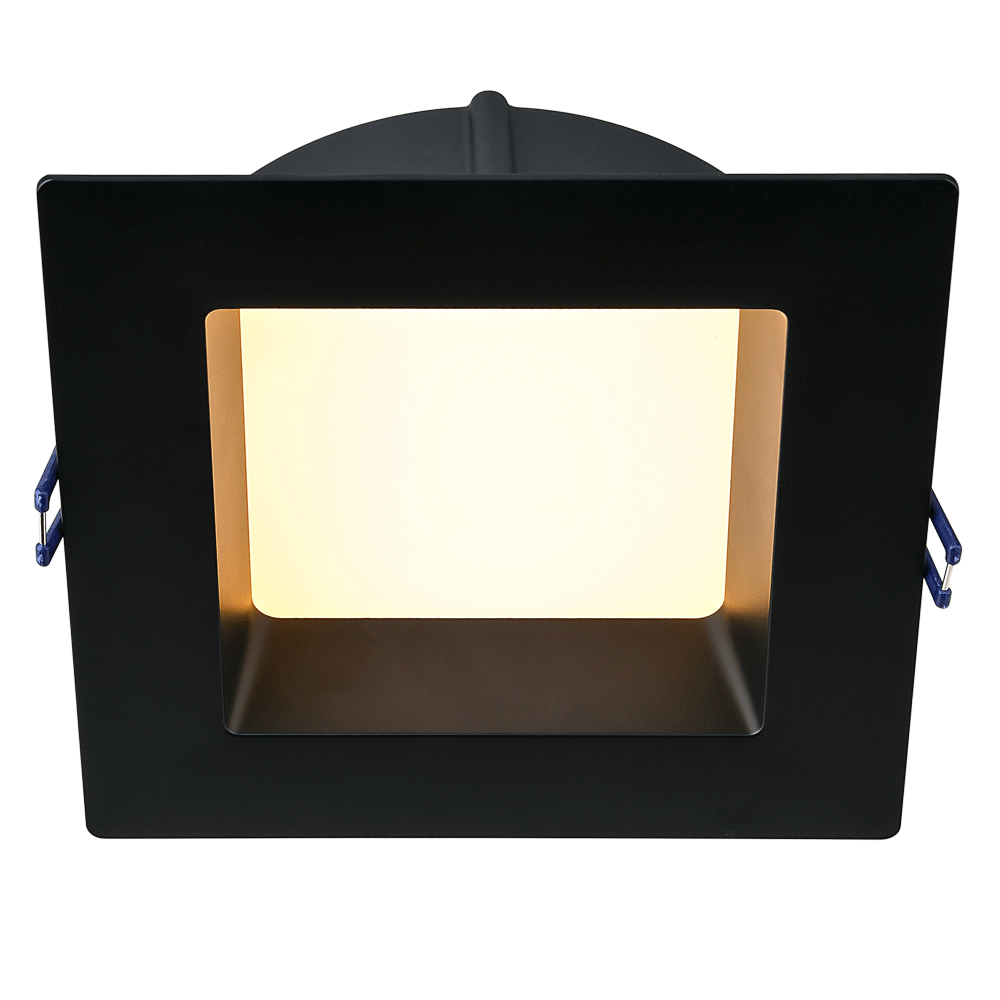

- LE6SR-5CCT-BK: Black trim
Compatible accessories
- EXC10-5CCT: 10 ft low-voltage extension cable, FT4 / CMR rated
- RIP6: 26" long flat rough-in plate
- MP6-2: 13" flat rough-in plate
- FRP6: Flanged plate with hanger bars
- BLD-HM08D-YYY: Emergency driver, 8W, 120-347V input
- LLL-LD1535ET: Optional 120V-347V 0-10V dimmable driver
Installation notes
- Cut hole in ceiling and snap fixture into opening with attached spring clips.
- Only 2" ceiling clearance is required.
- The standard 120V Triac dimmable driver is included.
- The optional 120V-347V 0-10V dimmable driver is ordered separately.
- No recessed housing is required.
- Approved for insulated ceilings and wet locations.
- 6" square deep regressed LED downlight
- 14.5W power consumption
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- CRI 90+ with 90° beam angle
- Type IC, air-tight, and wet location rated
- 120V Triac dimmable driver included
- Optional 120V-347V 0-10V driver available separately
- White and black trim options
Frequently Asked Questions
What is the Lotus LE6SR?
The LE6SR is a 6-inch square deep regressed LED downlight with an integral driver in the connection box. It is designed for recessed ceilings, showers, and soffits.
Is the LE6SR color selectable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is a recessed housing required?
No. The LE6SR is Type IC and includes the driver inside the connection box, so no recessed housing is required.
Can it be used in wet locations?
Yes. The LE6SR is wet location rated and is listed for applications such as showers and soffits when installed according to code and manufacturer instructions.
Is the LE6SR dimmable?
Yes. The standard version includes a 120V AC Triac dimmable driver. An optional 120V-347V AC 0-10V dimmable driver is available separately.
What trim colours are available?
The LE6SR is available in white and black trim options: LE6SR-5CCT-WH and LE6SR-5CCT-BK.
How much ceiling clearance is required?
The spec sheet lists a required ceiling clearance of 2 inches.
