Lotus 6" Square Regressed 1st Gen Plenum LED 18W | LL6SRG
Lotus 6" Square Regressed 1st Gen Plenum LED 18W | LL6SRG
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LL6SRG-27K-BK
Shipping terms (Free over $300) calculated at checkout.
Overview

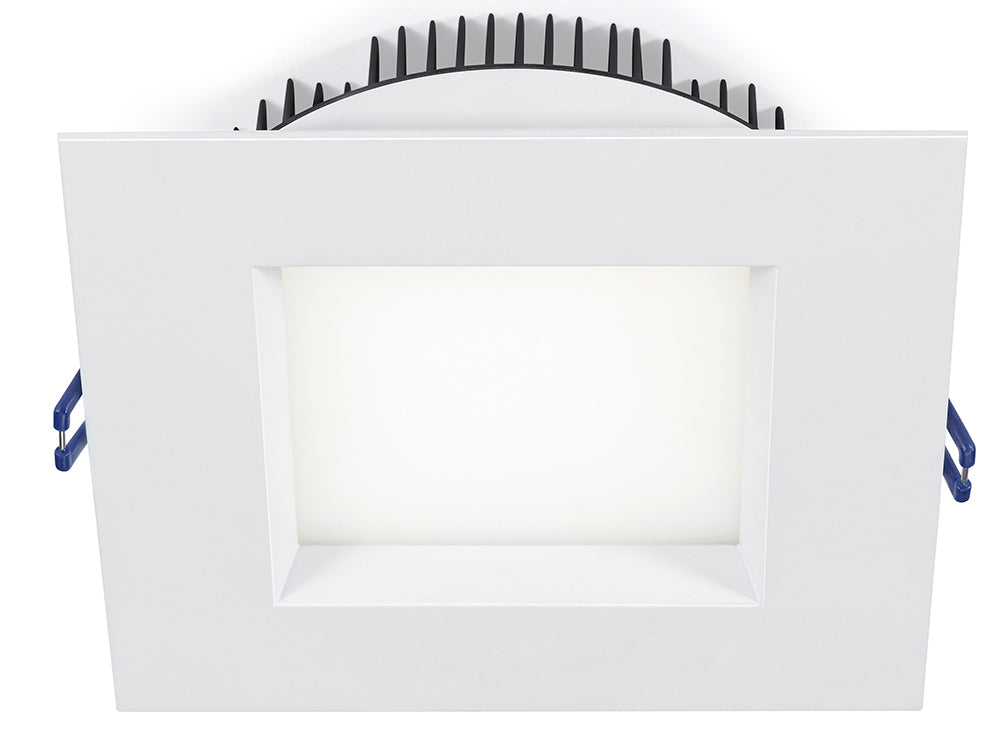

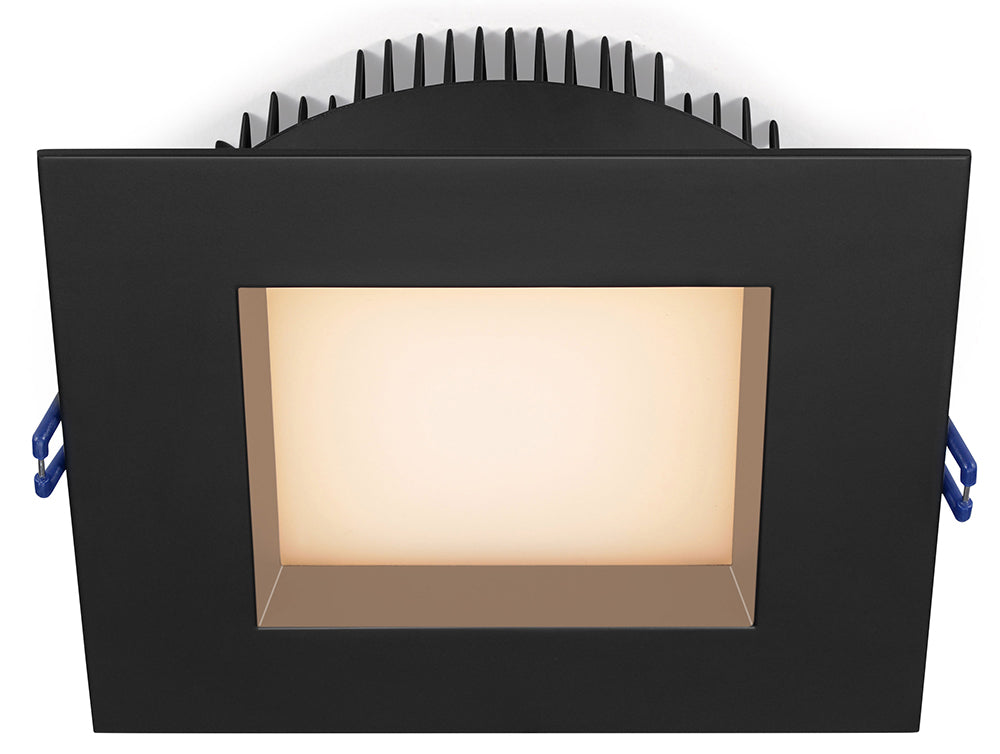

The Lotus LED 6-inch square regressed plenum fixture is a contractor-grade recessed lighting solution engineered for architectural precision. Featuring a 2 1/4-inch thin profile, this high-performance luminaire is specifically designed to fit into tight ceiling spaces while providing low-glare, high-quality illumination.
Key Features
- Open Plenum Rated: Architectural-spec construction suitable for commercial installations with open plenum requirements.
- Architectural Design: Deep regressed optics provide high-quality light with significantly reduced glare.
- IC Rated: Approved for direct contact with insulation, eliminating the need for bulky recessed housings.
- High Color Rendering: Features a CRI of 93 for true and vibrant color rendering in demanding environments.
- Extreme Weather Durability: Rated for wet locations and operational in temperatures as low as -40°F (-40°C).
Technical Specifications
- Power: 18W
- Halogen Equivalent: 100W
- Light Output: 1000 lm (2700K) to 1050 lm (4100K)
- Color Temperature: Available in 2700K, 3000K, and 4100K
- CRI: 93
- Beam Angle: 95°
- Input Voltage: 120V AC 50/60 Hz
- Dimming: TRIAC Dimmers 5% - 100%
- Dimensions: ID 6", OD 7", Thickness 2 1/4"
- Cut Out: 6" to 6 1/4"
- Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certifications: cULus, T24, Energy Star
- Warranty: 10 Year Residential / 5 Year Commercial
