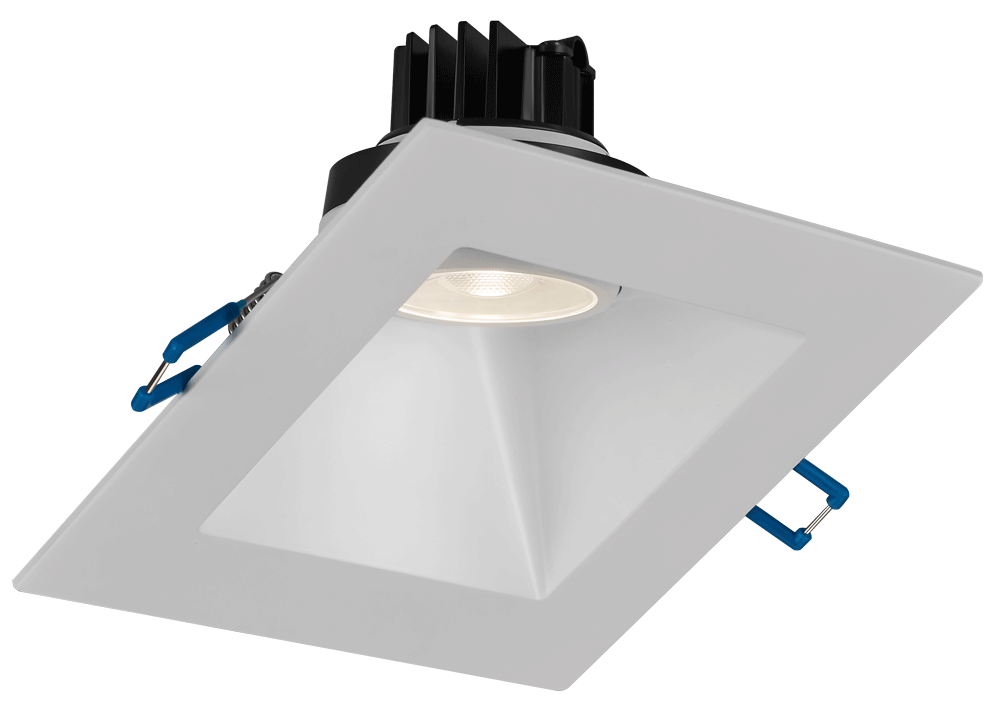

Lotus 5" Square Sloped Regressed Gimbal LED 7.5W | LSG3-5SSL

Overview

The Lotus LED 5" Square Sloped Regressed Gimbal is an architectural-spec recessed lighting solution specifically engineered for sloped ceilings ranging from 5° to 55° and wall washing applications. This 7.5W fixture features a 30° sloped trim and a regressed gimbal design that reduces glare while providing precise directional control.

Key Features

• IC Rated: Approved for direct contact with insulation, eliminating the need for bulky recessed housings or separate junction boxes.
• Specialized Sloped Design: Includes a unique 30° sloped trim, making it the ideal choice for high-pitched sloped ceilings and wall wash lighting.
• Contractor-Grade Installation: The 3" deep profile fits into tight ceiling spaces, and the integral driver in the connection box ensures a fast and easy setup.
• Dimmable & Versatile: Standard Triac dimmable driver included, with optional 0-10V dimming available for diverse architectural lighting needs.
• Wet Location Rated: IP 54 certified and air-tight, making this recessed lighting suitable for indoor and outdoor soffit applications.

Technical Specifications

• Energy Used: 7.5W
• Light Output: 500 - 650 Lumens
• Halogen Equivalent: 50W
• Beam Angle: 38° with 20° tilt and 360° rotation
• CRI: 90+
• Color Temperature: 2700K, 3000K, 3200K (DTW), 3500K, 4100K, 5000K, or 5CCT selectable
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture: 4 1/2" ID, 5 1/4" OD
• Cut Out: 4 1/2" to 5" (Round Hole)
• Ceiling Clearance: 3"
• IP Rating: IP 54
• Approved Location: Insulated Ceilings & Wet Locations
• Air Tight: Yes
• Ambient Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cULus
• Warranty: 10 Year Residential / 5 Year Commercial
