Lotus 5" Square 30° Sloped Regressed LED 15W | LD3S-5SSL
Lotus 5" Square 30° Sloped Regressed LED 15W | LD3S-5SSL
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LD3S-3018K-5SSL-WH
Shipping terms (Free over $300) calculated at checkout.
Overview

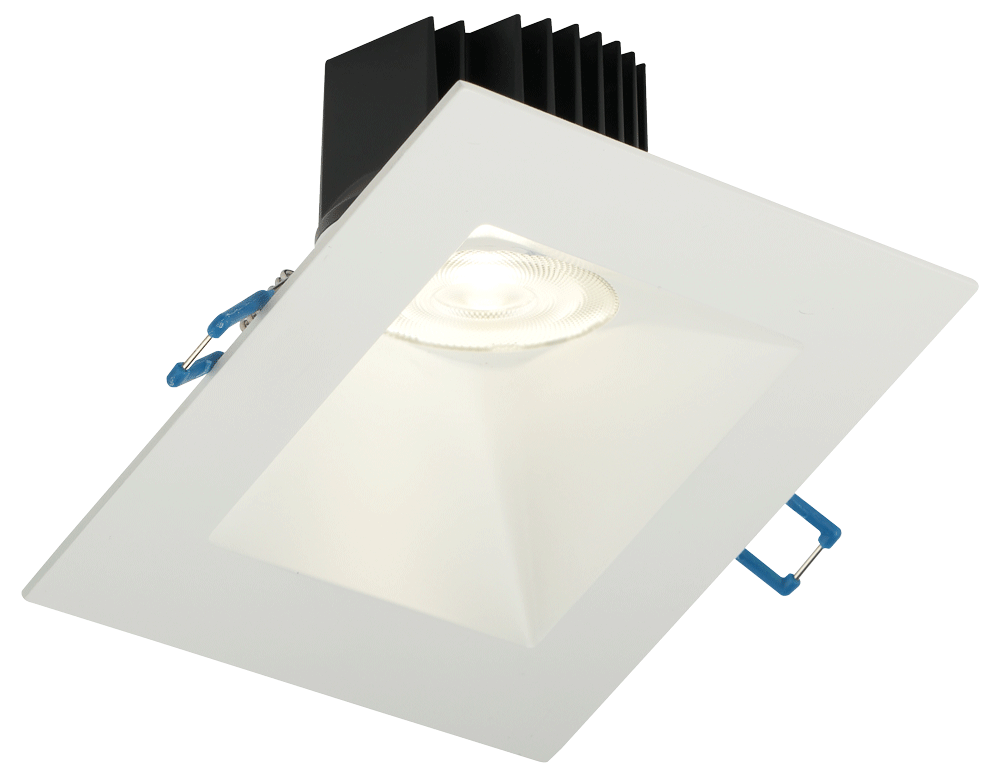

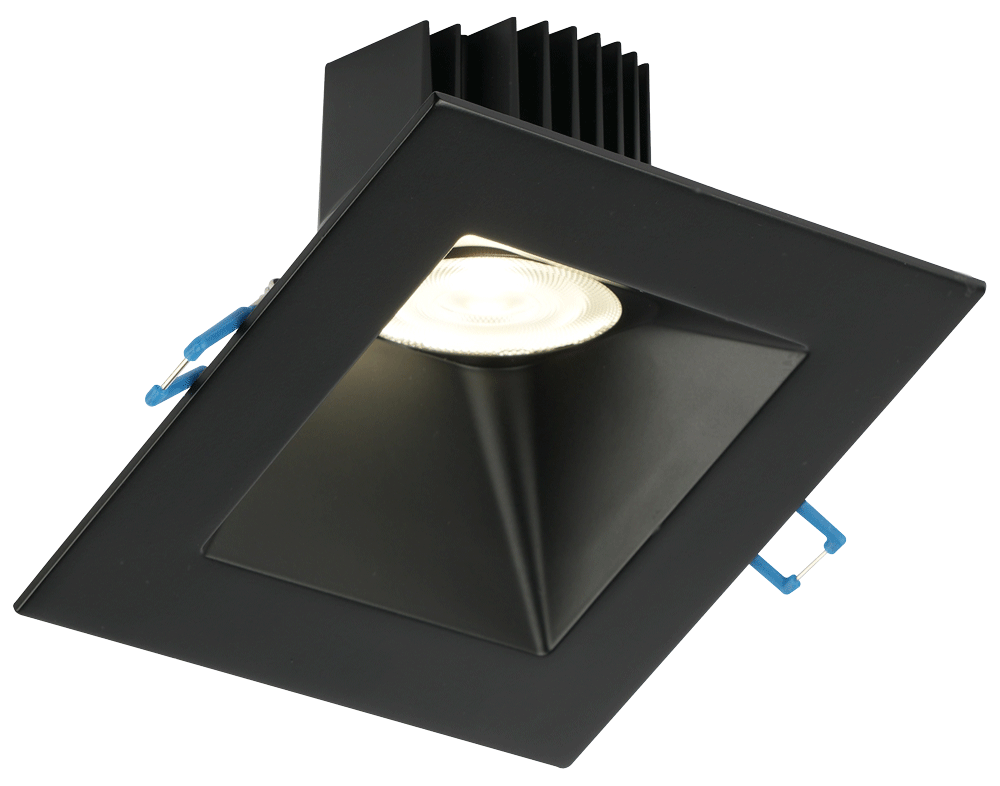

The Lotus LED LD3S-5SSL is an architectural-spec 5-inch square recessed lighting solution engineered specifically for sloped ceilings and precision wall washing. Featuring a 30° slope trim and a 3/4" regressed design, this fixture delivers high-lumen output with significantly reduced glare for sophisticated residential and commercial interiors.Key Features
- 5CCT field-selectable color temperature (2700K to 5000K) or Dim to Warm (3000K-1800K) options provide ultimate on-site flexibility.
- Type IC Rated and Air-Tight construction allows for direct contact with insulation, eliminating the need for bulky recessed housings.
- Integrated 30° slope trim with a 38° directional beam allows for targeted illumination in challenging architectural spaces.
- Wet Location and IP54 rating ensure durability in bathrooms, kitchens, and protected outdoor soffit applications.
- Contractor-grade CRI 90+ performance ensures high-fidelity color rendering for premium architectural environments.
Technical Specifications
- Energy Used: 15W
- Light Output: 1220 lm – 1400 lm
- Halogen Equivalent: 120W
- Trim Slope Angle: 30°
- Beam Angle: 38° (Standard)
- CRI: 90+
- Default Driver Input: 120V AC Triac Dimmable
- Optional Driver Input: 120V-347V AC 0-10V Dimmable
- Power Factor: 0.95
- Approved Location: Insulated Ceiling & Wet Locations
- IP Rating: IP54
- Air Tight: Yes
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% light output at 50,000 hours
- Certification: cULus
- Warranty: 10 Year Residential / 5 Year Commercial
- Dimensions: OD 5 1/4" Square
- Cut-out: 5" Round Hole
- Ceiling Clearance: 3 1/2"
