Lotus 5" Ultimate J-Box Mount LED 10W 5CCT Round Trim | LBL-JB10W-5CCT-R
Lotus 5" Ultimate J-Box Mount LED 10W 5CCT Round Trim | LBL-JB10W-5CCT-R
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LBL-JB10W-5CCT-R-WH
LBL-JB10W-5CCT-R | 5" Round Ultimate J-Box Mount LED 10W
The Lotus LBL-JB10W-5CCT-R is a 5-inch round ultimate junction box mount LED fixture designed for multi-family and residential applications. It provides a clean regressed look with only 1/8" visible trim thickness, making it a strong choice where a low-profile ceiling fixture is needed without a recessed housing.
This 10W J-box mount LED features 5CCT selectable color temperature, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K. With up to 740 lumens, CRI 90+, 120V AC Triac dimming down to 5%, wet-location approval, and a standard 60° directional beam, it is built for clean, efficient ceiling lighting in residential and multi-family projects.
Why this fixture sells
- J-box mount design: fits in 4" octagon plastic junction boxes 2 1/8" deep
- Round regressed appearance: clean ceiling look with only 1/8" visible trim thickness
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- High color accuracy: CRI 90+ for true color rendering
- Efficient 10W output: up to 740 lumens with 75W halogen equivalent performance
- Directional beam: standard 60° beam for reduced glare
- Optional 38° beam: available using the -38D ordering option
- Triac dimmable: 120V AC dimming from 5% to 100%
- Wet location certified: suitable for soffits and other approved wet-location applications
- Fire-rated compatibility: fire rated when used with a fire-rated junction box
Recommended applications
- Multi-family ceiling lighting
- Residential ceiling lighting
- Hallways and corridors
- Bedrooms and living areas
- Bathrooms and approved wet-location areas
- Soffits
- Junction box mount lighting
- Projects where recessed housings are not preferred
Key specifications
| Model Family | LBL-JB10W-5CCT-R |
|---|---|
| Fixture Type | 5" Round Ultimate Junction Box Mount LED |
| Applications | Multi Family & Residential Applications |
| Power | 10 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 600 / 650 / 715 / 740 / 730 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 60° standard; 38° optional with -38D adder |
| CRI | 90+ |
| Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 5% - 100% |
| Approved Location | Wet Locations |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 5 1/4" OD x 1 1/8" depth |
| Visible Trim Thickness | 1/8" |
| Junction Box Compatibility | Fits 4" octagon plastic junction boxes 2 1/8" deep |
| Certification | cETLus, Energy Star |
| Warranty | 5 Year |
Available round models

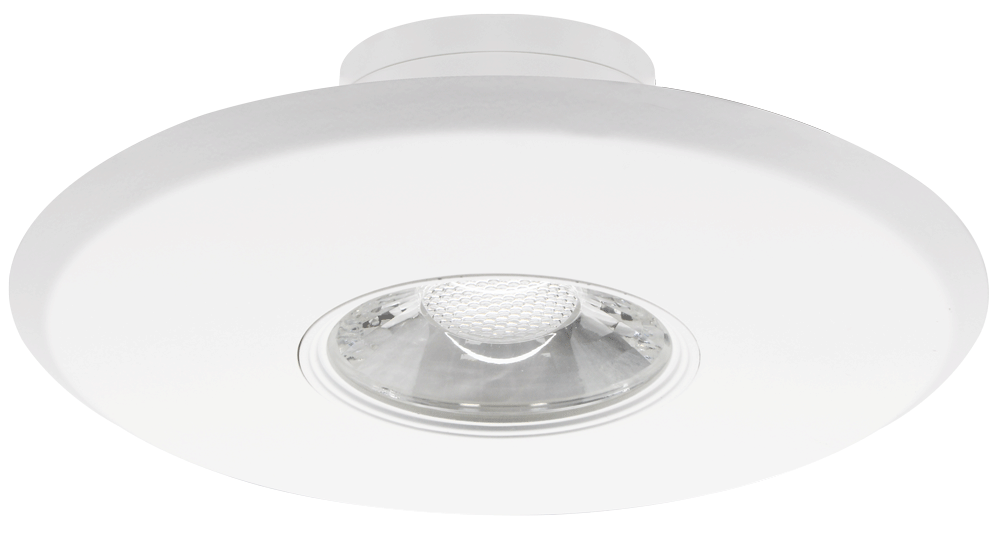

- LBL-JB10W-5CCT-R-WH: Round White trim, 60° standard beam

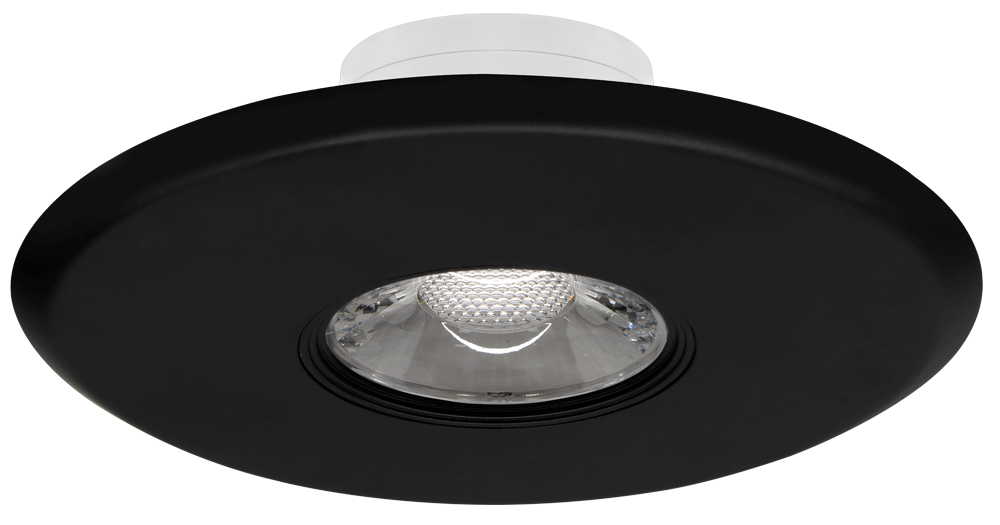

- LBL-JB10W-5CCT-R-BK: Round Black trim, 60° standard beam
Beam angle note
The standard beam angle is 60°. Add -38D for the optional 38° beam. If listing 38° models, create a separate 38D product page or separate SKU structure so the beam angle metafield remains accurate.
Installation notes
- Designed to fit in 4" octagon plastic junction boxes 2 1/8" deep.
- Fire rated when used with a fire-rated junction box.
- Wet-location certified and suitable for soffit applications when installed according to code and manufacturer instructions.
- Triac dimmable from 5% to 100%.
- 5CCT selection allows final color temperature to be set in the field.
- 5" round ultimate J-box mount LED fixture
- 10W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 600-740 lumen output depending on selected CCT
- CRI 90+ for true color rendering
- 60° standard beam; 38° optional adder
- 120V AC Triac dimmable, 5%-100%
- Wet location certified
- Fits 4" octagon plastic junction boxes 2 1/8" deep
- Round white and round black trim options
Frequently Asked Questions
What is the Lotus LBL-JB10W-5CCT-R?
It is a 5-inch round junction box mount LED fixture with 5CCT selectable color temperature and interchangeable magnetic trims.
What junction box does it fit?
The spec sheet states that it fits 4-inch octagon plastic junction boxes that are 2 1/8 inches deep.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is this fixture dimmable?
Yes. It is designed for 120V AC Triac dimming from 5% to 100%.
Can this fixture be used in wet locations?
Yes. The fixture is wet-location certified and may be installed in soffits when installed according to code and manufacturer instructions.
What is the standard beam angle?
The standard beam angle is 60°. A 38° beam is available as an optional -38D adder.
Is it fire rated?
The fixture is listed as fire rated when used with a fire-rated junction box.
What trim finishes are available on the round version?
The round version is available with white or black trim.
LBL-JB10W-5CCT-SQ | 5" Square Ultimate J-Box Mount LED 10W
The Lotus LBL-JB10W-5CCT-SQ is a 5-inch square ultimate junction box mount LED fixture designed for multi-family and residential ceiling lighting. Its square magnetic trim and clean regressed look create a refined architectural appearance while allowing installation directly to a compatible junction box.
This 10W square J-box mount LED features 5CCT selectable color temperature, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K. With up to 740 lumens, CRI 90+, 120V AC Triac dimming down to 5%, wet-location approval, and a standard 60° directional beam, it offers a clean square ceiling solution for residential and multi-family applications.
Why this fixture sells
- J-box mount design: fits in 4" octagon plastic junction boxes 2 1/8" deep
- Square regressed appearance: clean architectural look with only 1/8" visible trim thickness
- 5CCT selectable: field-selectable 2700K, 3000K, 3500K, 4000K, and 5000K
- High color accuracy: CRI 90+ for true color rendering
- Efficient 10W output: up to 740 lumens with 75W halogen equivalent performance
- Directional beam: standard 60° beam for reduced glare
- Optional 38° beam: available using the -38D ordering option
- Triac dimmable: 120V AC dimming from 5% to 100%
- Wet location certified: suitable for soffits and other approved wet-location applications
- Fire-rated compatibility: fire rated when used with a fire-rated junction box
Recommended applications
- Multi-family ceiling lighting
- Residential ceiling lighting
- Hallways and corridors
- Bedrooms and living areas
- Bathrooms and approved wet-location areas
- Soffits
- Junction box mount lighting
- Projects where a square trim aesthetic is preferred
Key specifications
| Model Family | LBL-JB10W-5CCT-SQ |
|---|---|
| Fixture Type | 5" Square Ultimate Junction Box Mount LED |
| Applications | Multi Family & Residential Applications |
| Power | 10 W |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Light Output | 600 / 650 / 715 / 740 / 730 lm |
| Halogen Equivalent | 75 W |
| Beam Angle | 60° standard; 38° optional with -38D adder |
| CRI | 90+ |
| Input | 120V AC 50/60 Hz |
| Dimming | Triac dimmers, 5% - 100% |
| Approved Location | Wet Locations |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 5 1/4" OD x 1 1/8" depth |
| Visible Trim Thickness | 1/8" |
| Junction Box Compatibility | Fits 4" octagon plastic junction boxes 2 1/8" deep |
| Certification | cETLus, Energy Star |
| Warranty | 5 Year |
Available square models
- LBL-JB10W-5CCT-SQ-WH: Square White trim, 60° standard beam
- LBL-JB10W-5CCT-SQ-BK: Square Black trim, 60° standard beam
Beam angle note
The standard beam angle is 60°. Add -38D for the optional 38° beam. If listing 38° models, create a separate 38D product page or separate SKU structure so the beam angle metafield remains accurate.
Installation notes
- Designed to fit in 4" octagon plastic junction boxes 2 1/8" deep.
- Fire rated when used with a fire-rated junction box.
- Wet-location certified and suitable for soffit applications when installed according to code and manufacturer instructions.
- Triac dimmable from 5% to 100%.
- 5CCT selection allows final color temperature to be set in the field.
- 5" square ultimate J-box mount LED fixture
- 10W power consumption with 75W halogen equivalent
- 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
- 600-740 lumen output depending on selected CCT
- CRI 90+ for true color rendering
- 60° standard beam; 38° optional adder
- 120V AC Triac dimmable, 5%-100%
- Wet location certified
- Fits 4" octagon plastic junction boxes 2 1/8" deep
- Square white and square black trim options
Frequently Asked Questions
What is the Lotus LBL-JB10W-5CCT-SQ?
It is a 5-inch square junction box mount LED fixture with 5CCT selectable color temperature and interchangeable magnetic trims.
What junction box does it fit?
The spec sheet states that it fits 4-inch octagon plastic junction boxes that are 2 1/8 inches deep.
Is the color temperature adjustable?
Yes. The fixture is 5CCT selectable, allowing field selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is this fixture dimmable?
Yes. It is designed for 120V AC Triac dimming from 5% to 100%.
Can this fixture be used in wet locations?
Yes. The fixture is wet-location certified and may be installed in soffits when installed according to code and manufacturer instructions.
What is the standard beam angle?
The standard beam angle is 60°. A 38° beam is available as an optional -38D adder.
Is it fire rated?
The fixture is listed as fire rated when used with a fire-rated junction box.
What trim finishes are available on the square version?
The square version is available with white or black trim.
