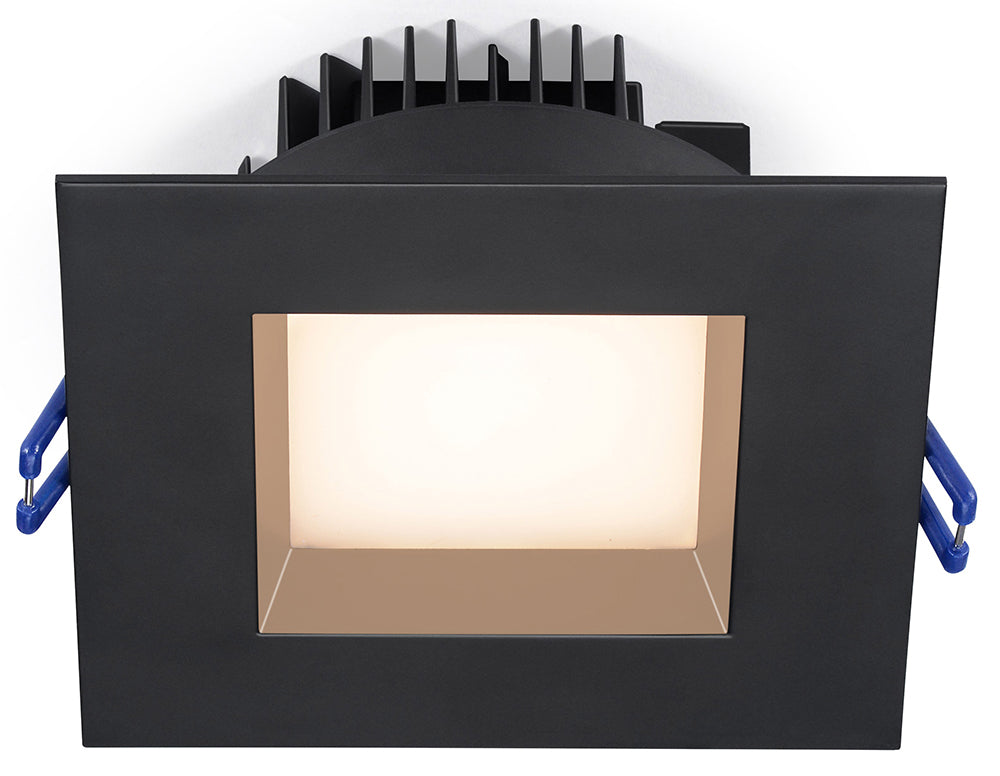

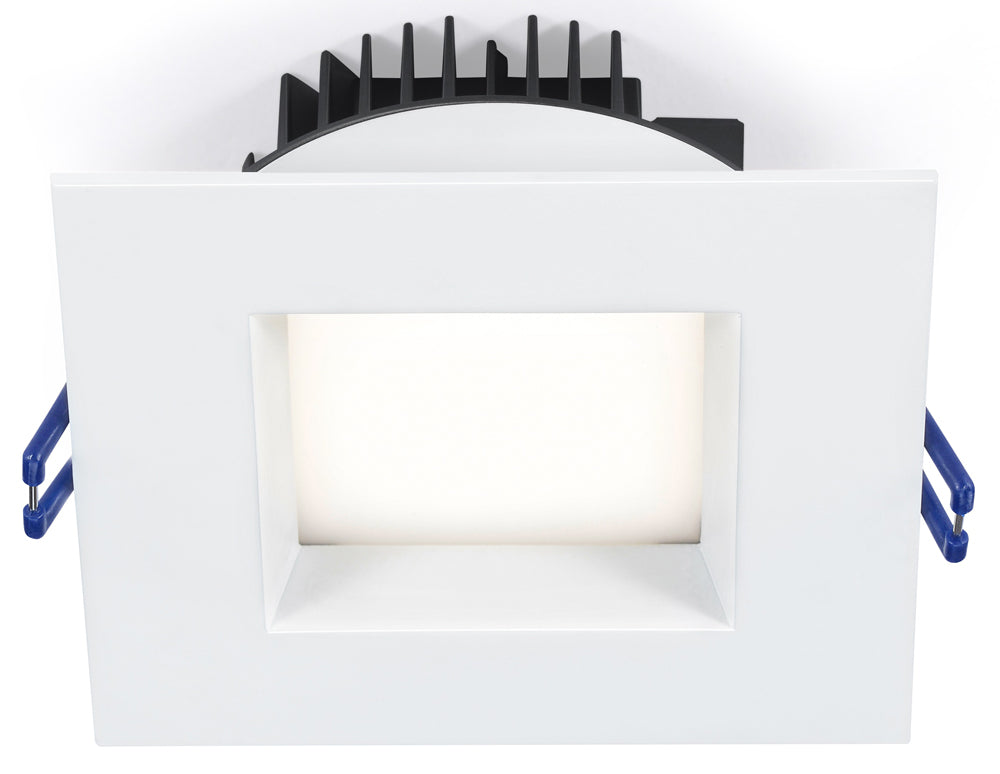

Lotus 4" Square Regressed Open Plenum LED 14.5W | LL4SR

Overview

The Lotus LED 4" Square Regressed Open Plenum LED is an architectural-spec recessed lighting solution engineered for high-end commercial and residential applications. Featuring commercial-grade quality with a 2" regressed design, this 14.5W fixture provides superior glare reduction and a modern aesthetic. It is specifically designed for open plenum installations, featuring armored cables and metal connectors to meet rigorous commercial building codes.

Key Features

• Open Plenum Rated: Equipped with armored cables and metal connectors, making it suitable for high-standard commercial environments.
• IC Rated: Approved for direct contact with insulation, allowing for fast and easy installation without the need for a separate recessed housing.
• Architectural Glare Control: The deep regressed optic minimizes visual glare while maintaining a high lumen output for optimal visual comfort.
• Wet Location Rated: IP 54 certified and air-tight, ensuring durability in high-moisture areas such as bathrooms and protected outdoor soffits.
• Contractor-Grade Installation: Integrated driver inside the connection box eliminates the need for a junction box, significantly reducing labor time and costs.

Technical Specifications

• Energy Used: 14.5W
• Light Output: 780 to 950 lumens (depending on CCT)
• Halogen Equivalent: 90W
• Color Temperature: 2700K, 3000K, 4000K, Dim to Warm (3000K-1800K), or 5CCT Selectable (27-30-35-40-50K)
• Beam Angle: 90°
• CRI: 90+
• Input Voltage: 120V AC (Standard Triac Dimmable) or 120V-347V AC (Optional 0-10V)
• Dimmable: Yes
• Power Factor: 0.98
• Aperture/Dimensions: 4" ID, 5" OD Square
• Cut-Out: 4" to 4 1/4"
• Ceiling Clearance: 2"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Type IC, Air-Tight, Open Plenum Rated
• Warranty: 10 Year Residential / 5 Year Commercial
