Lotus DL254 4" Round Commercial LED Downlight - 5CCT & 5-Wattage Selectable | DL254-4-16W-M-A5C5
Lotus DL254 4" Round Commercial LED Downlight - 5CCT & 5-Wattage Selectable | DL254-4-16W-M-A5C5
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:DL254-4-16W-M-A5C5
The Lotus DL254 4" Round Commercial LED Downlight is built for projects that need flexibility on-site without sacrificing a clean architectural look. With 5 selectable color temperatures, 5 adjustable wattage settings, universal 120-347V input, and 0-10V dimming, it gives contractors, designers, and specifiers a single fixture that can adapt to a wide range of commercial applications.
Designed for retrofit and new construction, the DL254 features regressed optics for lower glare and is rated Type IC, wet location, and airtight, making it a strong choice for hospitality, healthcare, retail, office, and exterior soffit installations.
Why this downlight sells
- 5 CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- 5 wattage selectable: 6W / 8W / 10W / 12W / 16W
- Universal voltage: 120-347V AC, 50/60 Hz
- 0-10V dimming: 5%-100%
- Low-glare regressed optics
- Type IC, wet location, and airtight rated
- 80° beam angle
- 50,000-hour life (70% light output)
- Works in both retrofit and new construction applications
Available finishes

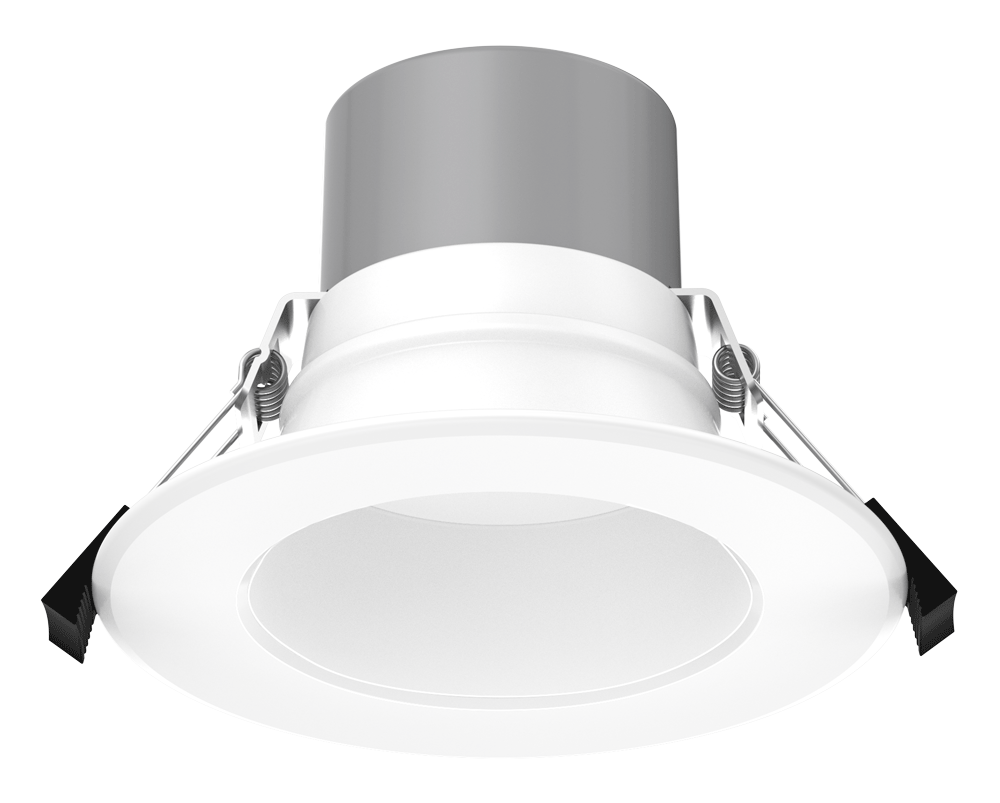

- White — DL254-4-16W-M-A5C5

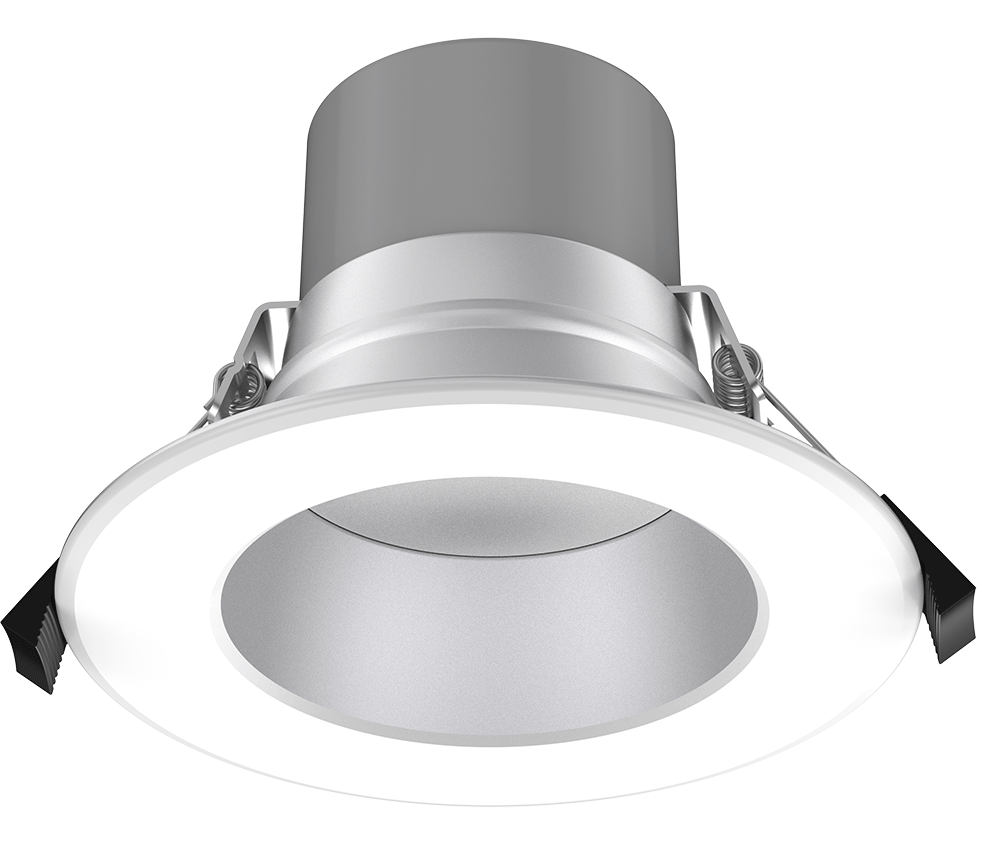

- Alzak — DL254-4-16W-M-A5C5-AZ

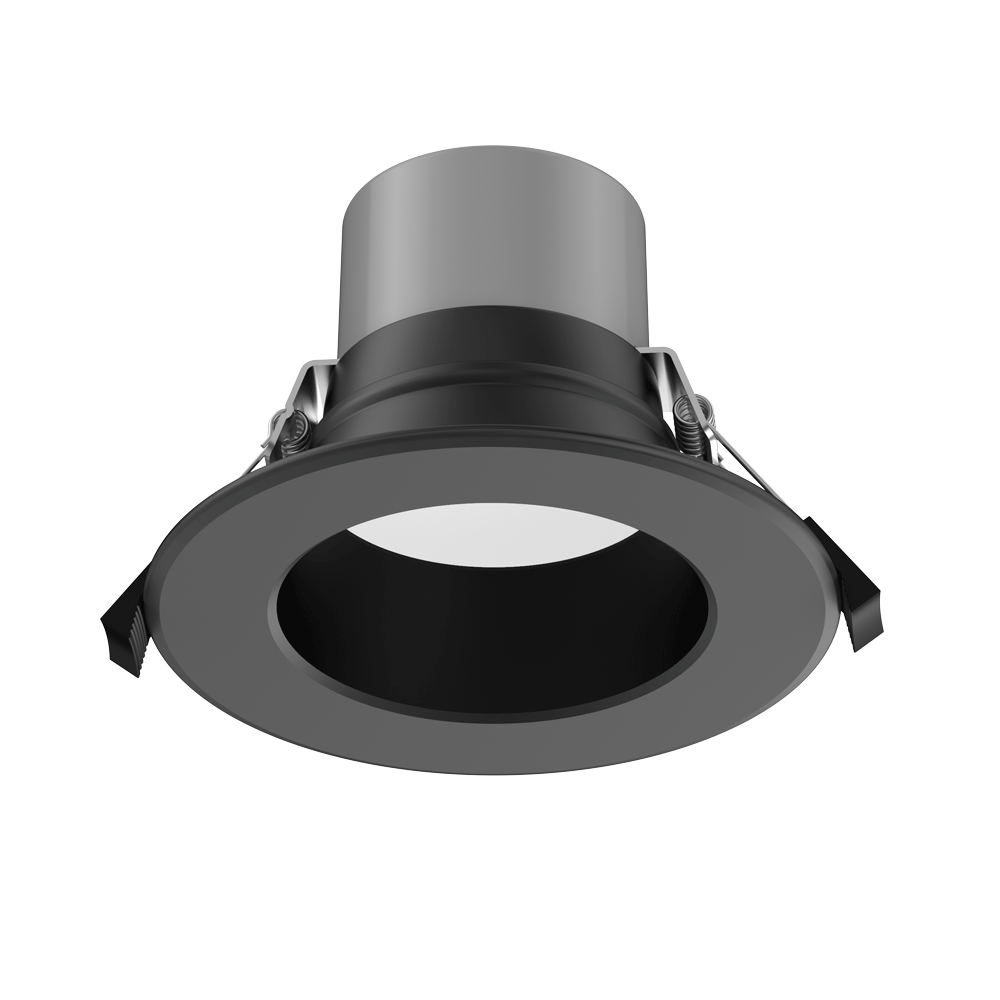

- Black — DL254-4-16W-M-A5C5-BK
Applications
Ideal for commercial recessed ceiling applications including:
- Hospitality
- Healthcare
- Shopping mall and retail
- Office environments
- Exterior soffits
Technical specifications
| Fixture Type | 4" Round Commercial Recessed LED Downlight |
|---|---|
| Installation | Retrofit & New Construction |
| Voltage | 120-347V AC, 50/60 Hz |
| Dimming | 0-10V, 5%-100% |
| Selectable Wattage | 6W / 8W / 10W / 12W / 16W |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Beam Angle | 80° |
| CRI | 80 |
| Ratings | Type IC, Wet Location, Air Tight |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Certification | cETLus |
| Warranty | 5 Year |
| Cutout | 4" to 5" |
| Ceiling Space Needed | 4" |
| Fixture Dimensions | ID 3 3/4" | OD 6" | Depth 4 1/8" | Regressed 1 3/8" |
Light output by CCT and wattage
| CCT | 6W | 8W | 10W | 12W | 16W |
|---|---|---|---|---|---|
| 2700K | 570 lm | 790 lm | 1010 lm | 1190 lm | 1490 lm |
| 3000K | 580 lm | 810 lm | 1040 lm | 1230 lm | 1550 lm |
| 3500K | 600 lm | 850 lm | 1090 lm | 1290 lm | 1640 lm |
| 4000K | 620 lm | 870 lm | 1120 lm | 1320 lm | 1660 lm |
| 5000K | 640 lm | 890 lm | 1140 lm | 1320 lm | 1670 lm |
Compatible accessories
- FRP4 - Flanged with Hanger Bars
- RIP414 - 26" Long Flat Rough-In Plate
- MP4-2 - 13" Long Flat Rough-In Plate
- MP4 - 13" Long Flanged Rough-In Plate
- LBL-MP-C4-8-STUD - Stud Mounting Plate
- LBL-MP-C4-10-TBAR - T-bar Mounting Plate
- LBL-4CGR-W - White Goof Ring, OD 8 1/2"
- BLD-HM08D-YYY - Emergency Driver 8W 120-347V
Important note
Junction box is not included.
