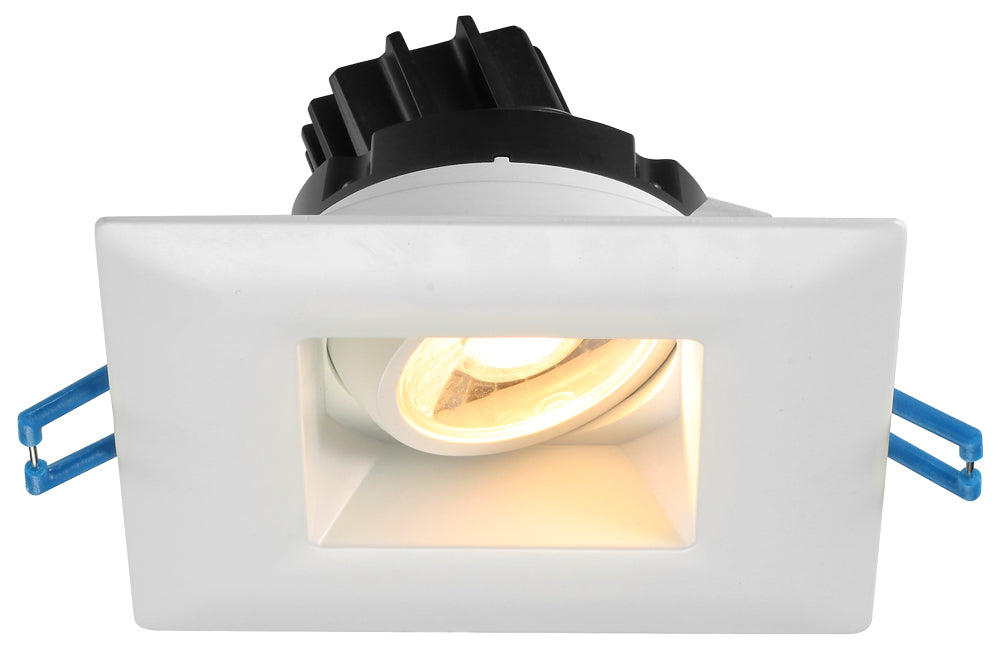

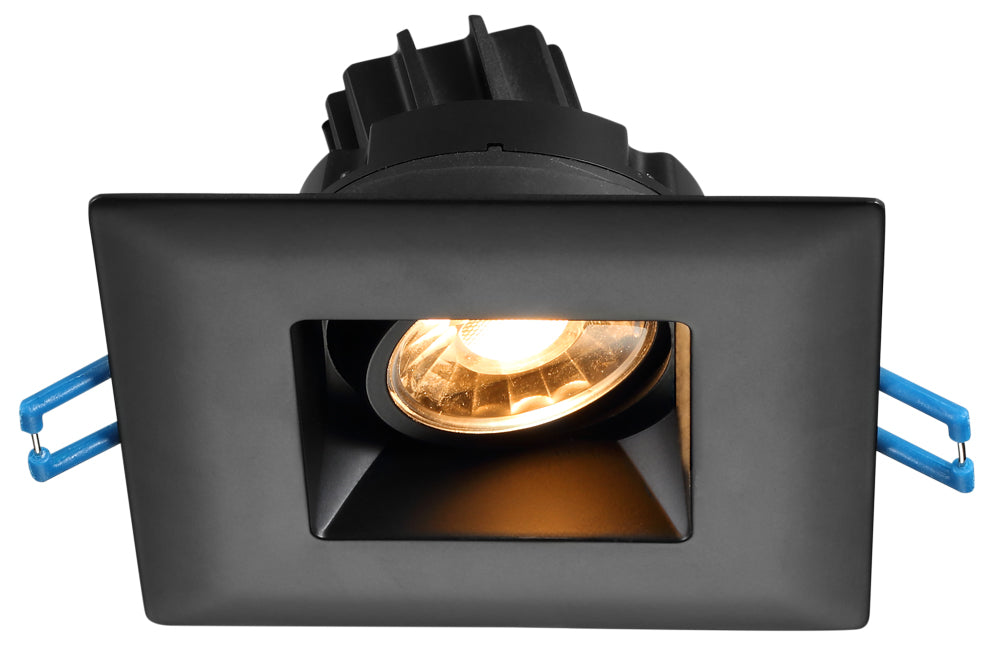

Lotus 3" Square Regressed Gimbal LED 7.5W | LSG3

Overview

The Lotus LED 3" Square Regressed Gimbal is an architectural-spec recessed lighting solution designed for high-precision directional lighting in restricted ceiling spaces. This 7.5W fixture features a 2 1/2" deep profile and an adjustable gimbal providing 20° tilt and 360° rotation, making it ideal for sloped ceilings and highlighting artwork.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: Regressed design minimizes visual glare while delivering up to 650 lumens of high-quality light.
• Directional Precision: Features a 20° tilt and 360° rotation for flexible light aiming on sloped ceilings or for accent lighting.
• Wet Location Rated: IP 54 certified and air-tight, making this recessed lighting suitable for showers, bathrooms, and outdoor soffits.
• Contractor-Grade Installation: Integrated driver inside a connection box simplifies wiring and allows for fast, tool-free setup using attached spring clips.

Technical Specifications

• Energy Used: 7.5W
• Light Output: 500 to 650 lumens (depending on CCT)
• Halogen Equivalent: 50W
• Color Temperature: 2700K, 3000K, 3200K (Dim to Warm), 3500K, 4000K, 5000K, or 5CCT Selectable
• Beam Angle: 38° Standard (15° Spot option available)
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac Dimmable (Standard) or 0-10V Dimmable (Optional)
• Aperture/Dimensions: ID 3 1/4", OD 4 1/4" Square
• Cut-Out: 3 1/4" to 3 1/2"
• Ceiling Clearance: 3 1/2"
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• IP Rating: IP 54
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
