Lotus 3" Round Regressed Gimbal LED 7.5W | LRG3

Overview

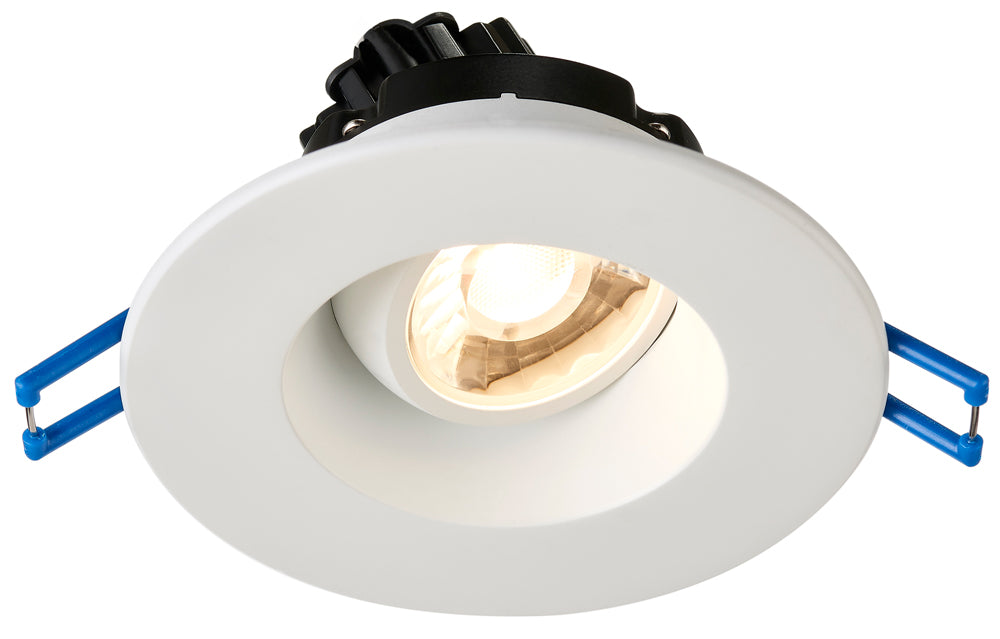

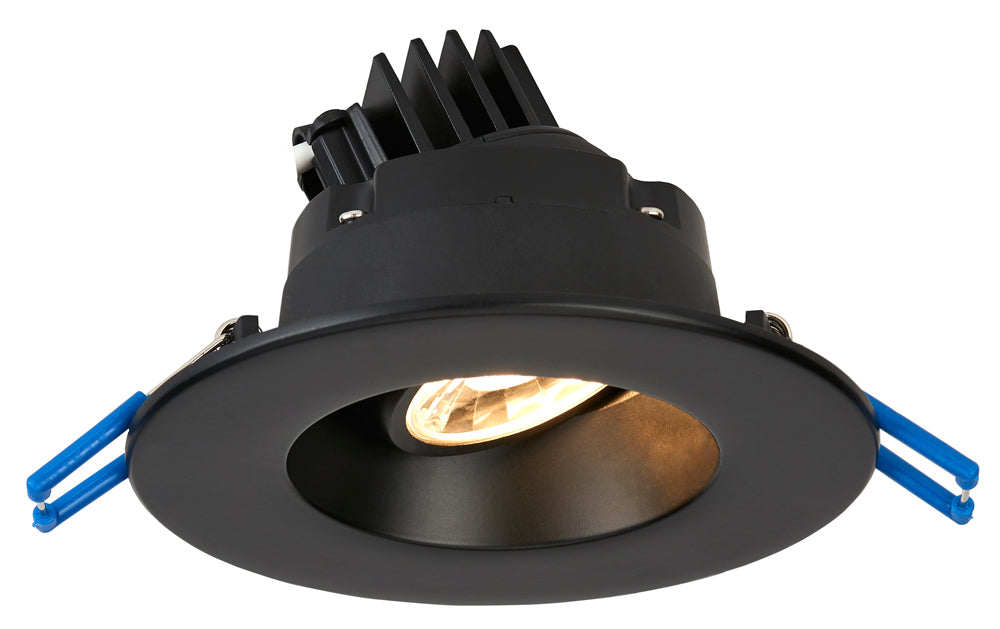

The Lotus LED 3" Round Regressed Gimbal is an architectural-spec recessed lighting solution featuring a 3/4" regressed optic for superior glare reduction. This 7.5W fixture is specifically designed for sloped ceilings and highlighting artwork, offering a directional beam with 20° tilt and 360° rotation. Engineered with a 2 1/2" slim profile, it fits into tight plenum spaces where traditional housing cannot be installed.

Key Features

• IC Rated: Certified for direct contact with insulation, eliminating the requirement for bulky recessed housings.
• Architectural Glare Control: The regressed design provides a clean aesthetic while minimizing visual glare in high-end residential and commercial projects.
• Precision Aiming: Directional eyeball gimbal features a 20° tilt and 360° rotation for perfect light placement on sloped ceilings.
• Wet Location Rated: IP 54 certified and air-tight, making this recessed lighting suitable for showers, bathrooms, and outdoor soffits.
• Contractor-Grade Installation: Dimmable 120V Triac driver is integrated within a connection box, significantly reducing labor and installation time.

Technical Specifications

• Energy Used: 7.5W
• Light Output: 500 to 650 lumens (depending on CCT)
• Halogen Equivalent: 50W
• Color Temperature: 3000K, 3200K (DTW 30-20K), 3500K, 4000K/4100K, 5000K, or 5CCT Selectable
• Beam Angle: 38° standard (15° spot option available)
• Adjustment: 20° tilt and 360° rotation
• CRI: 90+
• Input Voltage: 120V AC (Standard); 120V-347V AC (Optional 0-10V)
• Dimmable: Triac (Standard) or 0-10V (Optional)
• Aperture/Dimensions: 3 1/4" ID, 4 1/4" OD
• Thickness/Depth: 2 1/2"
• Cut-Out: 3 1/4" to 3 1/2"
• Ceiling Clearance: 2 1/2" for Romex; 3 1/2" for MC or BX
• IP Rating: IP 54
• Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certifications: cULus, Energy Star, T24, Type IC, Air-Tight
• Warranty: 10 Year Residential / 5 Year Commercial
