Lotus 2" Square Gimbal Mini Recessed LED 24V 6W | LED-1-S6W-G-SQ
Lotus 2" Square Gimbal Mini Recessed LED 24V 6W | LED-1-S6W-G-SQ
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LED-1-S6W-30K-WH-24V-G
LED-1-S6W-G-SQ | 2" Square Gimbal Mini Recessed LED 24V 6W
The Lotus LED-1-S6W-G-SQ is a compact 2-inch square gimbal mini recessed LED fixture designed for displays, cabinets, mini recessed lighting, soffits, and low-voltage accent applications. Its small square aperture and adjustable gimbal design make it a strong choice where precise light placement is needed in tight spaces.
Operating on 24V AC/DC, this 6W mini recessed fixture delivers 480 lumens at 3000K with CRI 90+ color quality and a standard 38° beam angle. The fixture includes a 10° tilt angle, die-cast aluminum housing, and an internal terminal block, allowing low-voltage daisy-chain installation without a junction box at the fixture location.
Why this fixture sells
- Square mini gimbal design: compact 2" format with directional 10° tilt
- Low-voltage 24V input: works with compatible remote Class 2 power supplies or solar inverter systems
- High-output small aperture: 480 lumens while using only 6W
- High color accuracy: CRI 90+ for clean, accurate light quality
- 35W halogen equivalent: efficient LED replacement for small accent fixtures
- Internal terminal block: no junction box required at the fixture
- Type IC rated: no recessed housing required
- Damp location approved: suitable for insulated ceilings and damp-location applications
- Limited-space friendly: 3 1/8" fixture depth for compact installations
- White and black trim options: stocked finishes for different design requirements
Recommended applications
- Display lighting
- Cabinet lighting
- Mini recessed accent lighting
- Soffits
- Solar-powered lighting systems with compatible inverter
- Millwork and built-in lighting
- Small aperture task lighting
- Residential and light commercial accent lighting
Key specifications
| Model Family | LED-1-S6W-G-SQ |
|---|---|
| Fixture Type | 2" Square Gimbal Mini Recessed LED 24V AC/DC |
| Applications | Displays, cabinets, mini recessed, soffits, solar |
| Power | 6 W |
| Color Temperature | 3000K |
| Light Output | 480 lm |
| Halogen Equivalent | 35 W |
| Tilt Angle | 10° |
| Beam Angle | 38° standard; 24° available as adder |
| CRI | 90+ |
| Fixture Input | 24V AC / DC |
| Dimming | Dimmable with external 24V drivers |
| Approved Location | Insulated Ceiling & Damp Locations |
| Air Tight | No |
| Type IC Rated | Yes, no housing required |
| Ambient Temperature | -4°F (-20°C) to +104°F (+40°C) |
| Projected Life | 70% light output at 50,000 hours |
| Dimensions | 2 3/8" ID, 2 5/8" square OD, 3 1/8" depth |
| Cut Out | 2 3/8" |
| Mounting Surface Thickness | 1/8" to 1 1/2" |
| Certification | cETLus |
| Warranty | 3 Year when installed with a Lotus LED Lights driver |
Available models

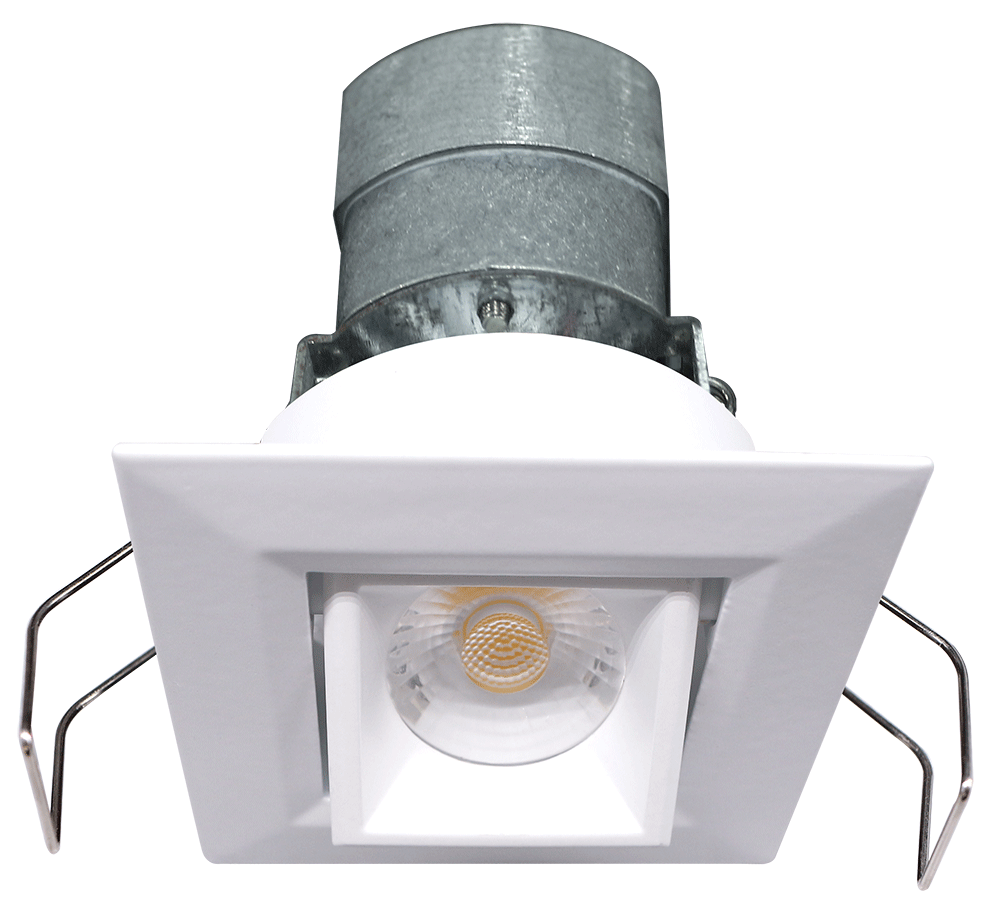

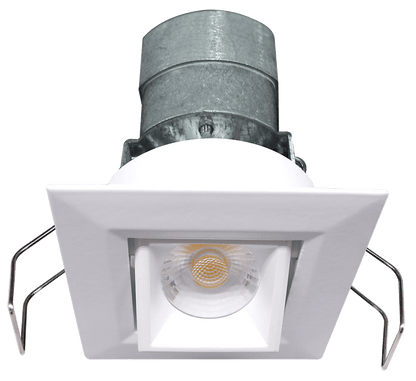

- LED-1-S6W-30K-WH-24V-G-SQ: 3000K, White trim, 38° standard beam

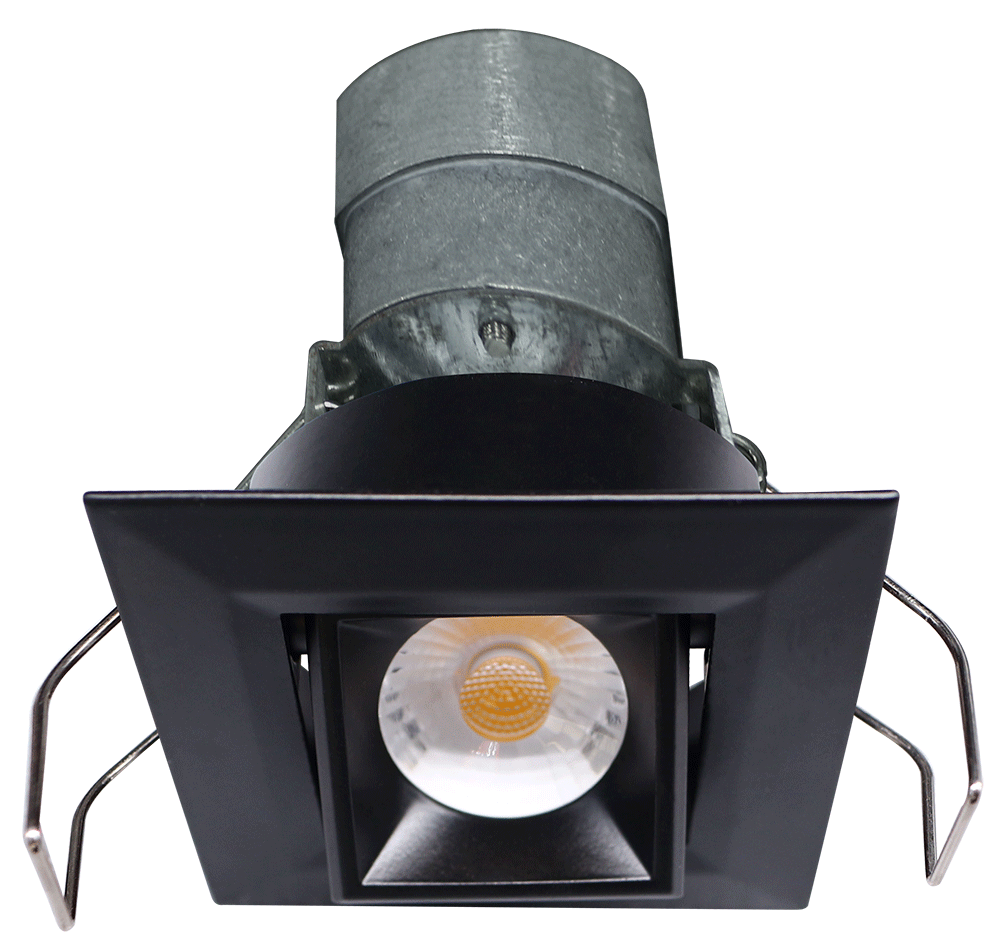

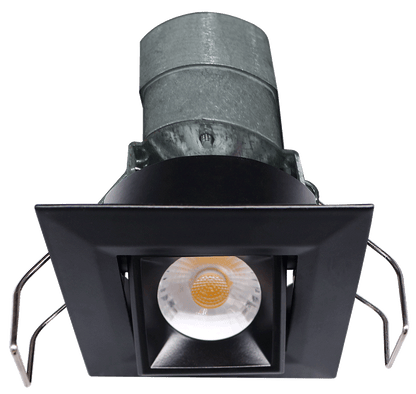

- LED-1-S6W-30K-BK-24V-G-SQ: 3000K, Black trim, 38° standard beam
Beam angle note
The standard beam angle is 38°. The spec sheet notes that 24° is available as an adder using the -24D ordering option. If stocking the 24° version, create a separate product page or separate SKU structure so the beam angle metafield remains accurate.
Driver and installation notes
- Designed for low-voltage daisy-chain installation.
- Connect to a compatible remote mounted Class 2 power supply or solar inverter.
- Dimming is handled through compatible external 24V drivers.
- Internal terminal block means no junction box is required at the fixture location.
- Type IC rated with no recessed housing required.
- Approved for insulated ceilings and damp locations.
- Warranty is void if installed with an LED driver from another manufacturer.
- 2" square gimbal mini recessed LED fixture
- 24V AC/DC input
- 6W power consumption with 35W halogen equivalent
- 3000K warm white output
- 480 lumens with CRI 90+
- 10° tilt angle for directional aiming
- 38° standard beam angle; 24° optional adder
- Type IC and damp location approved
- No recessed housing required
- Dimmable with compatible external 24V drivers
Frequently Asked Questions
What is the Lotus LED-1-S6W-G-SQ?
The LED-1-S6W-G-SQ is a 2-inch square gimbal mini recessed 24V AC/DC LED fixture designed for displays, cabinets, mini recessed applications, soffits, and compatible solar installations.
What voltage does this fixture use?
The fixture input is 24V AC/DC. It is designed to connect to a compatible remote mounted Class 2 power supply or solar inverter.
Is this fixture adjustable?
Yes. The square gimbal design provides a 10° tilt angle for directional aiming.
Is the LED-1-S6W-G-SQ dimmable?
Yes. It is dimmable with compatible external 24V drivers. Dimming performance depends on the selected driver and control setup.
Does this fixture require a junction box?
No. The fixture includes an internal terminal block, so no junction box is required at the fixture location.
Does this fixture require a recessed housing?
No. The LED-1-S6W-G-SQ is Type IC rated and does not require a recessed housing.
What is the standard beam angle?
The standard beam angle is 38°. A 24° beam angle is available as an adder using the -24D ordering option.
Can it be used in damp locations?
Yes. The spec sheet lists the LED-1-S6W-G-SQ as approved for insulated ceilings and damp locations.
Is this fixture air-tight?
No. The spec sheet lists the LED-1-S6W-G-SQ as not air-tight.
