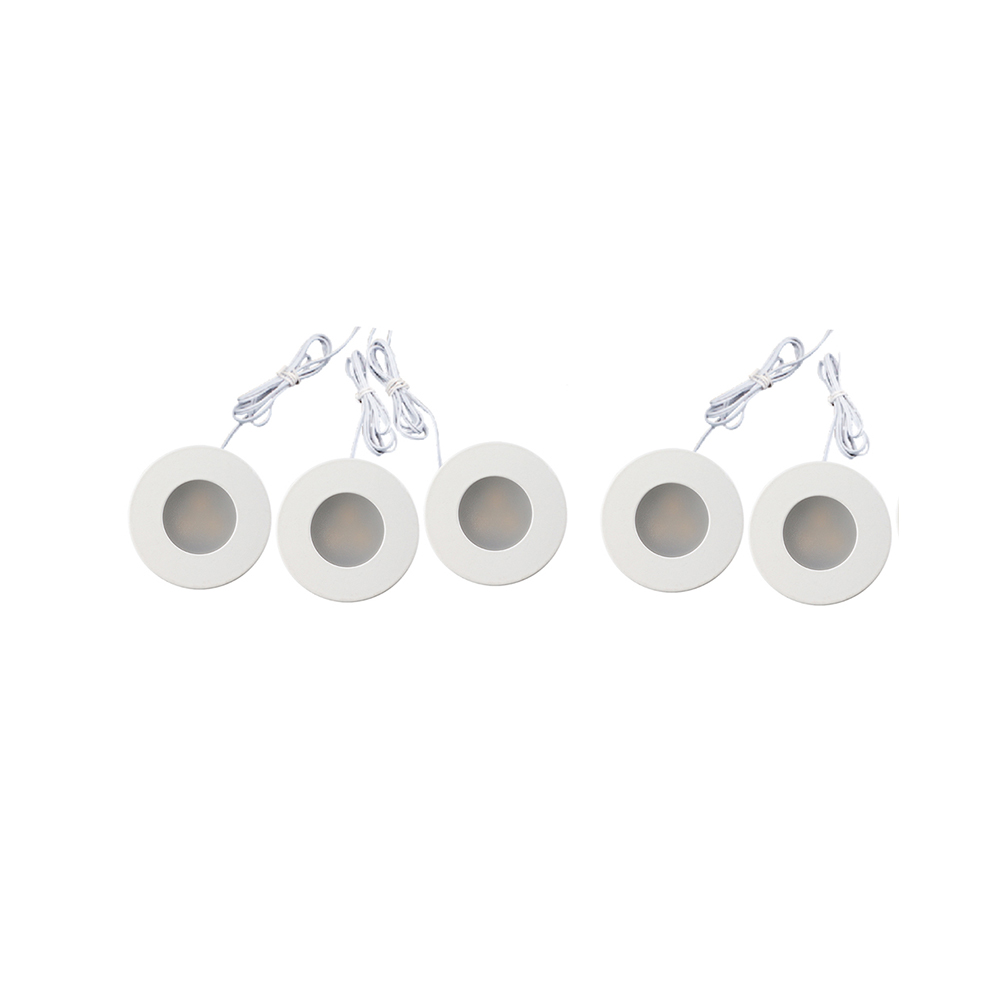

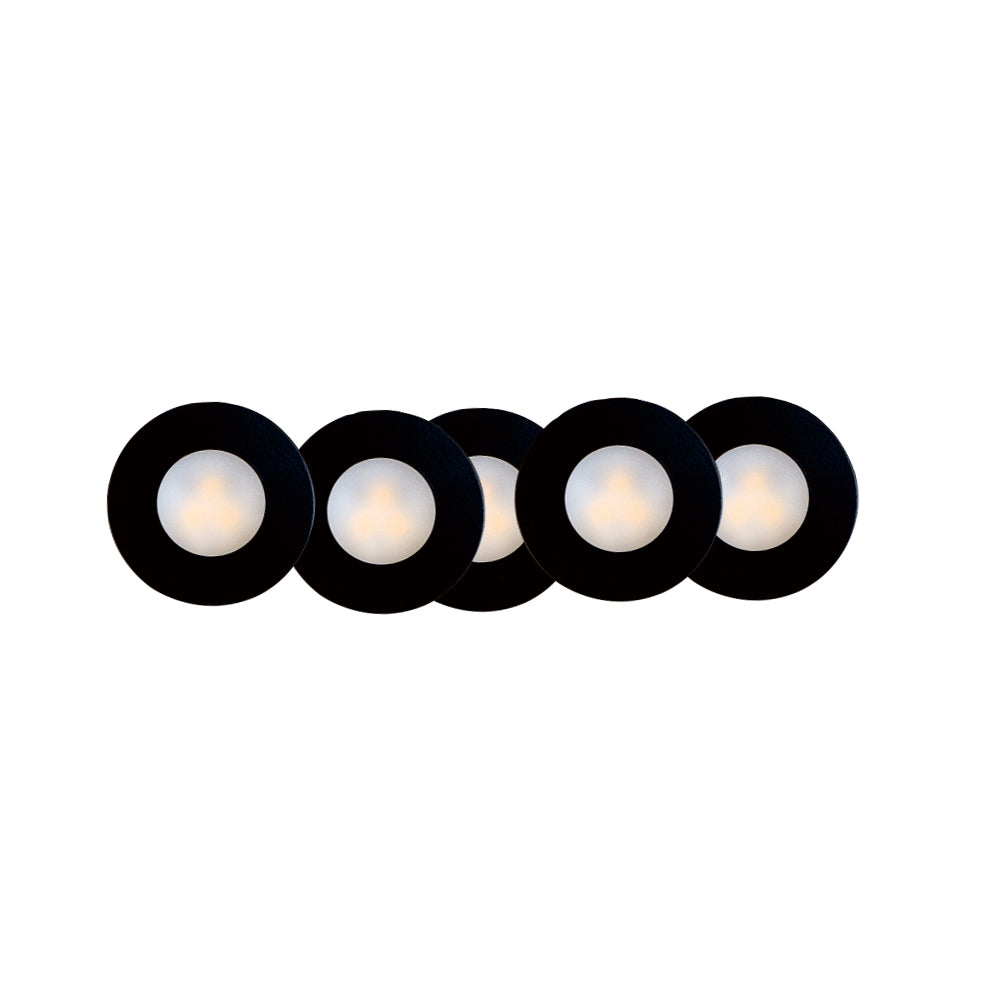

Lotus 1" Round Mini Puck Light 5-Pack - 1W 12V DC 3000K 70lm 90+ CRI | 5P-AD108-3K

Overview

The Lotus LED AD-108 is an architectural-spec 1-inch mini puck light designed for precision recessed lighting in cabinetry, luxury displays, and specialized millwork. This ultra-compact 12V DC fixture features a durable die-cast aluminum housing and is ideal for low-voltage applications, including high-end soffits, RV interiors, and off-grid solar projects.

Key Features

• Ultra-low profile design with only 5/8" depth for installation in restricted millwork or shallow soffit spaces.
• Contractor-grade 90+ CRI ensures high-fidelity color rendering for high-end retail and accent lighting applications.
• Versatile 12V DC input allows for seamless integration with remote class 2 power supplies or solar inverters.
• Dimmable functionality when paired with compatible external 12V drivers for precise atmosphere control.
• Easily daisy-chained low-voltage system allows for the connection of up to 20 fixtures to a single driver.

Technical Specifications

• Energy Used: 1W
• Light Output: 70 lm – 80 lm
• Halogen Equivalent: 5W
• Beam Angle: 100°
• CRI: 90+
• Input: 12V DC
• Dimming: Dimmable with external 12V drivers
• Approved Location: Damp Locations
• Air Tight: Yes
• Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
• Projected Life: 70% light output at 50,000 hours
• Certification: cETLus
• Warranty: 3 Year
• Aperture ID: 1"
• Trim OD: 1 5/16"
• Cut Out: 1 1/16"
• Depth: 5/8"
