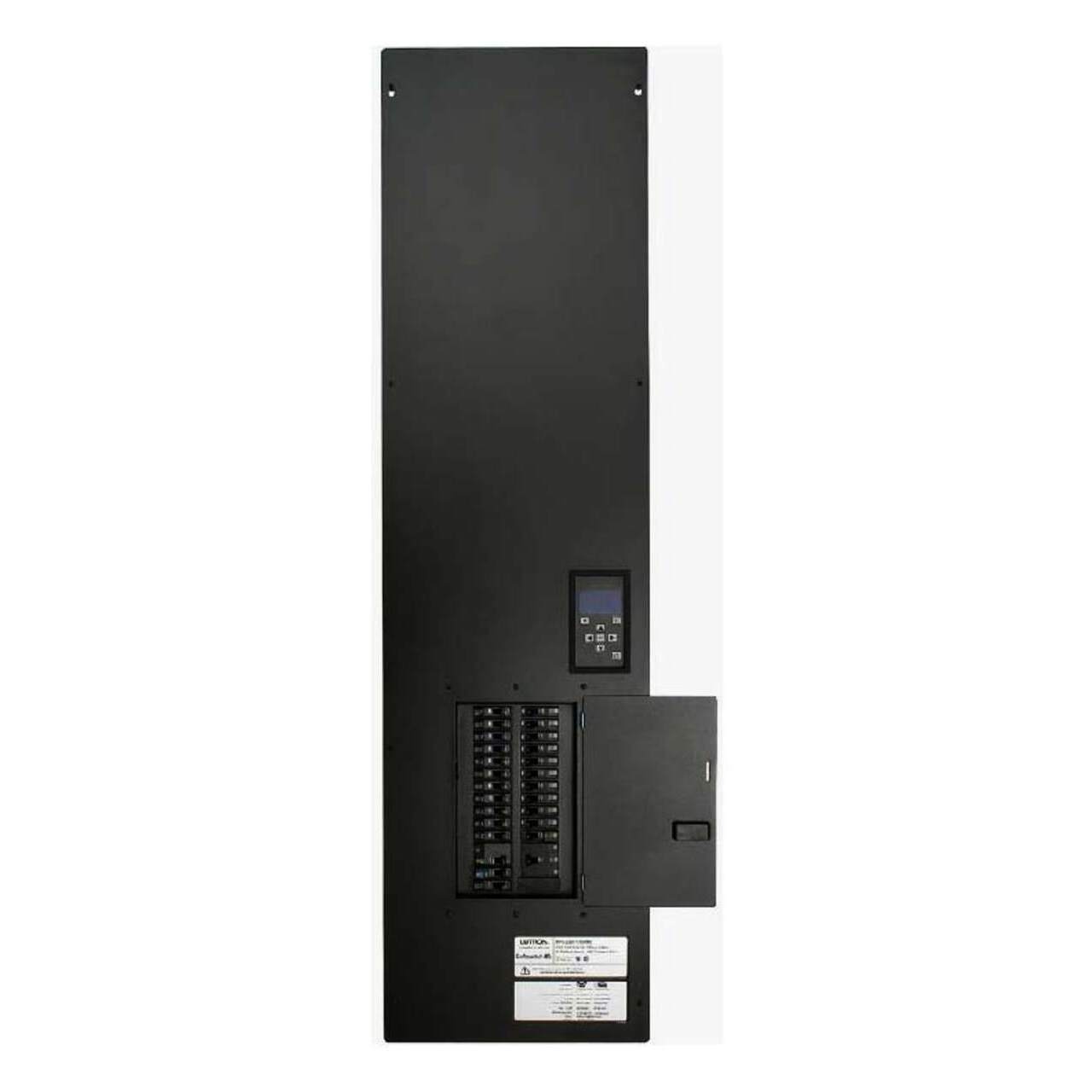

Lutron XPS16-FT Softswitch 128 16-Relay Feed-Through Power Panel
The Lutron XPS16-FT is a rugged, high-performance switching system designed for demanding commercial and industrial environments. As part of the Softswitch 128 series, this power panel provides centralized control for up to 16 circuits of lighting and motor loads. Its feed-through design simplifies installation in new or retrofit projects, while the NEMA 1 enclosure ensures durability in indoor applications.
The standout feature of this panel is Lutron’s patented Softswitch technology. By using a specialized relay circuit that prevents arcing at the mechanical contacts, this panel can withstand the high-inrush current of modern LED and HID loads, extending the life of the relays to an incredible 1,000,000 cycles. Whether you are managing a stadium, school, or office complex, the XPS16-FT delivers unmatched reliability.
Key Features
- Softswitch Technology: Patented arcless switching prevents relay contact degradation, ensuring a long product lifespan (avg. 1,000,000 cycles).
- 16-Relay Capacity: Manage 16 independent circuits from a single, centralized location.
- Multi-Voltage Support: Compatible with 120V, 277V, and 347V applications for maximum site flexibility.
- Feed-Through Design: Streamlined wiring for faster installation and easier maintenance.
- Heavy-Duty Construction: Built with 16-gauge steel for professional-grade protection and durability.
- Versatile Load Support: Handles Incandescent, HID, LED, Neon/Cold Cathode, and motor loads up to 1/2 HP.
Technical Specifications
| Attribute | Details |
|---|---|
| SKU / Part Number | XPS16-FT |
| Circuits / Relays | 16 Circuits |
| Output Voltage | 120V / 277V / 347V AC |
| Current Rating | 16A (per relay) |
| Enclosure Type | NEMA 1, IP20 (16 Gauge Steel) |
| Dimensions | 15.88" W x 59.5" H x 4.25" D |
| Mounting | Surface or Recess Mount |
| Motor Rating | 1/3 HP @ 120V, 1/2 HP @ 277/347V |
| Certifications | UL, CSA, CE, NOM |
Included in the Box
- (1) Softswitch 128 XPS16-FT Power Panel Enclosure
- (1) Pre-assembled 16-Relay Switching Module
- (1) Installation & Wiring Guide
