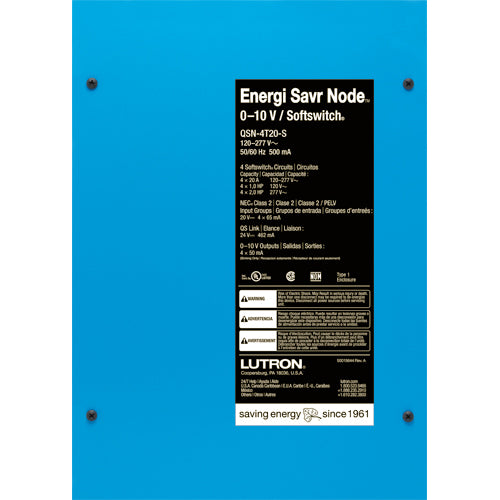

Lutron QSN-4T20-S Energi Savr Node 4-Zone 20A 0-10V Controller

The Lutron QSN-4T20-S is a high-capacity fixture controller designed to provide centralized dimming and switching for $0-10V$ compatible lighting. Featuring four independent zones, each capable of switching a full 20A load, this Energi Savr Node (ESN) is the ideal solution for commercial spaces utilizing LED or fluorescent fixtures that require a $0-10V$ control signal.

This controller is engineered for maximum reliability, utilizing Lutron’s patented Softswitch technology to prevent relay contact degradation. This ensures a product lifespan of 1,000,000 cycles, even when handling the high inrush currents typical of modern LED drivers. With integrated inputs for occupancy sensors, daylight sensors, and IR receivers, the QSN-4T20-S facilitates effortless energy code compliance and sophisticated automation.

Key Features

• 4-Zone 0-10V Control: Provides independent dimming and switching for up to four zones of $0-10V$ fixtures.
• Softswitch Technology: Arcless switching protects internal relays for a 1-million-cycle lifespan under full 20A loads.
• Direct Sensor Inputs: Features 4 occupancy sensor inputs, 4 daylight sensor inputs, and 4 IR receiver inputs for localized, autonomous control.
• Class 2 Integration: Includes 4 inputs for NEC Class 2 dry-contact switches to trigger manual overrides or lighting scenes.
• Universal Voltage: Compatible with 120V through 277V AC systems, supporting a wide range of commercial applications.
• System Scalability: Seamlessly integrates with Lutron’s centralized management systems like Quantum and Athena via the QS Link.

Technical Specifications

Included in the Box

• (1) Energi Savr Node 4-Zone 20A 0-10V Controller (QSN-4T20-S)
• (1) Steel Surface-Mount Enclosure with Cover
• (1) Installation & Wiring Instructions
