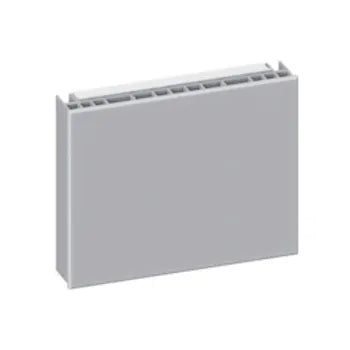

Lutron PHPM-WBX-120-WH 16A Phase-Adaptive Power Module (3-Wire Input)

The Lutron PHPM-WBX-120-WH is a heavy-duty power interface designed to bridge the gap between architectural 3-wire control signals and high-wattage lighting loads. As a Phase-Adaptive module, it intelligently monitors the connected load and automatically selects either leading-edge (forward-phase) or trailing-edge (reverse-phase) dimming. This ensures flicker-free performance and silent operation for Electronic Low Voltage (ELV), Magnetic Low Voltage (MLV), and Halogen lighting.

This "WBX" model is specifically engineered to accept a 3-wire fluorescent dimmer input. This makes it the ideal capacity-booster for Lutron GRAFIK Eye QS systems or HomeWorks panels that utilize 3-wire control. With a full 16A rating, it can easily manage large lighting arrays that would otherwise overload a standard wallstation or control zone.

Key Features

• Phase-Adaptive Intelligence: Automatically detects load type and selects the optimal dimming method (Leading or Trailing edge).
• 16A High-Capacity: Boosts the capacity of a single zone to manage up to 16 Amps of lighting load.
• Broad Load Compatibility: Supports Incandescent, Halogen, Electronic Low Voltage (ELV), Magnetic Low Voltage (MLV), and Neon/Cold Cathode.
• 3-Wire Control Input: Designed for use with Lutron 3-wire fluorescent dimmer signals (Dimmed Hot, Switched Hot, and Neutral).
• Scalable Integration: A single 3-wire dimmer can control up to three modules (48A total) for massive lighting applications.
• 0-10V Capability: Can be used in conjunction with a Lutron BCI-0-10 interface for 0-10V dimming applications.

Technical Specifications

Applications

• Expanding GRAFIK Eye QS 3-Wire Zone Capacity
• HomeWorks QS 3-Wire Dimming Interface
• Commercial ELV/MLV Dimming with Centralized Control
• High-Wattage Halogen and Incandescent Displays
