Gigabit PoE Splitter – 5V 4A Output (20W), 802.3af/at Input 44–57V (30W) | POEJK-S524B
Gigabit PoE Splitter – 5V 4A Output (20W), 802.3af/at Input 44–57V (30W) | POEJK-S524B
Ships in 5–7 Days (Western Canada) · 5–7 Days (Eastern Canada)
In stock
Gigabit PoE Splitter – 5V 4A Output (20W), 802.3af/at Input 44–57V | POEJK-S524B

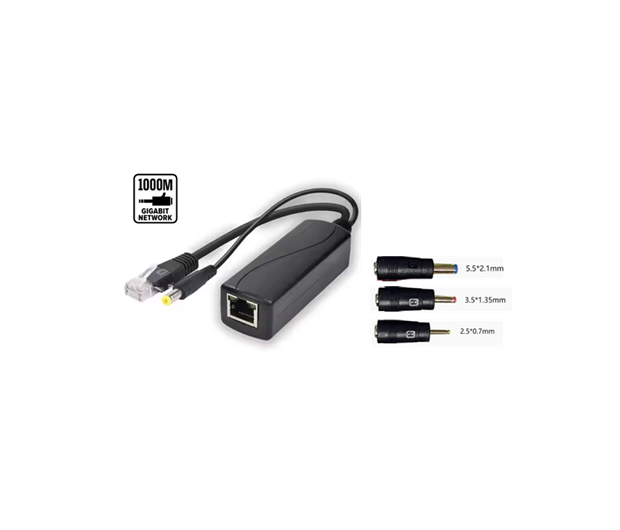

The POEJK-S524B is a Gigabit IEEE 802.3af/at PoE splitter that takes 44–57V PoE input and delivers a regulated 5V, 4A DC output (20W). It’s designed to let you re-use an existing PoE drop to power 5V devices via a DC barrel connector, with included adapters to match common barrel sizes.
Key features
- Gigabit PoE splitter – supports Gigabit Ethernet with PoE power input.
- IEEE 802.3af/at input – PoE/IN: 44–57V (30W).
- 5V DC output – DC/OUT: 5V / 4A (20W).
- Primary connector – DC 5.5 × 2.5 mm barrel connector.
-
Included adapters:
- DC 5.5 × 2.1 mm adapter
- DC 3.5 × 1.35 mm adapter
- DC 2.5 × 0.7 mm adapter
Technical highlights
| Parameter | Value |
|---|---|
| Model | POEJK-S524B |
| Function | Gigabit IEEE802.3af/at PoE splitter |
| PoE input | 44–57V (30W) |
| DC output | 5V / 4A (20W) |
| Ethernet | Gigabit |
| Barrel connector | DC 5.5 × 2.5 mm |
| Included adapters | 5.5 × 2.1 mm; 3.5 × 1.35 mm; 2.5 × 0.7 mm |
Ideal applications
- Using a PoE run to power 5V / 20W class devices that expect a barrel connector input.
- Situations where only Ethernet cabling is present but a small 5V DC load is required.
Electrical values and connector details are taken directly from the GRID Networking catalog and 2025 dealer price list. Specifications are subject to change without notice.
