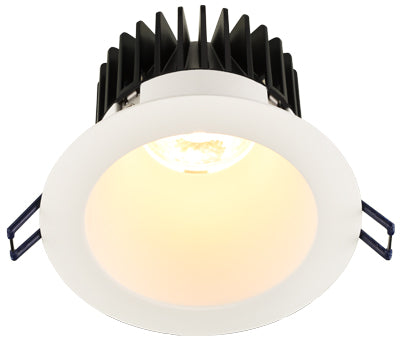

Lotus 4" Round Deep Regressed LED Plenum Rated High Output 18W | LD4R-HO
Lotus 4" Round Deep Regressed LED Plenum Rated High Output 18W | LD4R-HO
Available to order — ships from incoming stock
Typically ships in 1–3 Business Days (Western Canada) · 2–4 Business Days (Eastern Canada)
SKU:LD4R-27K-HO-4R-WR-WT
Shipping terms (Free over $300) calculated at checkout.
Overview
The Lotus LED LD4R-HO is a contractor-grade 4-inch round deep regressed recessed lighting fixture, engineered to provide high-lumen output without glare. Its architectural-spec design is IC Rated and Air-Tight, making it suitable for insulated ceilings and open plenum applications.Key Features
- High-output performance with up to 1690 lumens from a 4-inch aperture.
- Type IC Rated and Air-Tight, eliminating the need for a separate housing.
- Dimmable with 120V AC Triac or optional 120V-347V AC 0-10V systems.
- Deep regressed design for elegant, low-glare aesthetics.
- Wet location and open plenum rated for versatile indoor and outdoor use.
Technical Specifications
- Aperture: 4-inch Round
- Power: 18W
- Input Voltage: 120V AC (Standard) or 120V-347V AC (Optional)
- CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K, DTW 30-20K, DTW 30-18K, or 5CCT Field Selectable
- Lumen Output: 1310 lm to 1690 lm (varies by CCT)
- CRI: 90+
- Beam Angle: 30° (Default), 15° (Optional), or 60° (Optional)
- IP Rating: IP 54
- Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Certification: cULus
- Warranty: 10 Year Residential / 5 Year Commercial
Variant Combinations
To build the specific Model ID, select one option from each category below following the structure: LD4R - [CCT] - HO - [Reflector-Trim] - [Beam Angle].1. Color Temperature (CCT)
- 27K: 2700K
- 30K: 3000K
- 35K: 3500K
- 40K: 4000K
- 50K: 5000K
- 32K: Dim to Warm 3000K to 2000K
- 3018K: Dim to Warm 3000K to 1800K
- 5CCT: User selectable 2700K-3000K-3500K-4000K-5000K
2. Reflector & Trim Finishes
- 4R-WR-WT: White Reflector / White Trim
- 4R-SR-WT: Silver Reflector / White Trim
- 4R-BR-WT: Black Reflector / White Trim
- 4R-BR-BT: Black Reflector / Black Trim
- 4R-SR-BT: Silver Reflector / Black Trim
- 4R-SR-ST: Silver Reflector / Silver Trim
- 4R-ORB: Oil Rubbed Bronze
3. Beam Angle Suffix
- (Blank): 30° Default Beam
- -15D: 15° Narrow Beam
- -60D: 60° Wide Beam
4. Optional Driver
- 120V-347V: Optional 120V-347V AC 0-10V Dimmable Driver
